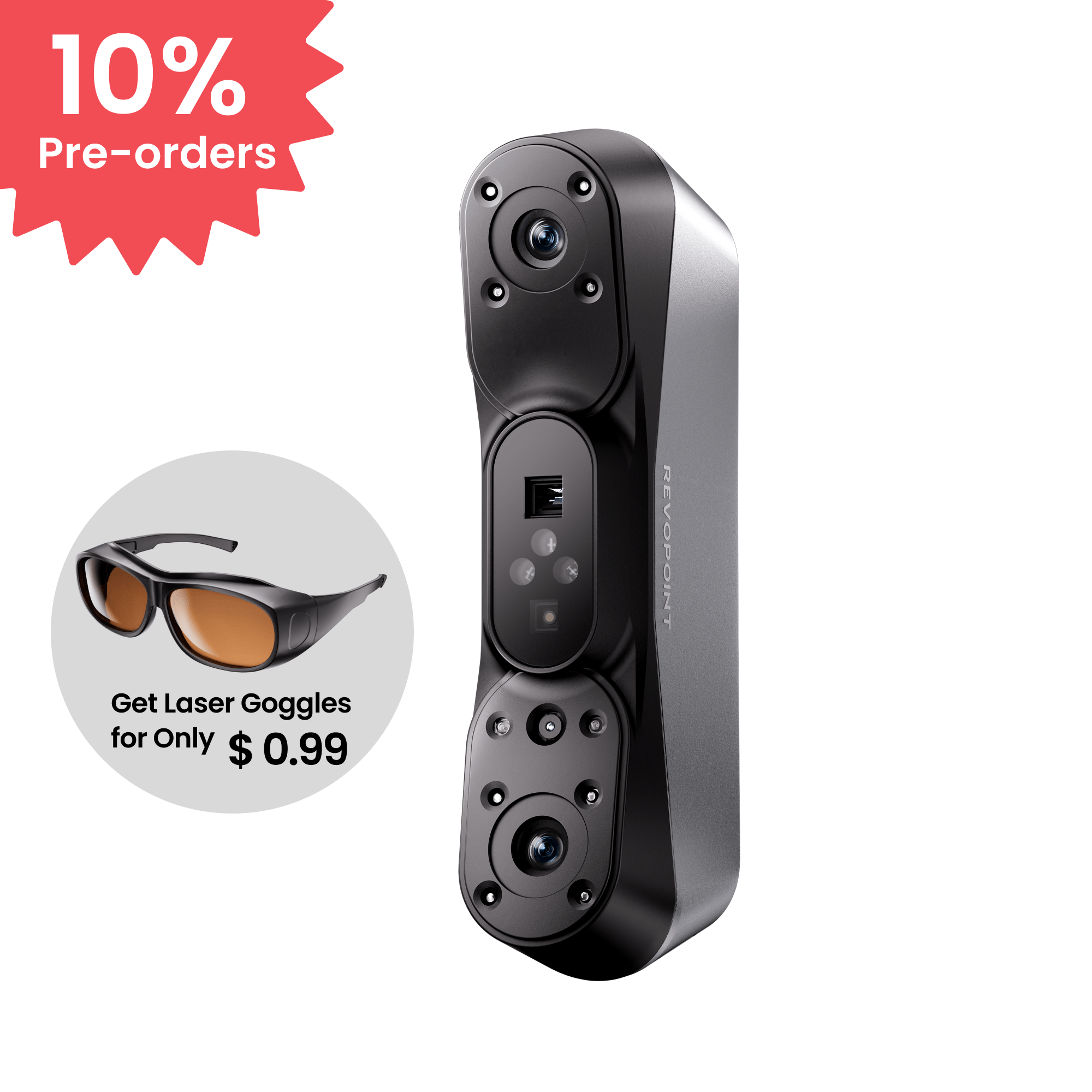

Revopoint POP 4: 5-in-1 Versatile 3D Scanner with Blue Laser & Infrared Light
· High Speed - 30 Cross-lines
· Deep Holes - 1 Line
· Marker-free - Infrared Structured Light
· Full-Field HD Scanning
· Hybrid HD Scanning
· Real-Time AI Object Segmentation & Tracking
· Photo-Realistic 3D Gaussian Splatting
· Volumetric Accuracy: 0.03 mm + 0.05 mm × L (m)
· Fast Laser Scans: Up to 105 fps
· Exceptional Outdoor Scans: Up to 100,000 lux
· No Scanning Spray Needed
Preorder units will ship starting June 22nd. Software is non-refundable, fast digital delivery via email. 📌 Note: Goggles must be returned together with the main product in the event of a refund.

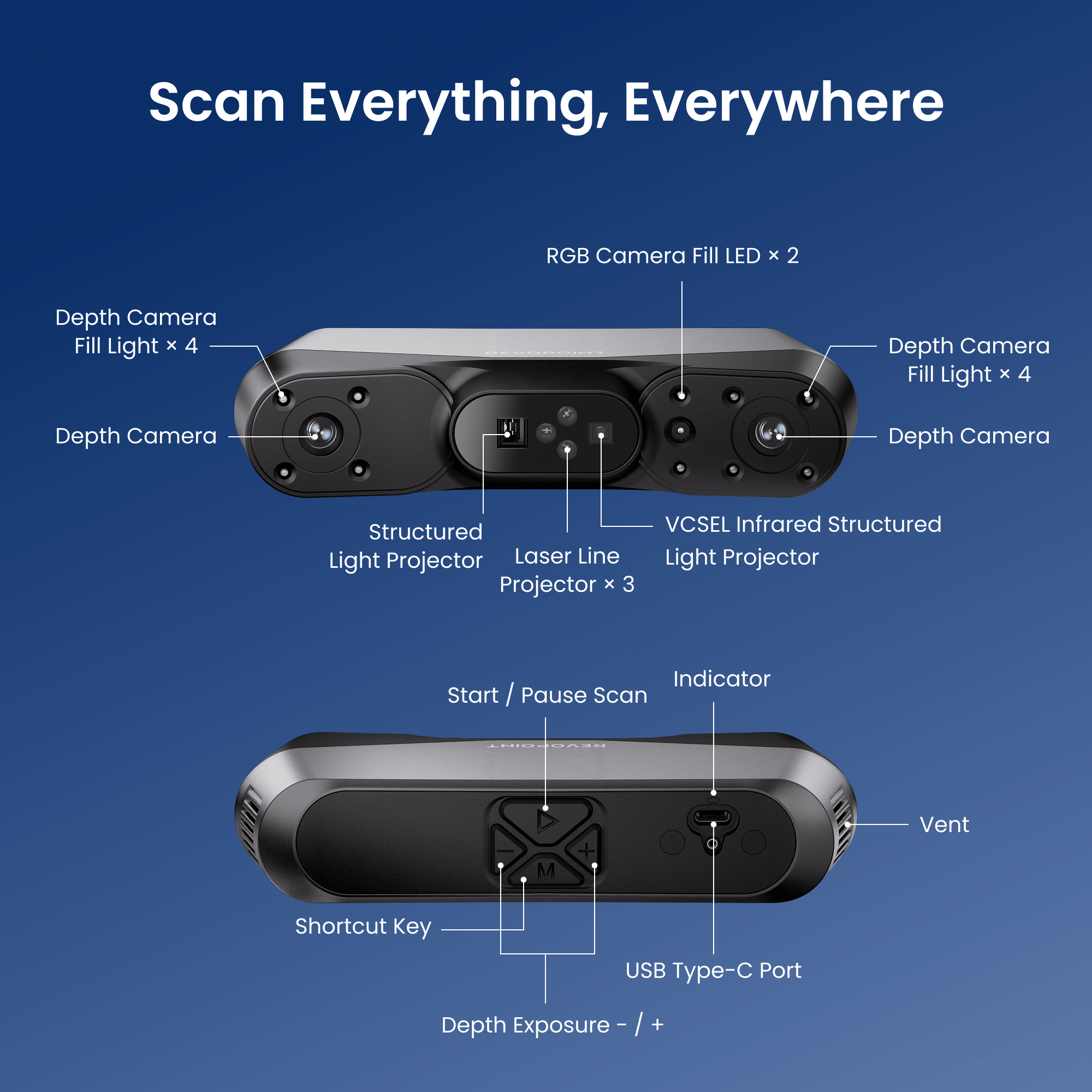

Take a Closer Look
The World's First AI-Powered, High-Precision, and Versatile 3D Scanner

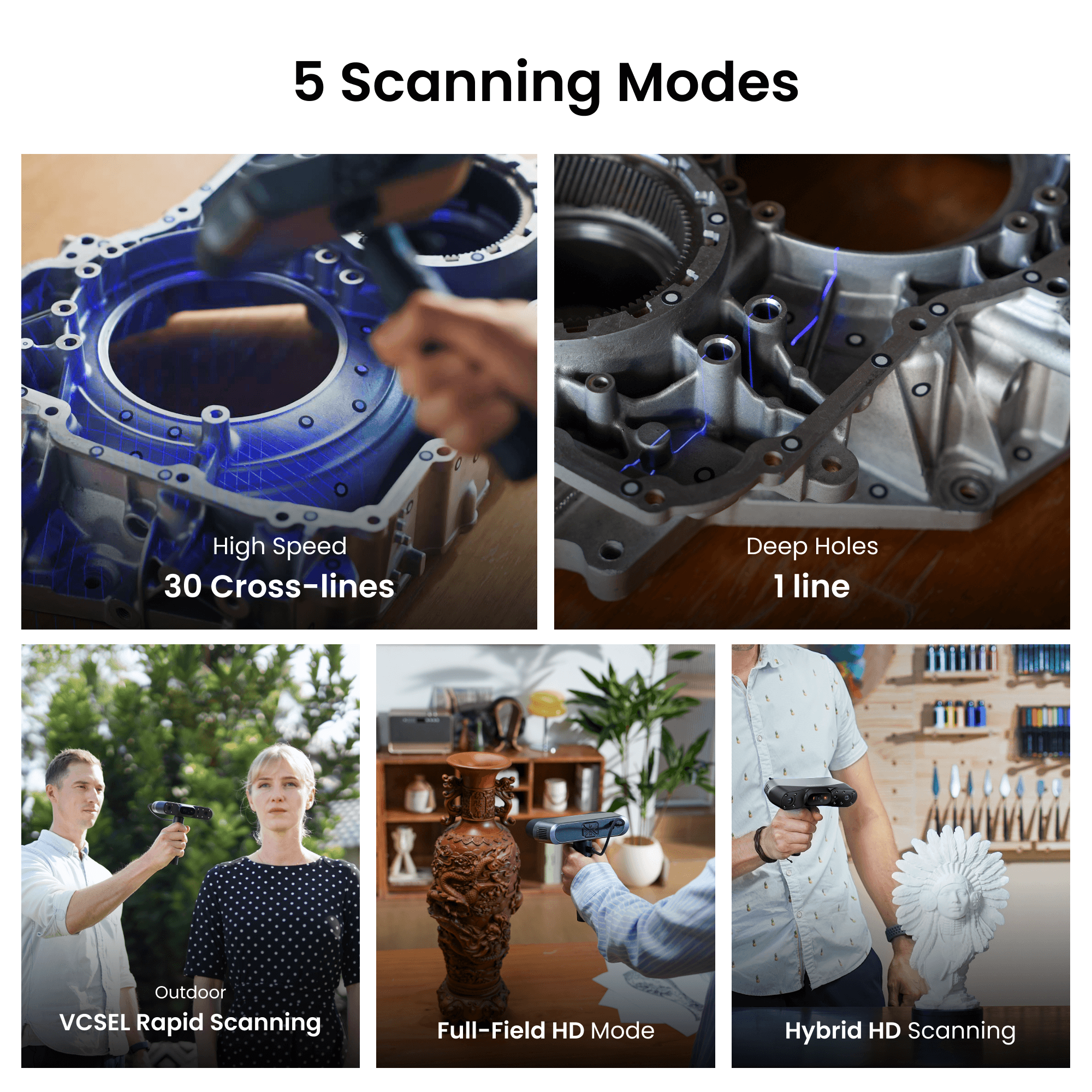

5 Scanning Modes
5 Scanning Modes

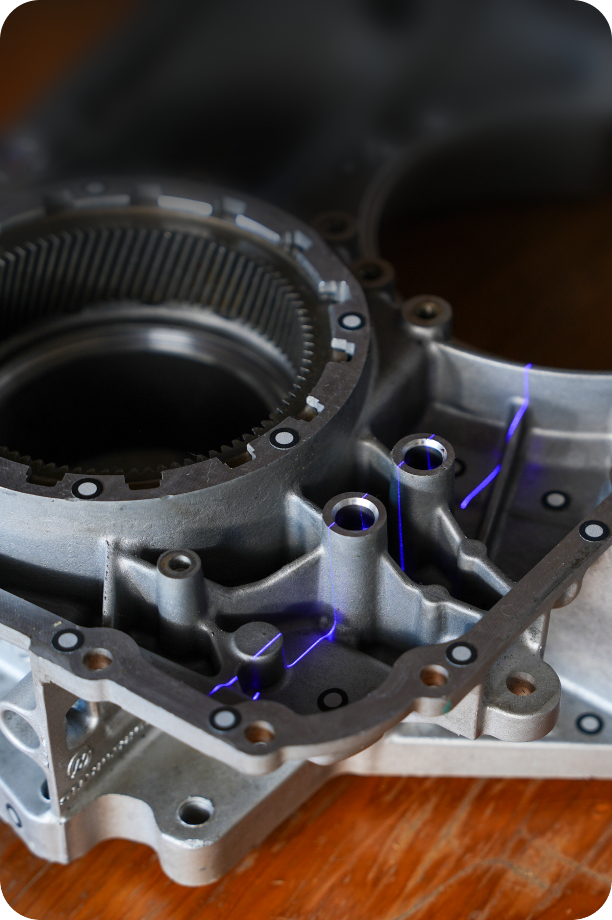

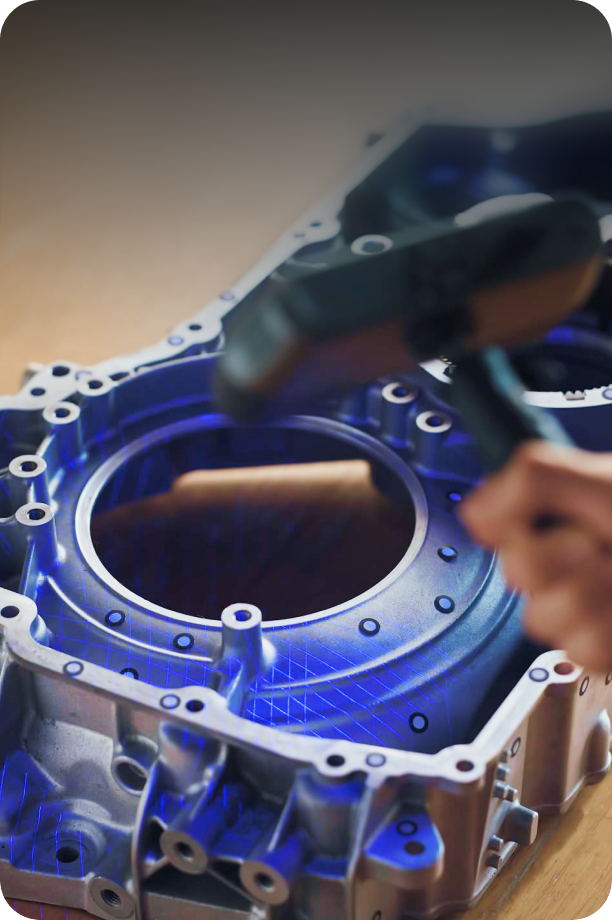

High Speed - 30 Cross-lines
Deep Holes Scanning - Single Line
Outdoors - VCSEL Rapid Scans

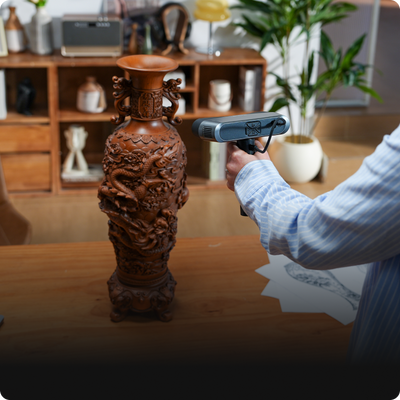

Full-Field HD Mode
Hybrid HD Mode

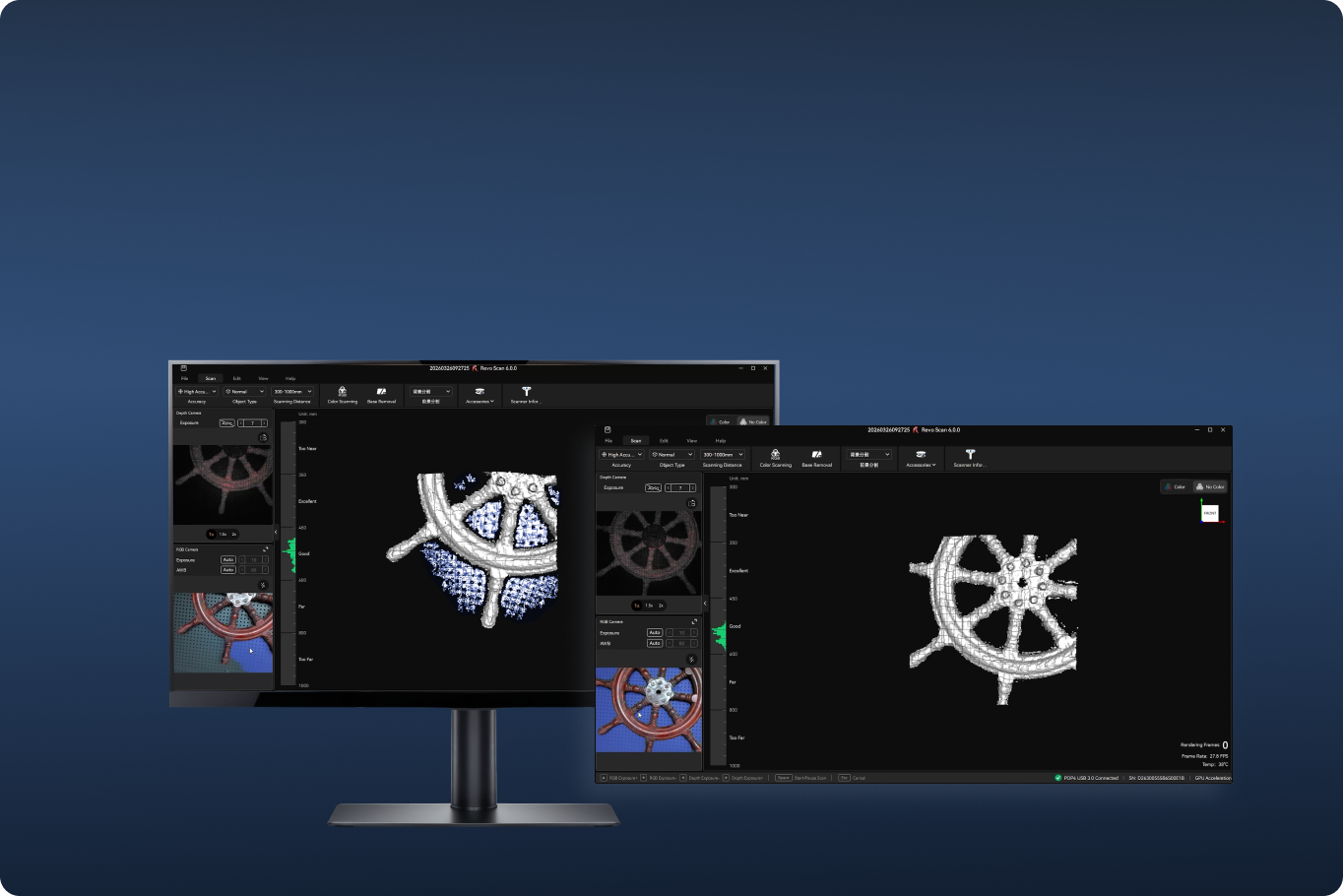

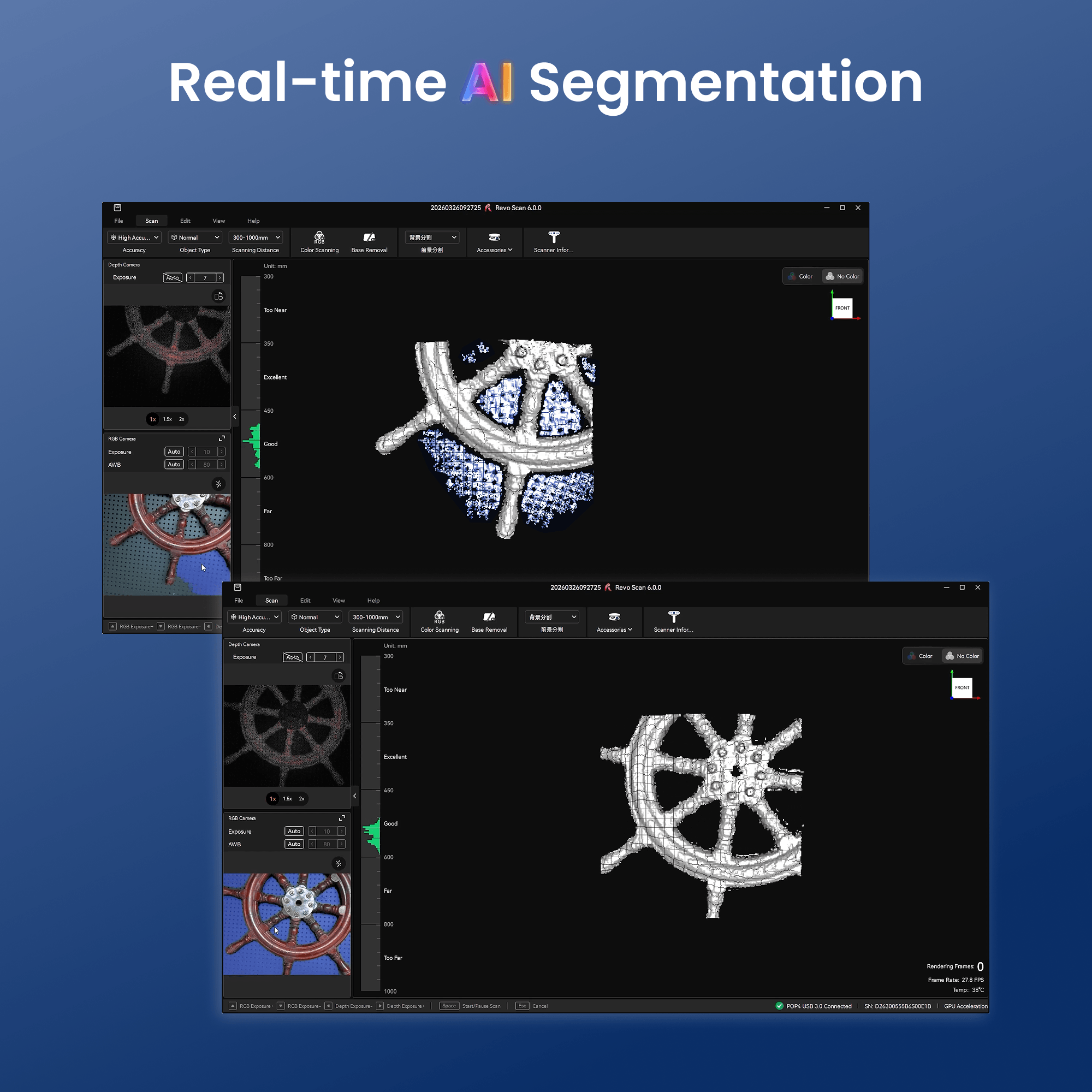

Real-time AI Segmentation

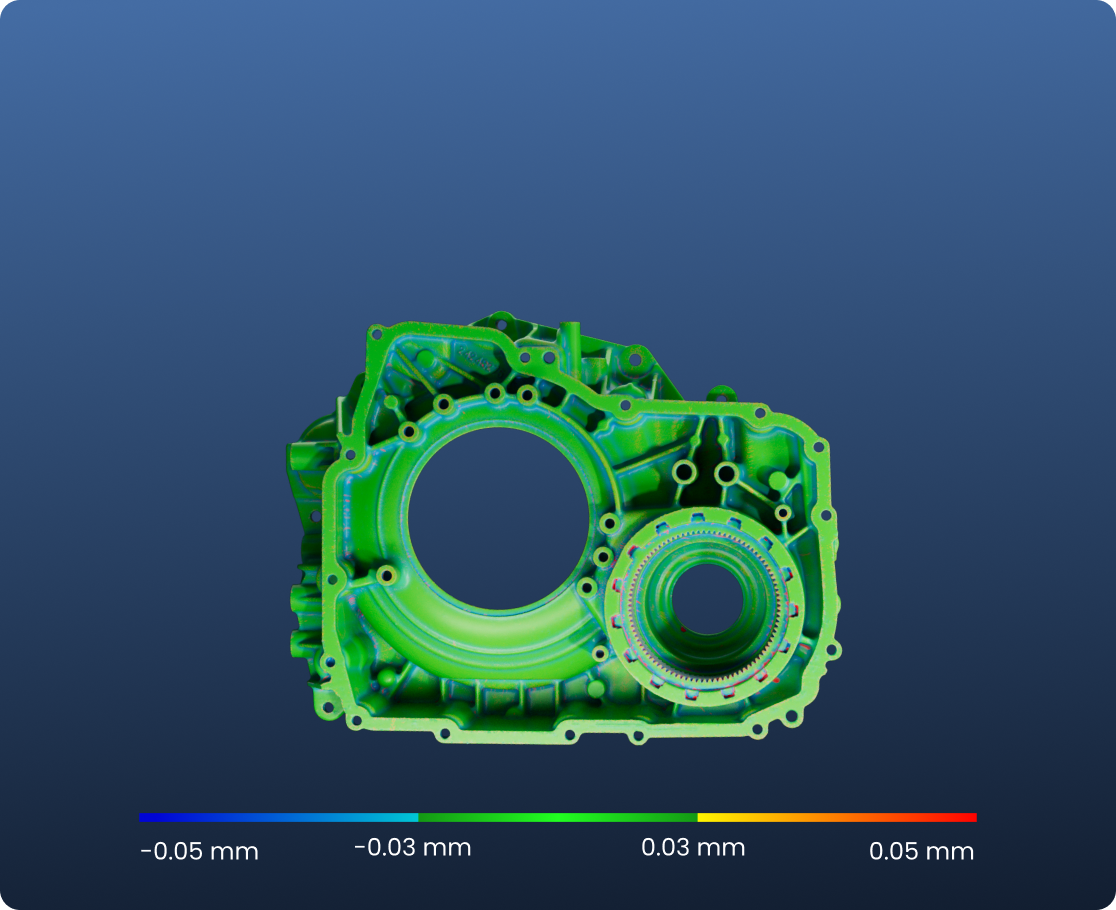

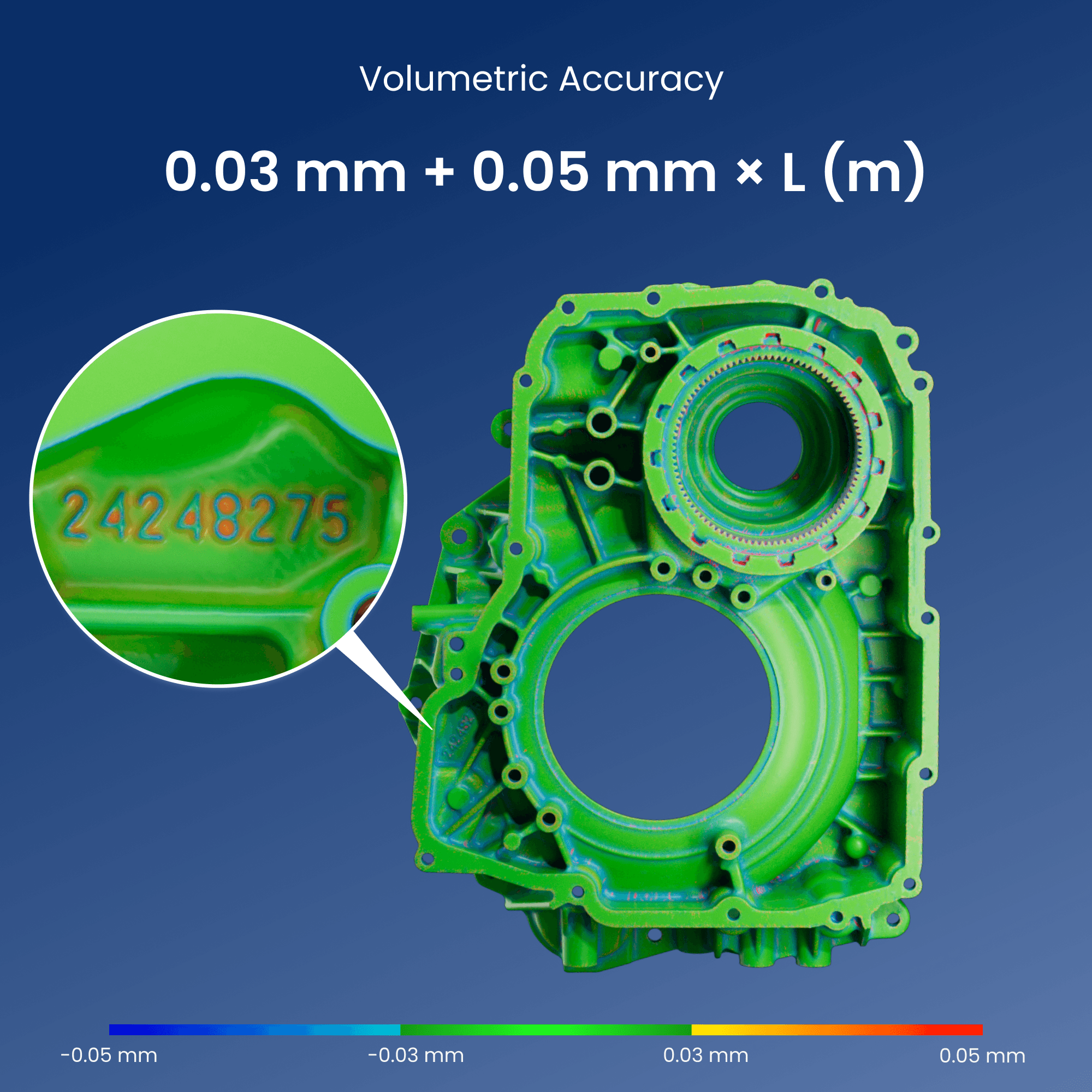

Volumetric Accuracy
0.03 mm + 0.05 mm × L (m)
Beyond Mesh. Capture Reality in 3DGS

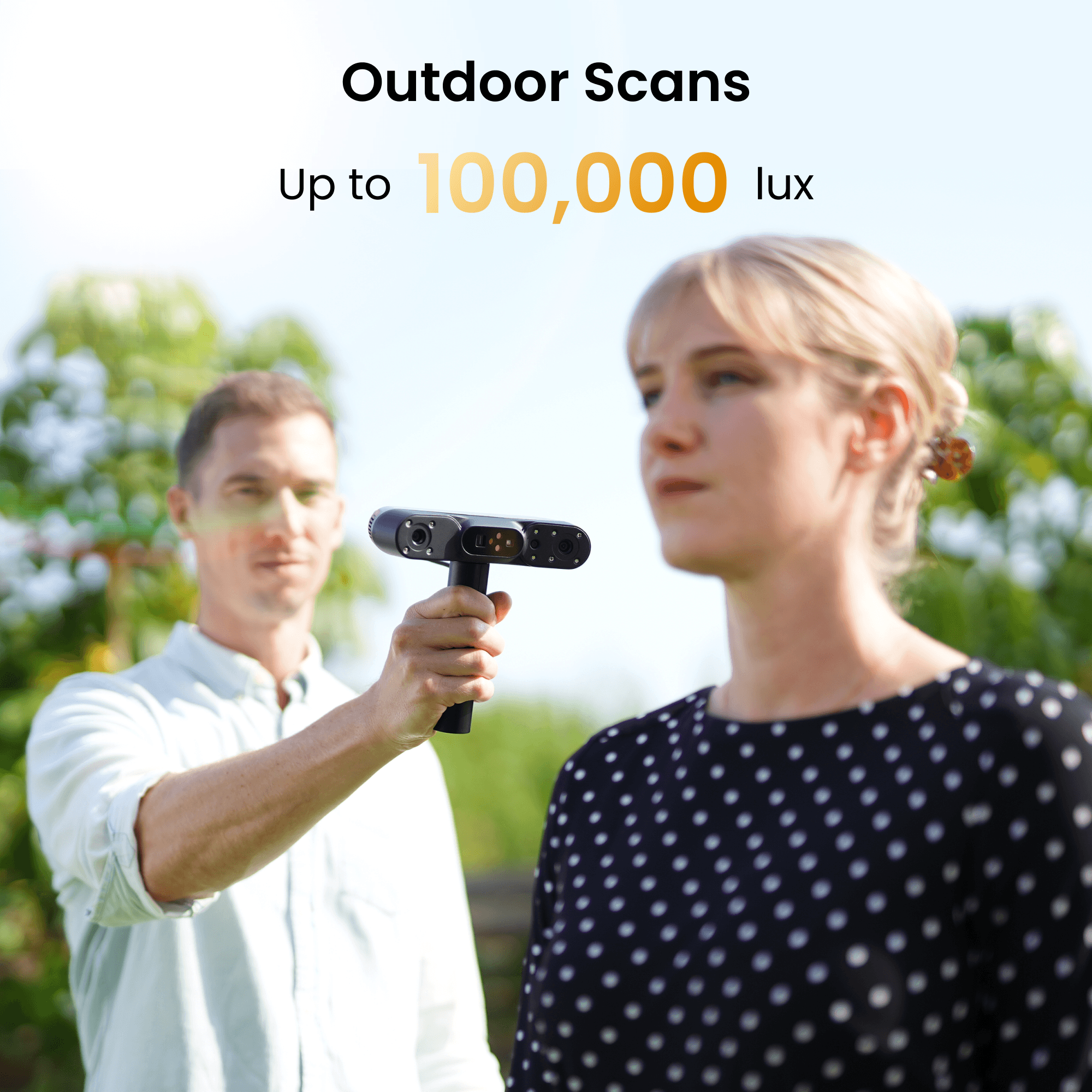

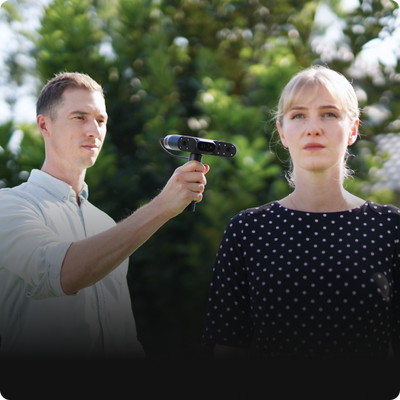

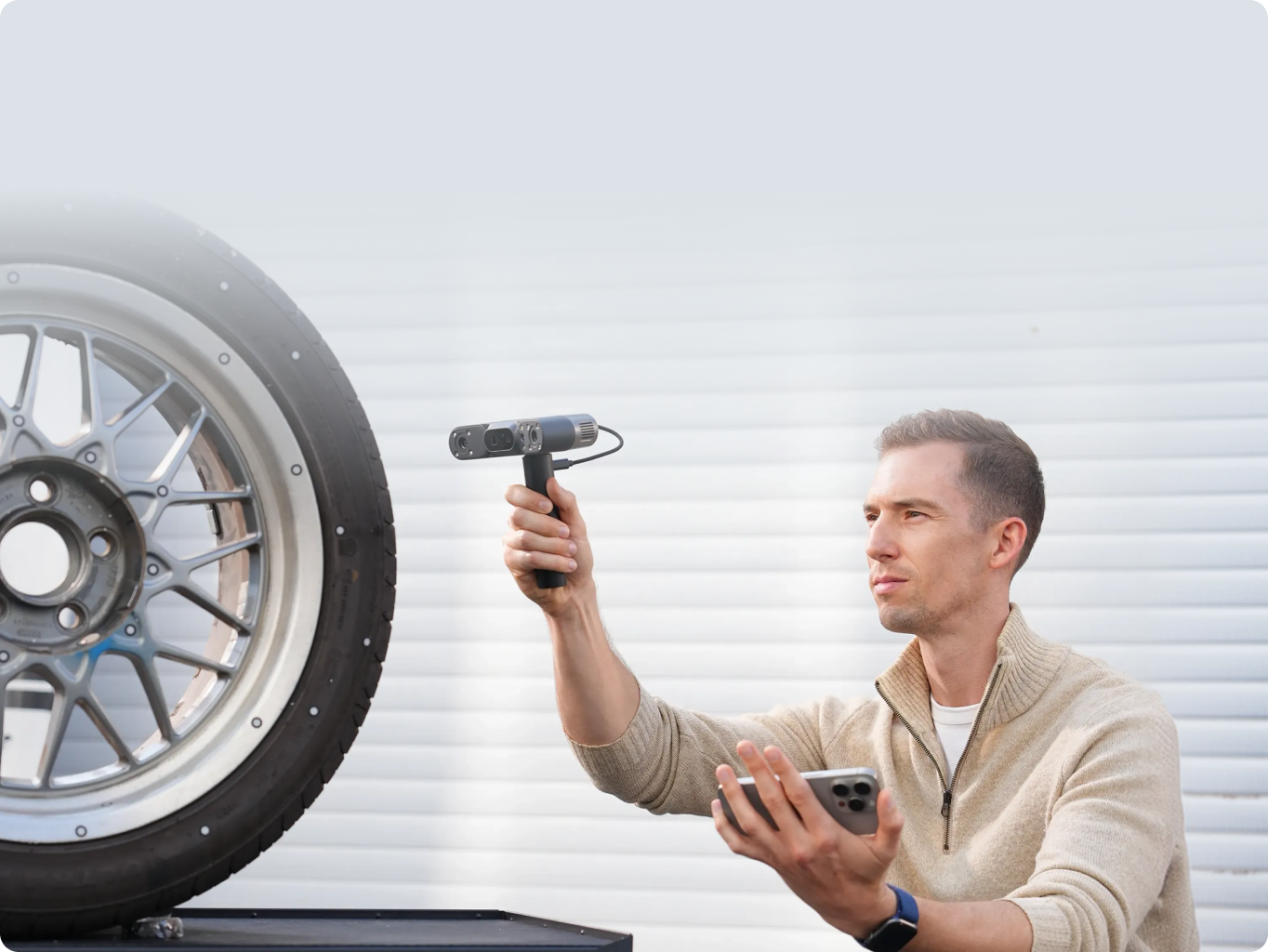

Outdoor Scanning

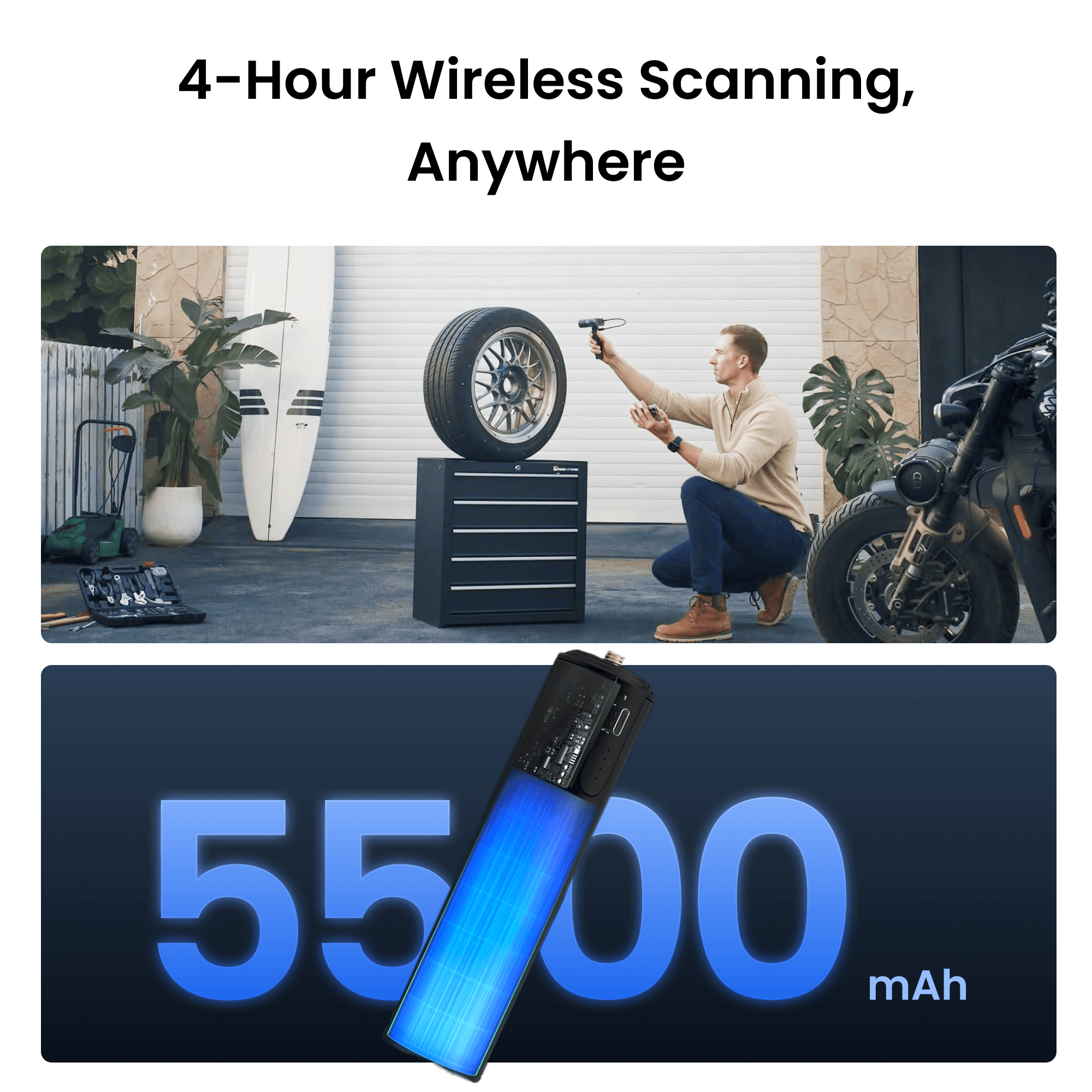

Unleash 4 Hours of Continuous Scanning Anywhere

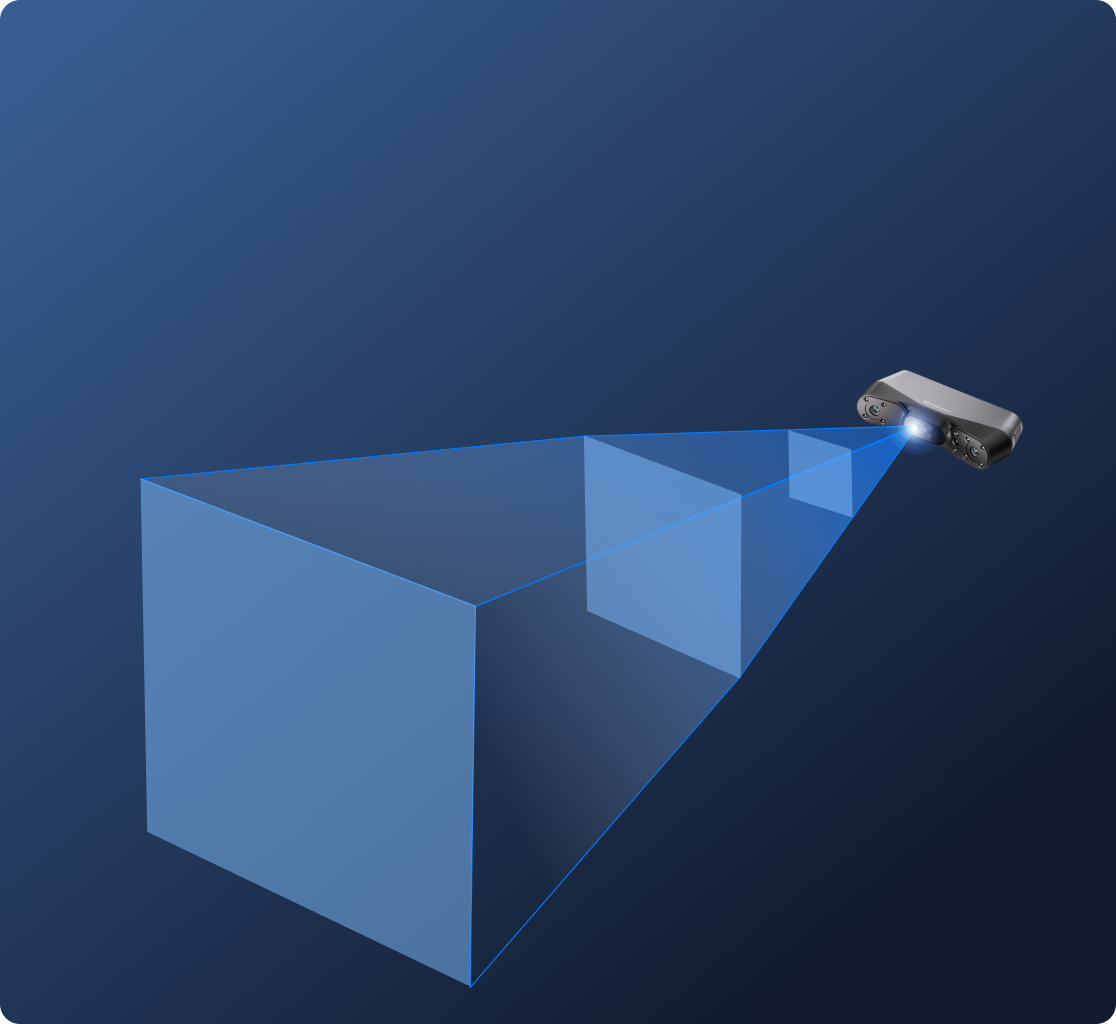

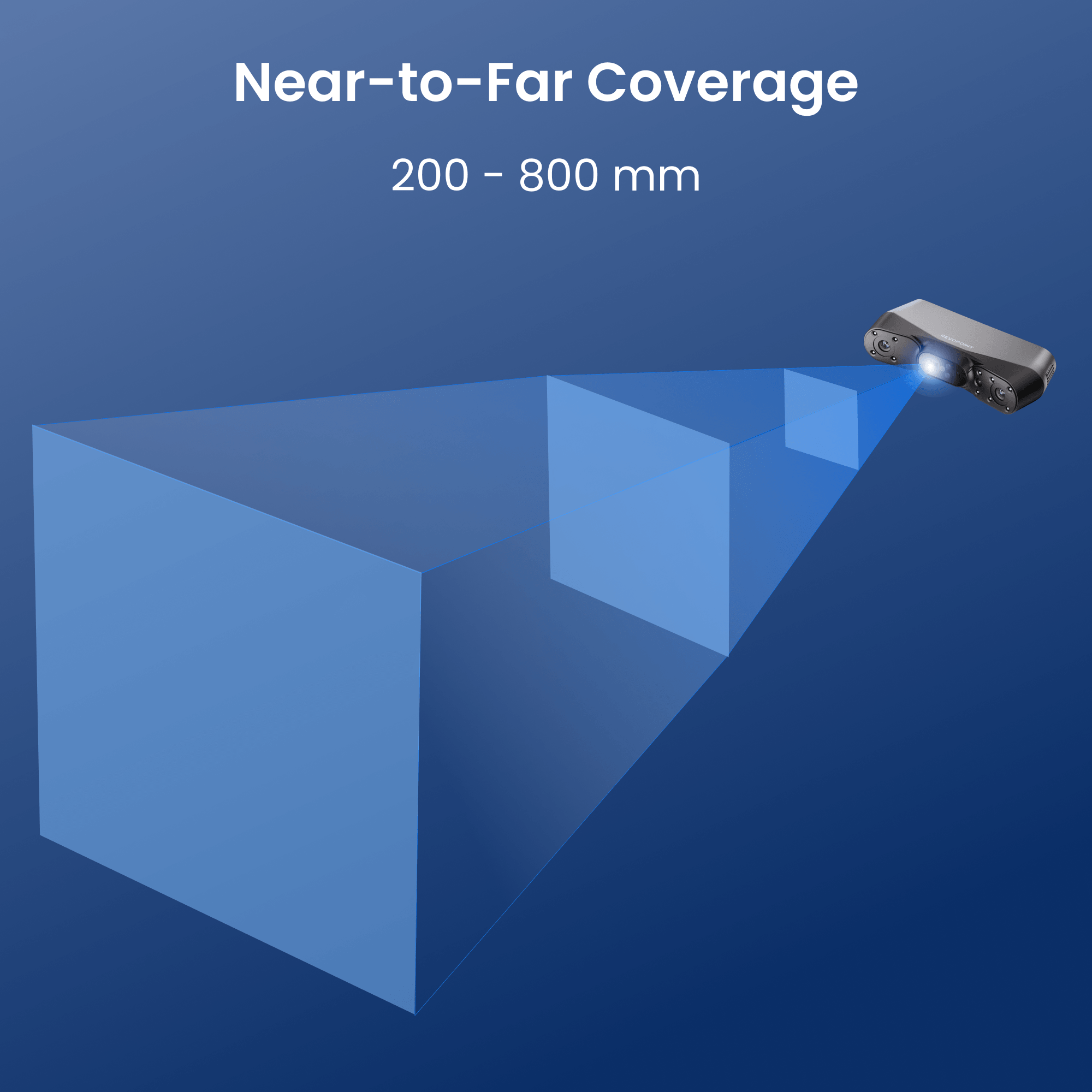

Near-to-Far Coverage

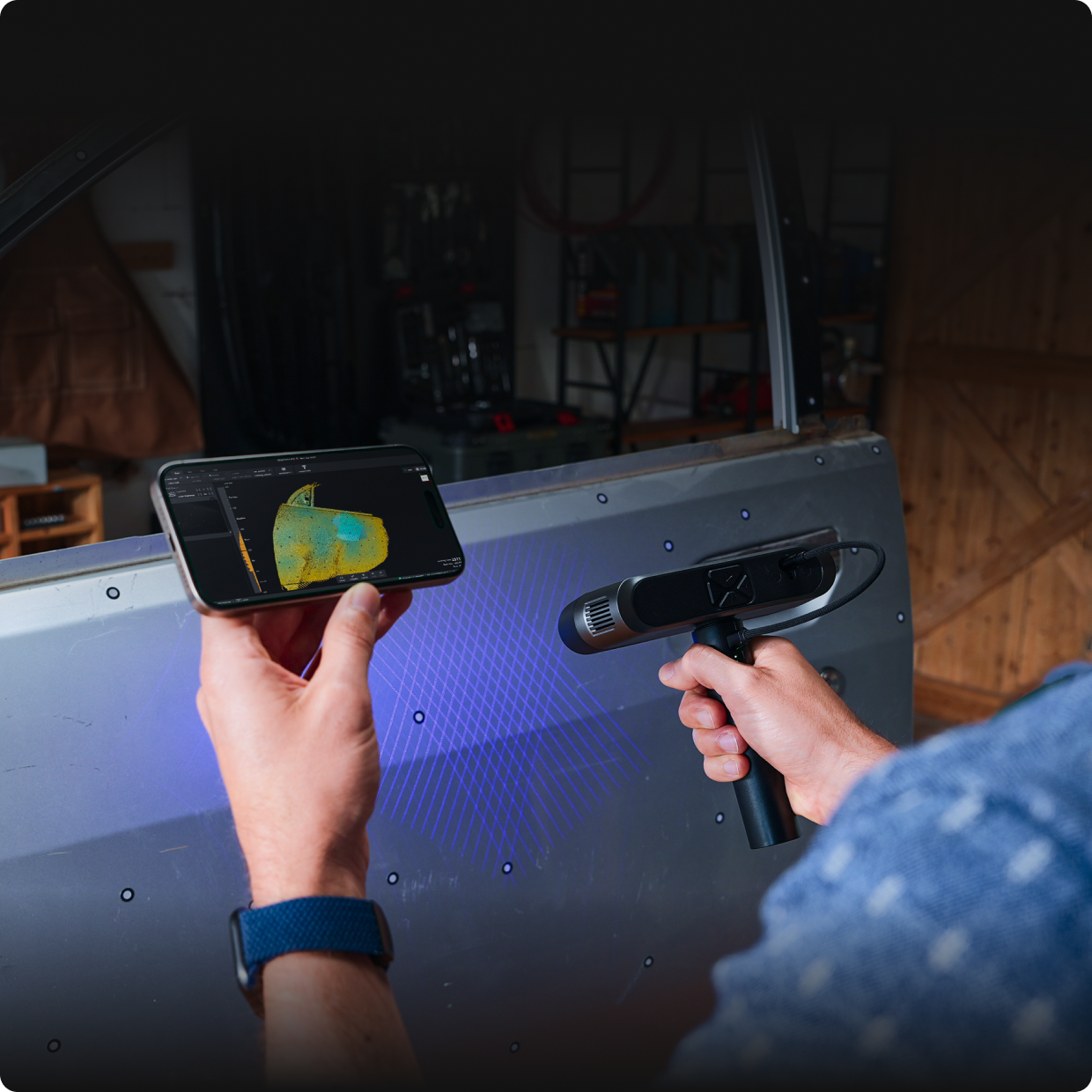

Wireless Freedom: Scan On the Go
The Next Gen of Color

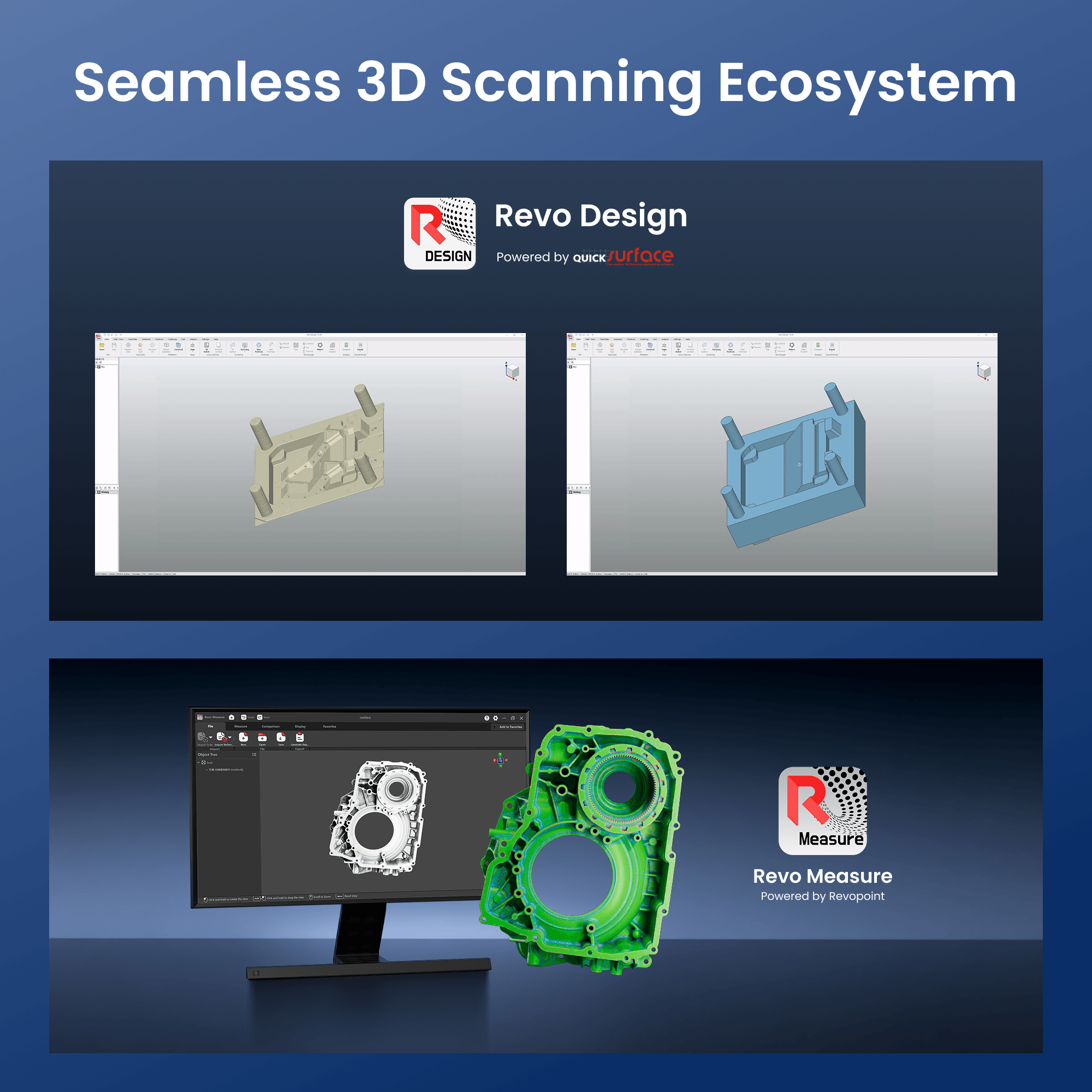

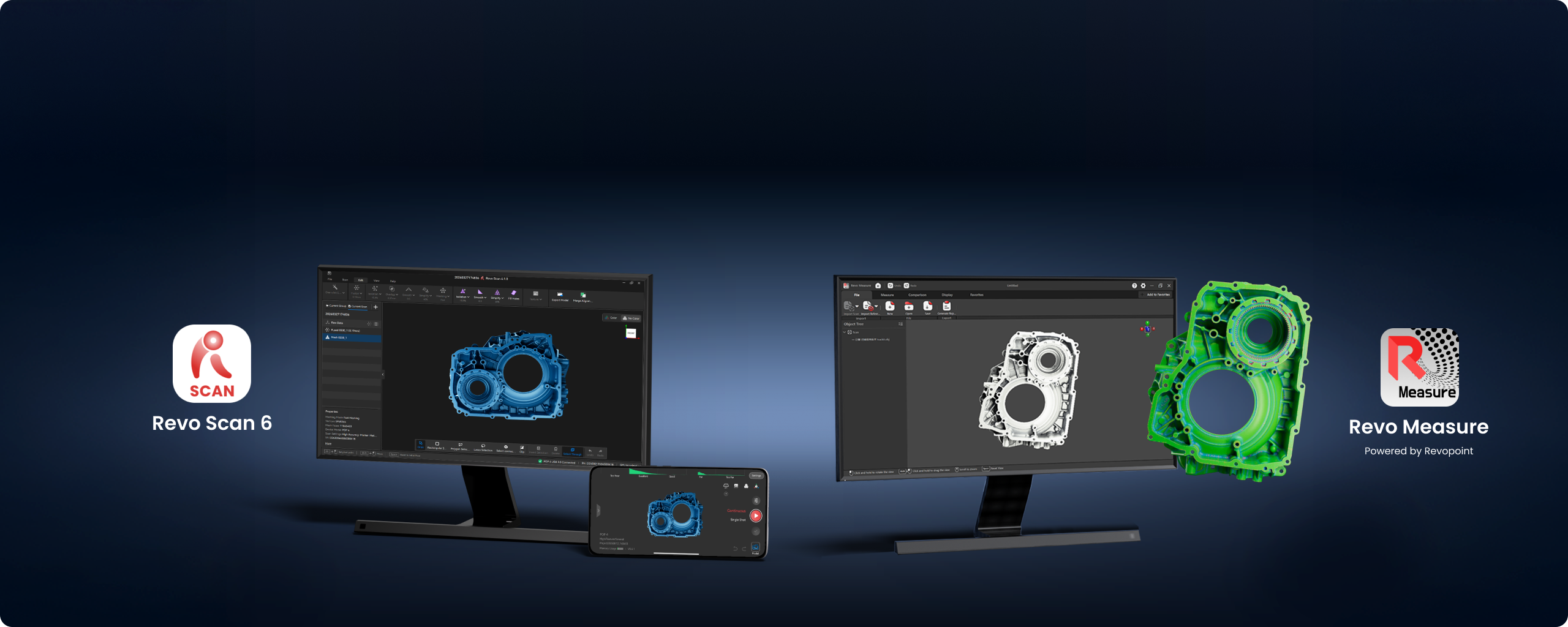

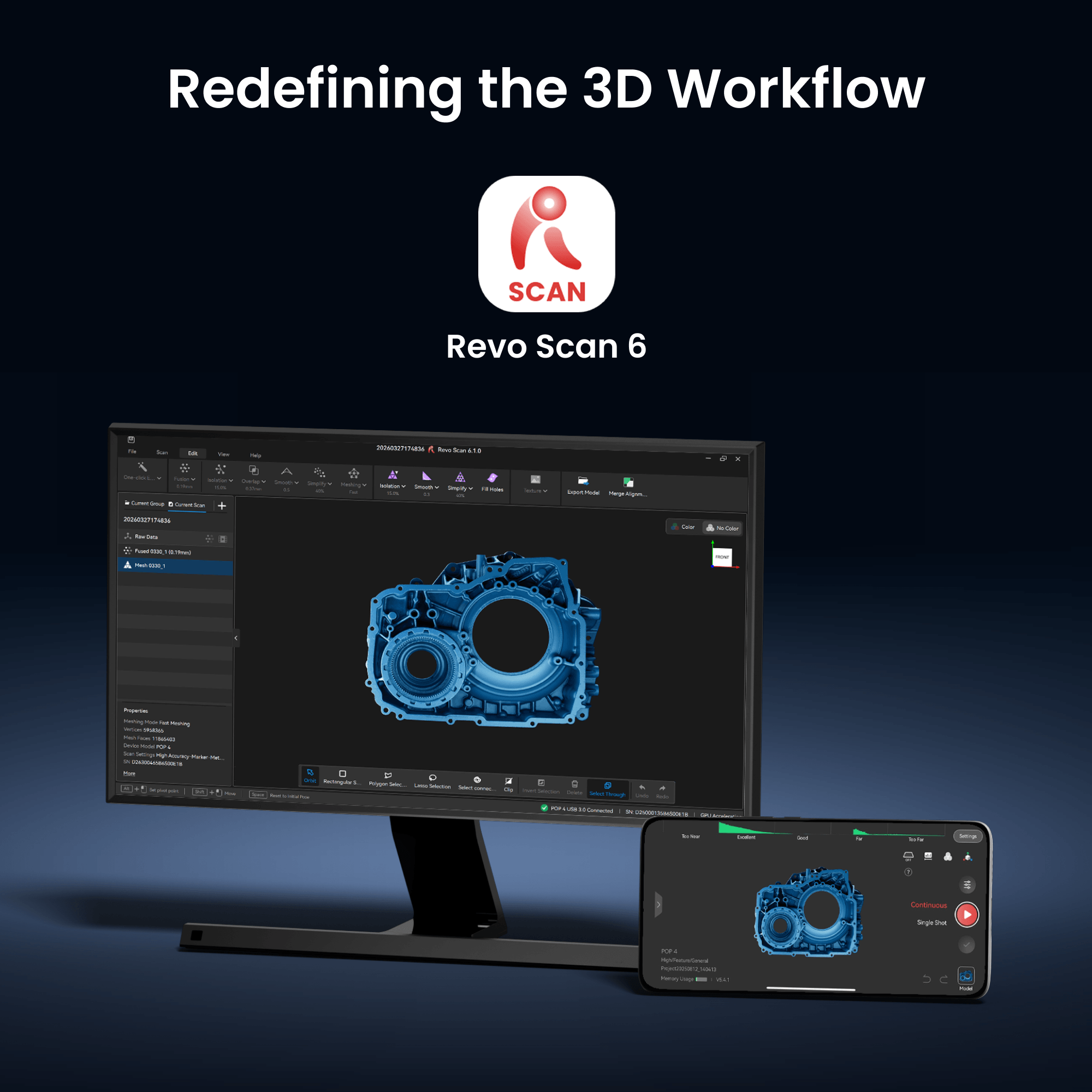

Seamless 3D Scanning Ecosystem
0.03 mm + 0.05 mm × L (m)
Captured with POP 4
Abstract Color Bust
Female Figure

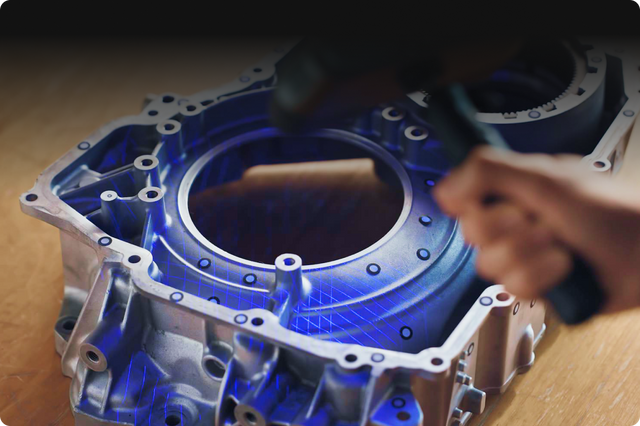

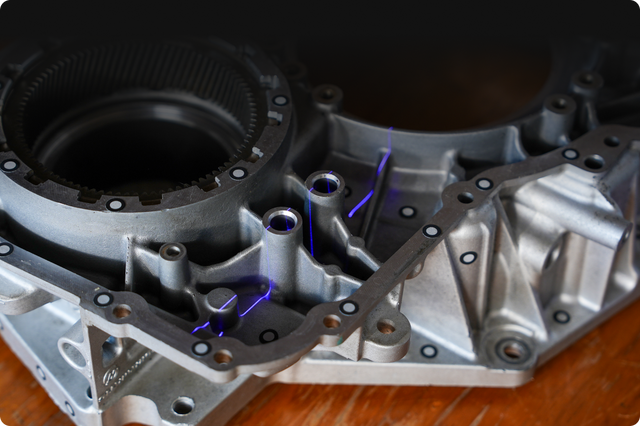

Transmission Case Part

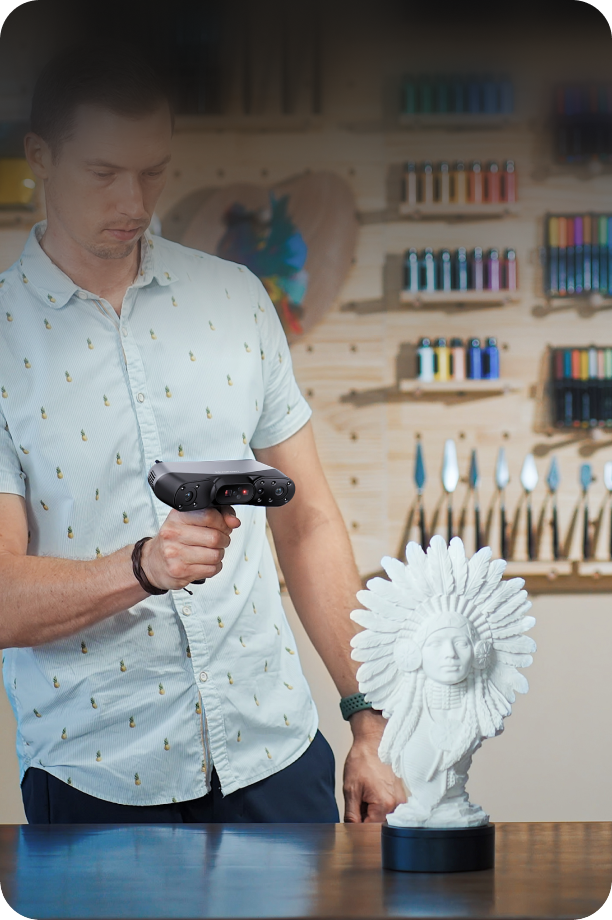

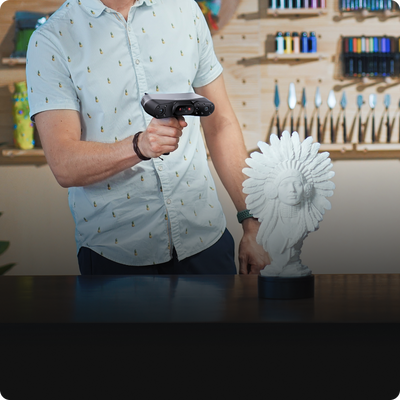

Indian Woman Statue

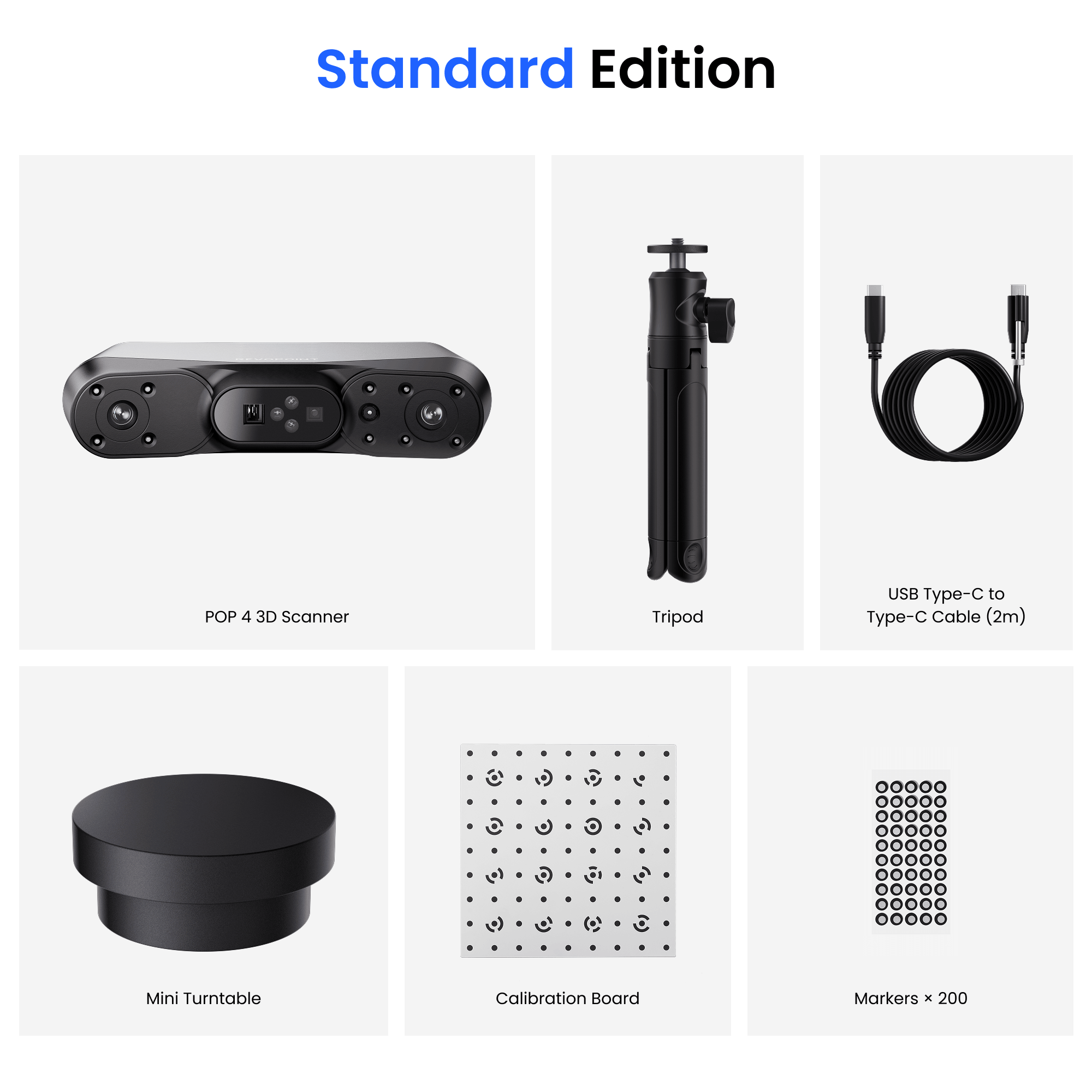

What’s in the Box?
Standard Edition

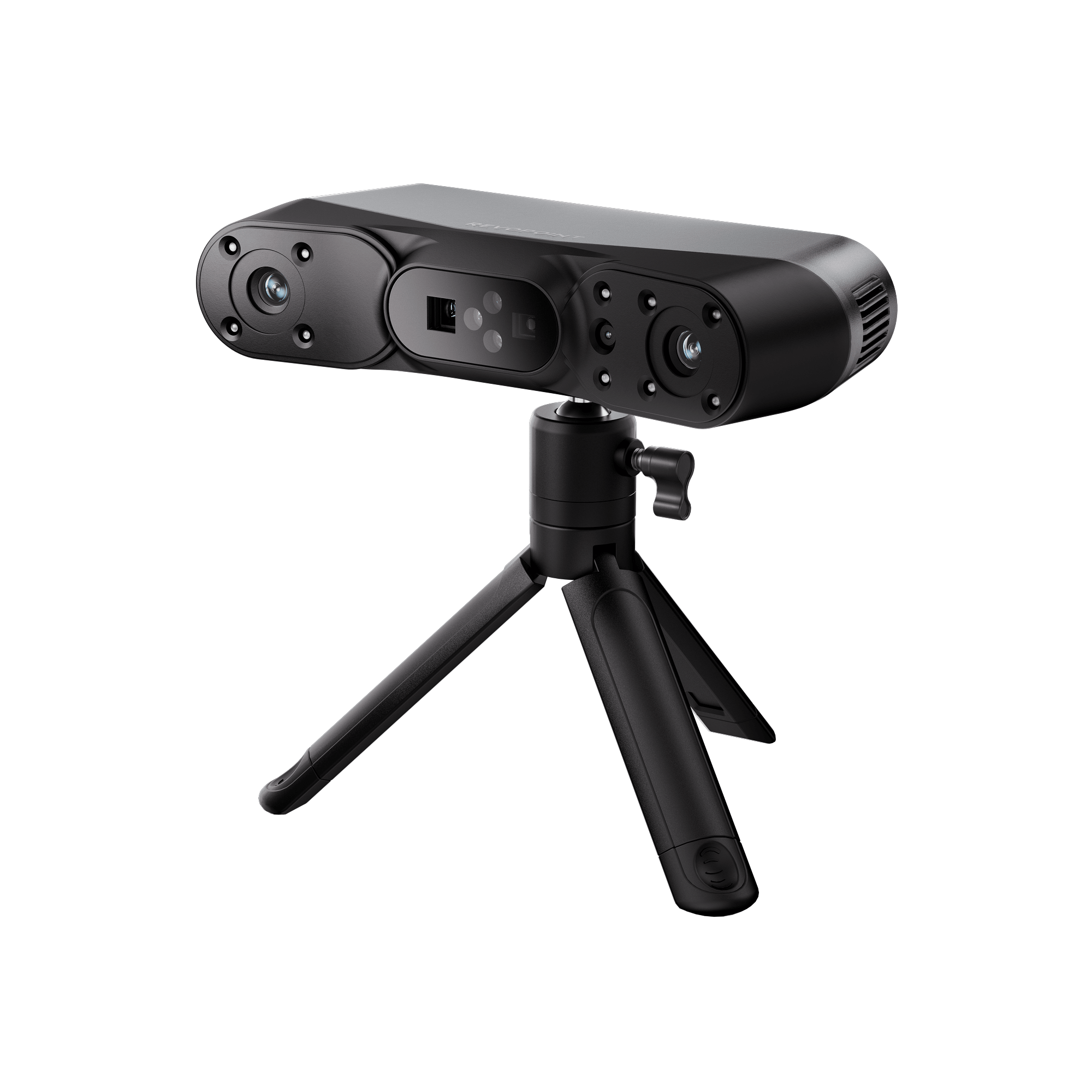

POP 4 3D Scanner
USB Type-C to Type-C Data Cable (2 m)
Tripod
Markers × 200
Mini Turntable
Calibration Board

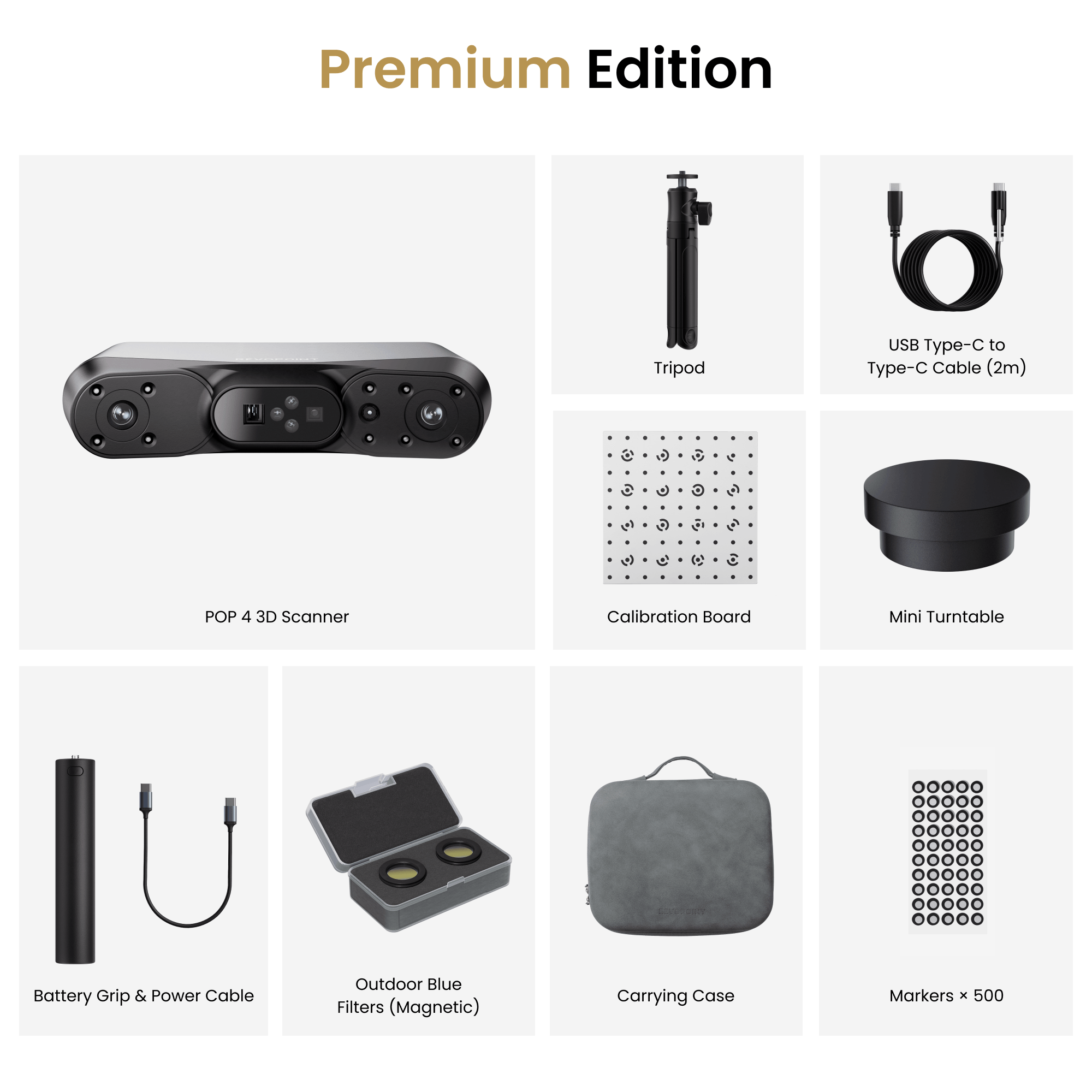

Premium Edition
POP 4 Standard Edition+
Battery Grip Power Cable
Outdoor Blue Filters (Magnetic)
Markers × 300
Power Up Your POP 4: Compatible Software
Reviews on YouTube
Specifications
|
Name
|
POP 4
|
|
Scanning Type
|
Handheld and Desktop
|
|
Technology
|
Blue Multi-line Laser
Near-Infrared Full-field Structured Light and VCSEL Structured Light |
|
Scannable Object Size
|
Small to Medium
|
|
Single-frame Accuracy, up to*
|
Line Laser Accuracy: 0.03 mm
Full-field Structured Light Accuracy: 0.08 mm VCSEL Structured Light Accuracy: 0.10 mm @ 300-500 mm, 0.20 mm @ 500-800 mm |
|
Volumetric Accuracy
|
0.03 mm + 0.05 mm × L (m)
L is the length of the object. (Note: Using Multi-line Laser Mode) |
|
Fused Point Distance, up to
|
0.05 mm
|
|
Working Distance
|
200 - 400 mm (Multi-line Laser Mode)
250 - 500 mm (Full-field HD Mode and Hybrid HD) 300 - 800 mm (VCSEL Mode) |
|
Single Capture Area at Nearest Distance
|
131 × 134 mm at 200 mm
|
|
Single Capture Area at Furthest Distance
|
312 × 269 mm at 400 mm (Multi-line Laser, Full-field)
505 × 538 mm at 800 mm (VCSEL mode) |
|
Angular Field of View (H × V)
|
46 × 37°
|
|
Minimum Scan Volume
|
10 × 10 × 10 mm
|
|
Maximum Scan Volume
|
2 × 2 × 2 m
|
|
Scanning Speed, up to
|
Multi-line Laser Scan: 105 fps (NVIDIA GPU), 60 fps (CPU)
Full-field Structured Light Scan: 20 fps VCSEL Structured Light Scan: 30 fps |
|
Point Return Rate
|
Multi-line Laser: 2,000,000 Points/s
Full-field Structured Light Scan: 5,000,000 Points/s |
|
RGB Camera Resolution
|
1.3 Megapixels
|
|
Color Scanning
|
Yes
|
|
Tracking Methods
|
Feature, Marker, Global Marker, Color
|
|
Outdoor Scanning*
|
Yes
Lighting Environment Requirements, Multi-line Laser ≤ 50,000 lux, VCSEL ≤ 100,000 lux (When using the multi-line laser mode with an outdoor filter, scanning is possible in lighting conditions of up to 100,000 lux.) |
|
3D Light Source*
|
30 Blue Cross Laser Lines
1 Blue Single Laser Line (Deep-Hole Mode) Near-Infrared Full-field Structured Light Near-Infrared VCSEL Structured Light |
|
Fill Lights*
|
8 (4 Infrared LEDs+4 Blue LEDs)
|
|
White Flash LEDs*
|
2
|
|
CPU
|
/
|
|
Built in Chip Computing
|
Depth Map Computing
|
|
Buttons
|
4
|
|
Minimum PC Requirements*
|
macOS
CPU: M1 Pro/Max/Ultra RAM ≥ 16 GB Windows CPU: Intel i7 13th Gen or AMD Ryzen 7 5800 RAM ≥ 16 GB GPU: NVIDIA GeForce RTX 3060 (8 GB) Note: ① If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz. ② Supports NVIDIA GPU, AMD GPU, and Apple Mac GPU. |
|
Recommended PC Requirements*
|
macOS
CPU: M3 Pro/Max/Ultra or better RAM ≥ 24GB Windows CPU: Intel i9 12th Gen or better RAM ≥ 32 GB GPU: NVIDIA RTX 4060 (8 GB) or better |
|
Mobile Requirements
|
① Android
CPU: Snapdragon 8 Gen1, Dimensity 9000, Kirin 9000S Equivalent performance or better RAM: 12 GB or better System Version: Android 11 or better Storage: 128 GB or better ② iPhone Models after iPhone X; System Version: iOS 14.0 or better; RAM > 4 GB; Storage ≥ 64 GB ③ iPad 10th Gen iPad or later Note: Multi-line scanning mode does not support standalone mobile phone operation. It requires the scanner to connect to a PC via WiFi to work, with the screen being cast to the mobile phone in real-time. Full-field scanning mode and VCSEL scanning mode can be used independently with a mobile phone. |
|
Compatible Operating Systems
|
Windows 10/11 (64 bit), Android, iOS, macOS 11.0 or batter
|
|
Output File Formats
|
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, Splat
|
|
Ready to Print 3D Models
|
✔
|
|
Wi-Fi
|
6
|
|
Bluetooth
|
4.1
|
|
Connector Type
|
Type-C to Type-C USB 3.0
|
|
Power Requirements
|
DC 5V, 2A
|
|
Scanner Weight
|
286 g
|
|
Dimensions (L × W × H)
|
160 × 30 × 72 mm
|
|
Special Object Scanning
|
Please use scanning spray when scanning transparent or specular surfaces
|
|
User Recalibration
|
Yes
|
|
Supported Accessories
|
Marker Block Kit, Mobile Kit (4th Gen), Dual-axis Turntable (Ⅱ)
|
|
Power Bank Capacity
|
5500 mAh(4 hours of battery life under average power consumption)
|
|
Note
|
1. Accuracy is how close a measured value at a single angle is to the actual (true) value. The date was acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
2. Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details. 3. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy. |
FAQ
Can POP 4 be used outdoors?
Yes, POP 4 performs well in bright lighting conditions. In VCSEL rapid mode, it can operate stably in lighting of up to 100,000 lux. In multi-line laser scanning mode, it supports outdoor lighting conditions of up to 50,000 lux. For lighting above 50,000 lux, using a magnetic outdoor filter is recommended.
Does POP 4 have a built-in battery?
POP 4 does not have a built-in battery and must be powered via a USB-C to USB-C cable connected to an external power source. An optional Battery Grip can be used for portable wireless scanning.
How should I scan transparent or highly reflective objects?
Please use scanning spray when scanning transparent or specular surfaces. Scanning spray can be purchased from Revopoint's official online store.
Do I need to use markers during scans?
In laser line scanning mode, using markers is a must. In structured light scanning mode, it depends on object features: for objects with rich geometric features, markers are not required; for featureless objects, markers are needed for stable tracking. When using markers, place them in an irregular pattern on the object surface and ensure that at least five markers are visible within each frame during scanning. In addition, POP 4's VCSEL rapid mode supports high-speed markerless scanning of featureless objects using feature tracking.
How do I use the calibration board?
It is recommended to enter the calibration program and calibrate your Revopoint 3D scanner using the Calibration Board before scanning. The steps are as follows:
(1) Connect the scanner to a PC using the USB Cable and open the Revo Scan 6 Software.
(2) Click the "Calibration" button in the lower left corner to enter the calibration program.
(3) Place the Calibration Board on a flat surface, ensuring the pattern on the board is clearly visible.
(4) Scan the QR code to import the Calibration Board's information, then check the scanner's accuracy. If the accuracy check fails, follow the on-screen instructions to complete the calibration.
How long does the Battery Grip power the POP 4?
The Battery Grip has a built-in 5500 mAh lithium battery, providing approximately 4 hours of runtime under normal usage conditions, making it suitable for extended outdoor operation.
Can I cast the screen of Revo Scan 6 to my phone wirelessly?
Yes. The Revo Mirror software enables casting of the PC scanning interface to your phone, allowing real-time preview and control from a mobile device.
Can I use the multi-line laser mode on a phone?
No, Multi-line laser mode requires a Wi-Fi connection to a PC, with the scan interface mirrored to the phone in real time. However, full-field structured light mode and VCSEL rapid mode can be used on a mobile device independently.
Do I need to purchase the software separately?
No, POP 4 comes with free scanning software Revo Scan 6. You can scan, edit, merge, and import/export models offline.
