New Release
Multi-Line Infrared Lasers
Outdoor Scanning
Revopoint INSPIRE 2: Wireless Infrared Laser and Structured Light 3D Scanner
· High Accuracy Up to 0.05 mm
· Volumetric Accuracy 0.05 mm + 0.1 mm × L (m)
· 1.5x and 2x Optical Zoom
· Marker-free Body & Feature-rich Object Scans
· On-the-Go Scanning, Wi-Fi 6 Connectivity
· Full Color Scanning
📦 Ships from Sept 10.
Overview
INSPIRE 2 3D Scanner
Inspiration in Your Pocket
Reality, Captured Perfectly
0.05 mm + 0.1 mm × L (m)
Scan Dark or Shiny Surfaces
Marker-free, Body Scans, and More
Up to 20,000 lux
Outdoor Scanning
Connect Via Wi-Fi to Mobile Devices
Optical Zoom Function
Real-tone Color Scans
Just an INSPIRE 2 Away from Perfect Scans
With a fully upgraded dual-mode 3D scanning system, INSPIRE 2 delivers 30% more detail and a 30% bigger capture area for great tracking and accuracy when capturing medium-sized objects.
11 Parallel Infrared Laser Lines
Effortlessly capture detailed, dark, or shiny surfaces without the need for scanning spray.
Infrared Structured Light
Rapidly perform body and face scans, and easily capture feature-rich objects without using markers.
Optical Zooming
Capture mixed-geometry surfaces without worrying about missing detail, using the projector's optical 1.5x and 2x zoom functions. It focuses the scanner's structured light, enabling the easy capture of detailed areas when dealing with multi-surfaced complex objects.
Total Scanning Freedom

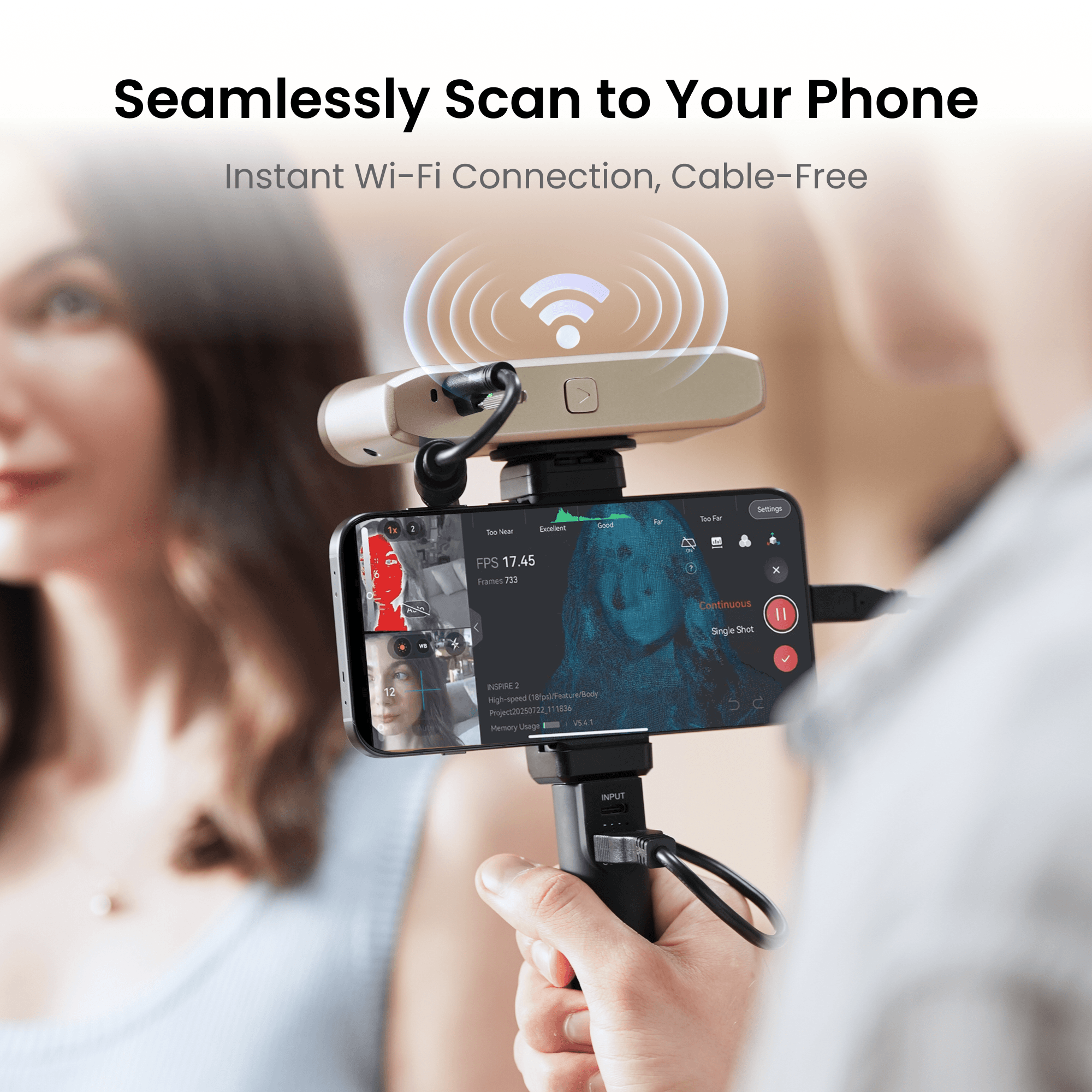

Go Mobile
Skip the expensive adapters and restrictive cables, and take the INSPIRE 2 on the go with mobile structured light scanning by connecting it to your smartphone via Wi-Fi (iOS and Android) or USB-C (Android only). For enhanced performance, enable infrared laser scanning by using your PC to power the scan and stream it to your phone using Revo Mirror, combining desktop power with mobile flexibility.
Go Outside
Go everywhere, scan everything, even in up to 20,000 Lux of daylight, using INSPIRE II's powerful capabilities to capture clean, reliable scans without losing detail or depth quality.
Go Safely
Built for reliability, the INSPIRE 2's lightweight aerospace-grade aluminum alloy front panel delivers exceptional impact resistance and long-term durability, ensuring you can transport your scanner safely.
Skip the expensive adapters and restrictive cables, and take the INSPIRE 2 on the go with mobile structured light scanning by connecting it to your smartphone via Wi-Fi (iOS and Android) or USB-C (Android only). For enhanced performance, enable infrared laser scanning by using your PC to power the scan and stream it to your phone using Revo Mirror, combining desktop power with mobile flexibility.
Go everywhere, scan everything, even in up to 20,000 Lux of daylight, using INSPIRE II's powerful capabilities to capture clean, reliable scans without losing detail or depth quality.
Built for reliability, the INSPIRE 2's lightweight aerospace-grade aluminum alloy front panel delivers exceptional impact resistance and long-term durability, ensuring you can transport your scanner safely.
Complete Scanning Performance
Tracking for Any Object
Adapt to any scanning workflow with INSPIRE 2's Feature, Marker, and Global Marker tracking modes. Structured Light supports all three tracking types, while Laser mode supports Marker and Global Marker only.
True-to-Life Color
Capture stunningly vibrant color scans that capture color with true-to-life accuracy. Whether you're digitizing art, prototypes, or real-world objects, INSPIRE 2’s advanced RGB camera brings your scans to life.
Ensure Scan Reliability
Keep your INSPIRE 2 accurate and dependable with the new ultra-precise photolithographic calibration board designed to ensure top-tier scanning performance.
Total Scanning Freedom
Intuitively create 3D models in four easy steps using INSPIRE 2’s powerful Revo Metro PC software*.
Scan
Granular scan settings let you control every aspect of the scanning process, ensuring optimal point cloud capture.
Process
Process your raw point cloud automatically with one-click editing or fully fine-tune it with fusion and meshing tools.
Edit
With versatile selection, clean-up, and merging tools, you can swiftly remove unwanted data, fill holes, smooth, simplify, and merge your 3D models.
Export
Export your scans in formats supported by all major professional software for quality control, CAD, 3D slicing, and 3D modeling, ensuring seamless integration into your existing workflows.
Works On: Windows, macOS, Android, iOS
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Note: For mobile scans, use Revo Scan 5. It's compatible with iOS and Android devices.
Granular scan settings let you control every aspect of the scanning process, ensuring optimal point cloud capture.
Process your raw point cloud automatically with one-click editing or fully fine-tune it with fusion and meshing tools.
With versatile selection, clean-up, and merging tools, you can swiftly remove unwanted data, fill holes, smooth, simplify, and merge your 3D models.
Export your scans in formats supported by all major professional software for quality control, CAD, 3D slicing, and 3D modeling, ensuring seamless integration into your existing workflows.
Works On: Windows, macOS, Android, iOS
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Note: For mobile scans, use Revo Scan 5. It's compatible with iOS and Android devices.
Captured with INSPIRE 2
Sitting Woman
Sitting woman captured with the Revopoint INSPIRE 2's full-field structured light mode.
David Bust
Plaster David bust captured with the Revopoint INSPIRE 2.
Gearbox
Car's gearbox captured with the Revopoint INSPIRE 2 infrared parallel lines.
Lion Statue
Stone lion sculpture captured with the Revopoint INSPIRE 2's full-field structured light mode.
How INSPIRE 2 Helps You
Reverse Engineering
Whether you're reverse engineering broken parts, designing upgrades, or restoring vintage items, INSPIRE 2 helps you create volumetrically accurate 3D models.
3D Printing
With 0.03 mm precision and support for up to 20,000 lux lighting, INSPIRE 2 captures detailed 3D data even in outdoor environments. It’s great for scanning everything from tool parts to humans, ensuring every detail is captured clearly. Whether you're into fixing designs or want an accurate scan of your prints, INSPIRE 2 has you covered.
Product Design
Quickly capture precise dimensions and textures, accelerating product redesign and iteration with CAD/CAM software. INSPIRE 2's lightweight design and high dynamic range enable fast and accurate scanning in challenging environments, such as workshops and outdoors.
Animation & Digital Media
Accurately capture the shape and texture of characters, props, and environments, cutting down the time and cost of manual modeling in CG, game development, and virtual reality. INSPIRE 2's high-resolution depth capture and ambient light suppression deliver reliable results both indoors and outdoors, making it ideal for creating assets, digital humans, virtual exhibits, and NFTs.
Heritage Preservation
Whether you’re restoring, preserving, or teaching, rapidly create color-accurate scans of artifacts. INSPIRE 2 delivers stable, high-precision scanning even in complex environments like heritage sites. Its advanced imaging captures true texture and color for accurate restoration and digital preservation.
Specifications
Light and Infrared Multi-line Laser
(Note: Using marker tracking mode)
Multi-line Laser Scan: 30 fps
CPU: M1 Pro/Max/Ultra
RAM ≥ 16GB
Windows
CPU: Intel i7 12th Gen or AMD Ryzen 7 5800
RAM ≥ 32GB
GPU (Optional): NVIDIA GeForce RTX 3050 (8GB)
Note: If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.
CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra
RAM ≥ 24GB
Windows
CPU: Intel i9 12th Gen or better
RAM ≥ 64GB
GPU: NVIDIA RTX 4060 (8 GB) or better
System Version: 9.0 or better;
RAM ≥ 8 GB; Storage ≥ 128 GB
② iPhone
Models after iPhone X;
System Version: iOS 14.0 or better;
RAM > 4 GB; Storage ≥ 64 GB
③ iPad
10th Gen iPad or later
Note: Multi-line scanning mode does not support standalone mobile phone operation. It requires the scanner to connect to a PC via WiFi to work, with the screen being cast to the mobile phone in real-time. Full-field scanning mode can be used independently with a mobile phone.

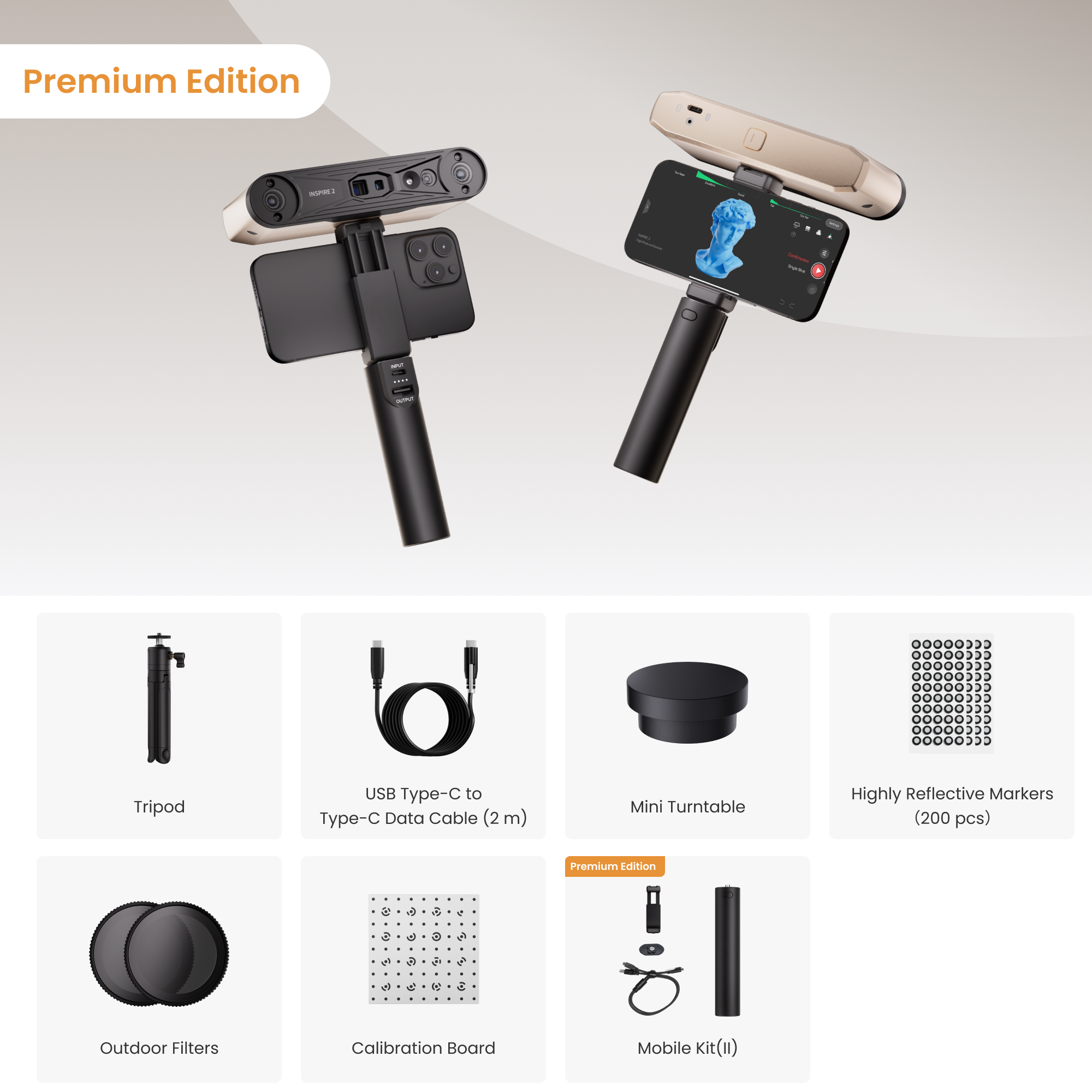

What’s in the Box?
Standard Edition
INSPIRE 2 3D Scanner
Tripod
USB Type-C to Type-C Data Cable (2 m)
Mini Turntable
Highly Reflective Markers (200 pcs)
Outdoor Filters
Calibration Board
Premium Edition
Phone Holder
Power Bank (4000mAh)
Quick Release Plate
2-in-1 Mobile Cable
INSPIRE 2 Brochures
Software Download
Revo Metro offers user-friendly scanning, editing, and model merging.
Revo Metro offers user-friendly scanning, editing, and model merging.
24/7 Support
Speak to a Revopoint expert now. Whether by phone, chat, or email, we’re ready to help you with all of your product questions and issues.
Speak to a Revopoint expert now. Whether by phone, chat, or email, we’re ready to help you with all of your product questions and issues.
FAQ
What are INSPIRE 2's scanning modes and how are they used?
INSPIRE 2 has two scanning modes: Full-field Structured Light and 11 Infrared Multi-line Lasers, designed to handle different materials, object sizes, and working conditions.
- Full-field Structured Light: Captures detailed, high-density point clouds of small-to-medium objects, ideal for geometry-rich models, efficient modeling, and animation assets. Works outdoors or under complex lighting.
- 11 Infrared Parallel Lines: Tackles reflective metal, dark, or low-texture surfaces with stability and accuracy, eliminating the need for scanning spray.
Can INSPIRE 2 be used outdoors?
Yes, it operates in outdoor lighting of up to 20,000 lux, suitable for operation in shaded areas on bright days. Avoid direct sunlight for optimal performance.
How does INSPIRE 2 connect to devices?
It supports USB Type-C for data and power, Wi-Fi 6 for fast, stable connections to PCs and devices. In Full-field scanning mode, it can be connected to a PC or mobile phone via USB data cable or Wi-Fi. In Multi-line scanning mode it does not support the mobile version of Revo Scan. You can use the Revo Mirror screen casting software to wirelessly mirror the scanning display from the PC to phone for additional scanning operations.
How should I scan transparent or highly reflective objects?
For transparent or mirror-like reflective objects, we recommend applying scanning spray or developer to the surface to improve data stability and accuracy. Scanning spray can be purchased from Revopoint at revopoint3d.com/products/3d-scanning-spray.
What are the differences between the INSPIRE 2 and the INSPIRE 3D scanners?
- Technology: INSPIRE 2 uses Dual-camera Infrared Structured Light and Infrared Multi-line Laser technology, while INSPIRE uses Dual-camera Infrared Structured Light technology.
- Accuracy: INSPIRE 2’s single-frame accuracy can reach 0.05 mm, and its volumetric accuracy can reach 0.05 mm + 0.1 mm × L (m). In comparison, the INSPIRE’s single-frame accuracy is up to 0.2 mm.
- Object Size: INSPIRE 2 is designed to scan small to medium-sized objects with a recommended scan volume of 20 × 20 × 20 mm to 2 × 2 × 2 m. The INSPIRE is specially designed for small objects, with a recommended scan volume of 50 × 50 × 50 mm to 1 × 1 × 1 m.
- Special object scanning: The INSPIRE 2 can scan highly reflective or black surfaces in multi-line laser mode without scanning spray. For the INSPIRE, using a scanning spray is a must.
- Scanning mode: INSPIRE 2 supports both structured light scanning and parallel line scanning modes, covering a variety of indoor and outdoor application scenarios; INSPIRE supports structured light scanning mode, which can be used for indoor scanning.
What’s the difference between the Standard Edition and the Mobile Scanning Kit Edition?
The Standard Edition is ideal for fixed setups and PC operation; the Mobile Scanning Kit Edition adds a phone holder, 2-in-1 mobile cable, power bank, and quick release plate for flexible mobile device use.
Do I need to use markers during scans?
Markers are required for laser scanning. When placing marker points, organize them in an irregular pattern. Always ensure at least five marker points are visible in the frame during scans. For optimal accuracy, attach the markers to flat surfaces rather than curved ones. Also, avoid using soft pads or cloths with markers. INSPIRE 2's structured light mode does not require markers when scanning feature-rich items. However, markers are needed when scanning featureless items, i.e., objects with flat, plain surfaces or repeating patterns.
Do I need to purchase the software separately?
No, INSPIRE 2 comes with free scanning software (PC: Revo Metro; Mobile App: Revo Scan). You can scan, edit, merge, and import/export models offline.
Can I wirelessly cast the scanning screen to my phone?
Yes. Revo Mirror screen casting software enables real-time casting of the PC scanning interface to your phone, allowing operation from mobile devices.
What formats can Revo Scan export?
Revo Scan can export your models in PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX for compatibility with most 3D modeling, slicer, and CAD software.
- Point Cloud model: PLY, OBJ, ASC
- Mesh model: PLY, OBJ, STL, FBX, GLTF, 3MF
- Texture model: PLY, OBJ, FBX, GLTF
