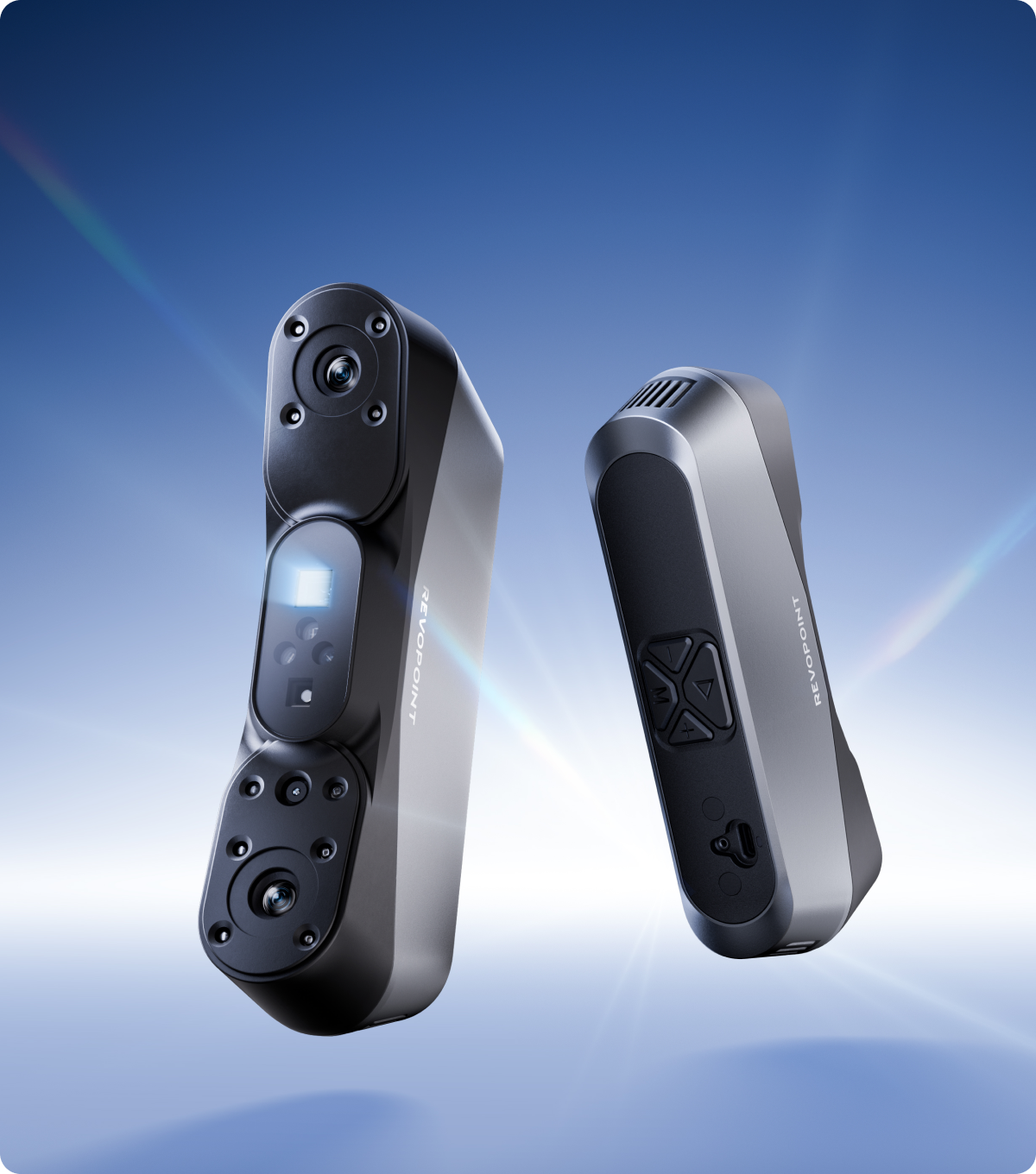

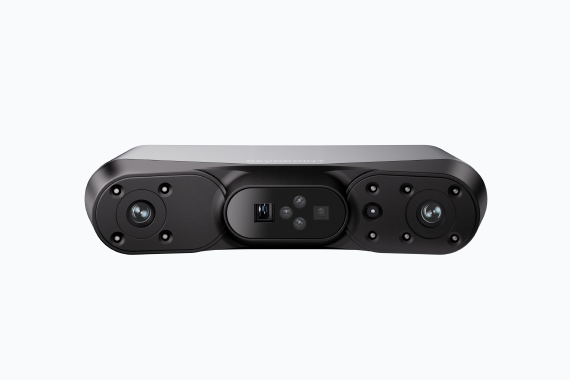

POP 4

Overview

Scan Everything, Everywhere

Volumetric Accuracy

0.03 mm + 0.05 mm × L (m)

Blazingly Fast Laser Scans

Up to

Scanning Volume

Small to Medium Objects

Outdoor Scans
Up to100,000

Flexible & Wireless Scanning

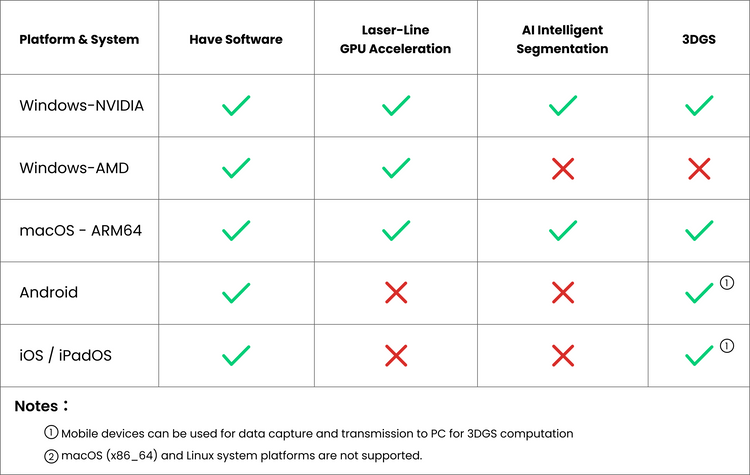

Compatible with Windows, macOS, iOS, and Android

Real-time Segmentation

Gaussian Splatting

Photo-Realistic Full-color 3D Objects

Near-to-Far Coverage

200 - 800 mm

No Scanning Spray Needed

Scan Dark or Shiny Surfaces

See It. POP It

5 Modes. Total Coverage

Speed
30 Cross- laser lines Deep Holes
Single Laser Line Full-Field HD Mode Outdoor
VCSEL Rapid Scanning Hybrid HD Mode

Rapidly scan flat, shiny, or dark surfaces at up to 2M points/s and 105 fps* for fast, accurate results.
Accuracy: Up to 0.03 mm
*Scanning speeds may vary depending on PC hardware.

Ensure complete data capture in hard-to-reach areas such as deep holes, crevices, and grilles.

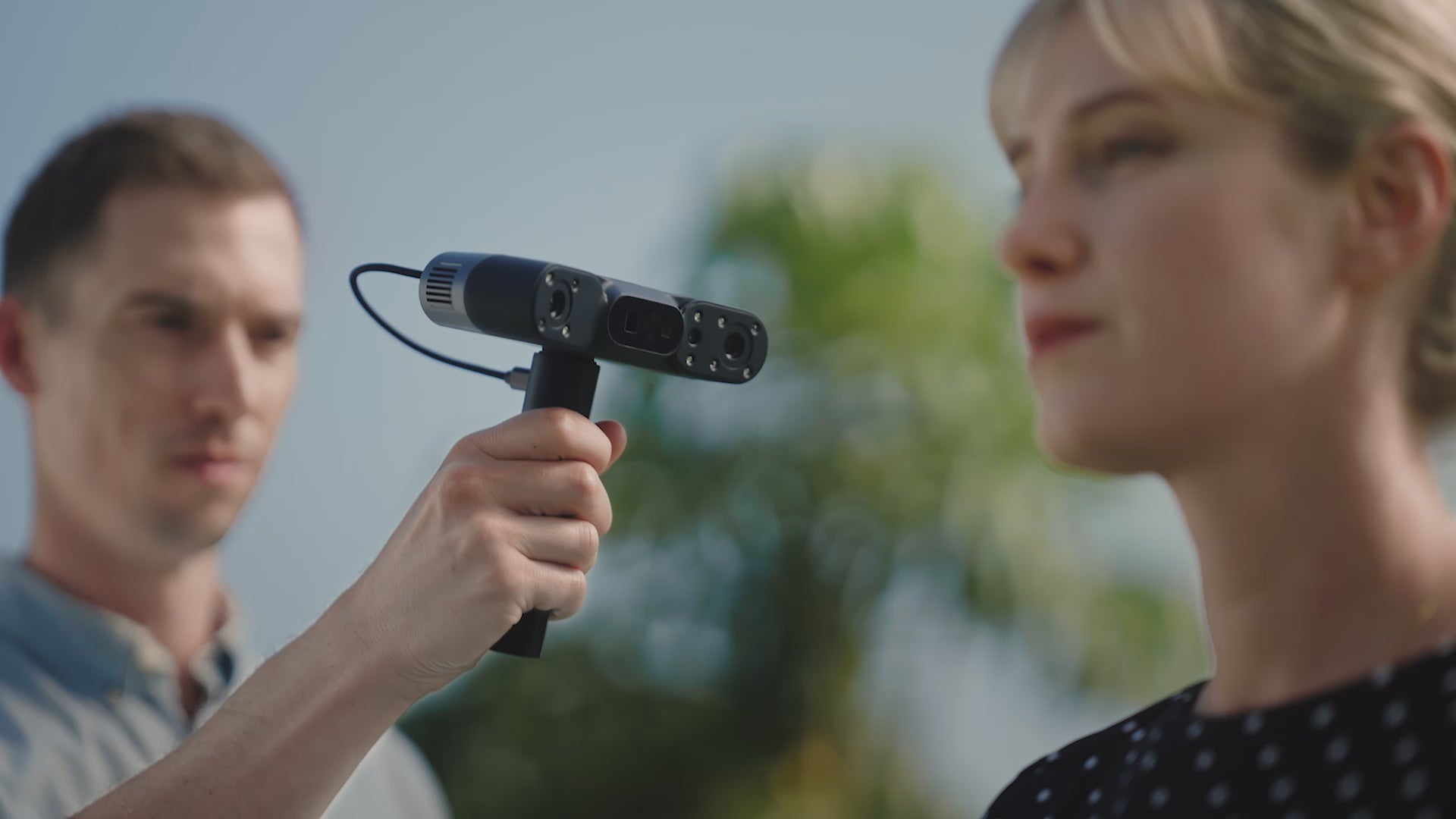

Easily capture bodies, faces, and objects, marker-free, at speeds up to 5M points/s, it delivers high-detail models with exceptional accuracy.

Switch to VCSEL mode for fast, up to 30 fps scans that easily capture larger workpieces and people marker-free, even in direct sunlight (up to 100,000 Lux).

Combines the strengths of POP 4’s Full-Field and VCSEL modes to deliver fast, accurate 3D scans unshakeable tracking—the perfect balance of speed and detail.

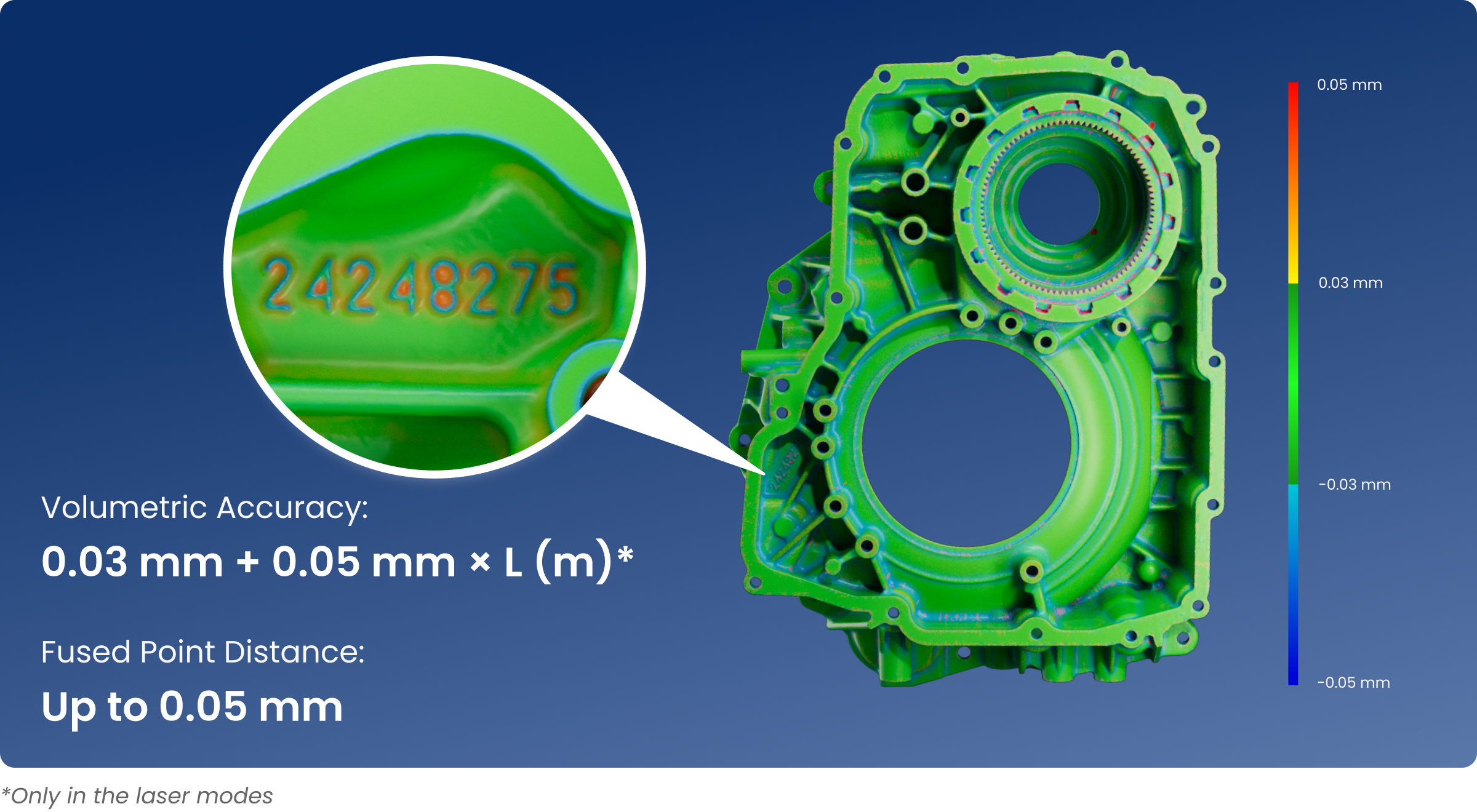

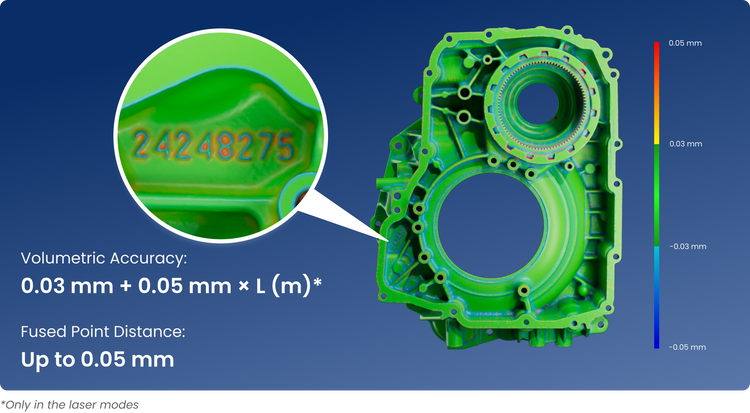

Every Detail. On Point

Capture even the most complex geometries with exceptional accuracy.
POP 4 delivers high detail 3D models ready for 3D printing, reverse engineering, and scan-to-CAD workflows.

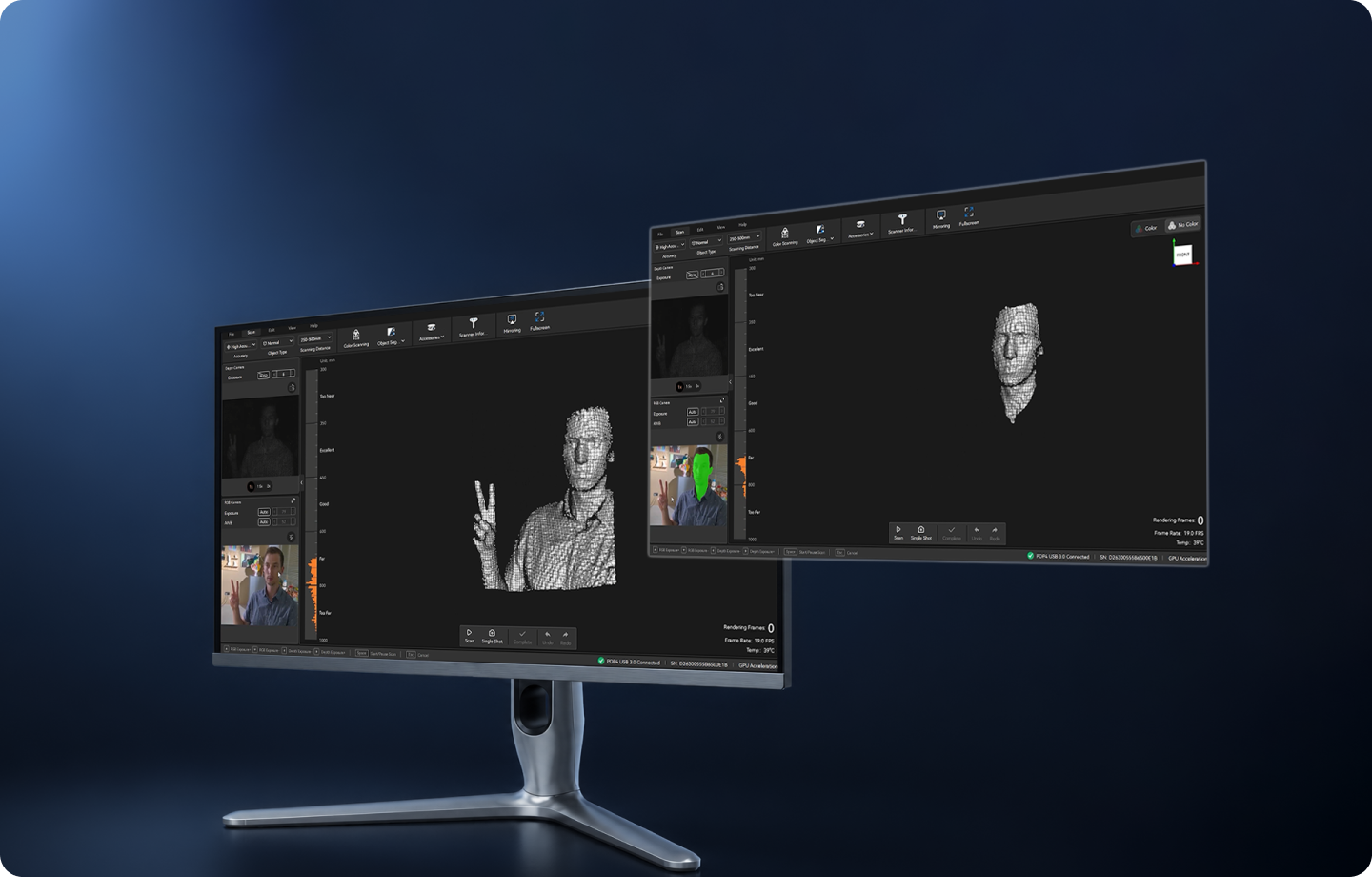

Real-time AI Segmentation*

Zero-Noise Capture

Built-in AI identifies and extracts the target in real-time, automatically filtering out the desk, background, and unwanted clutter.

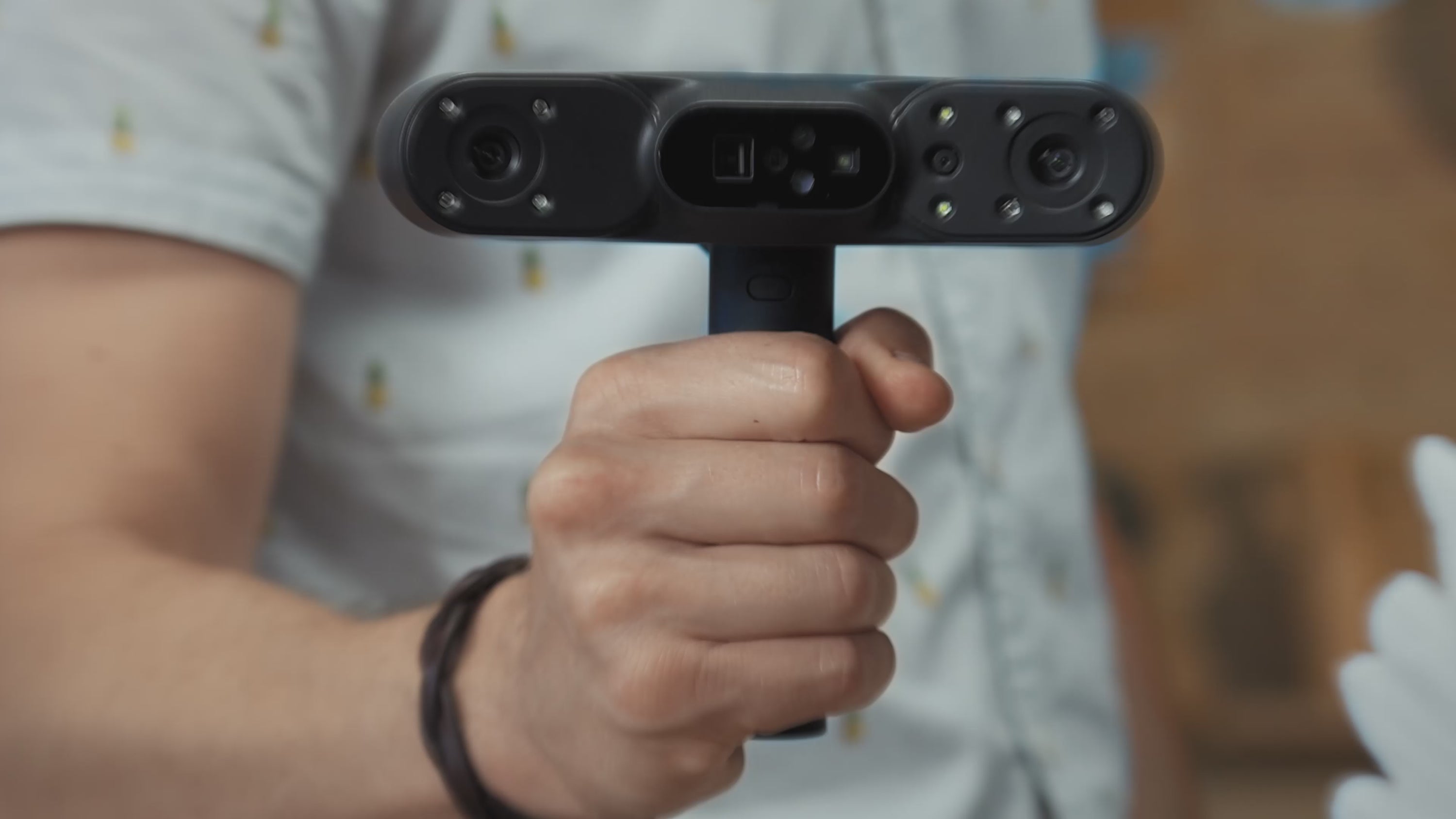

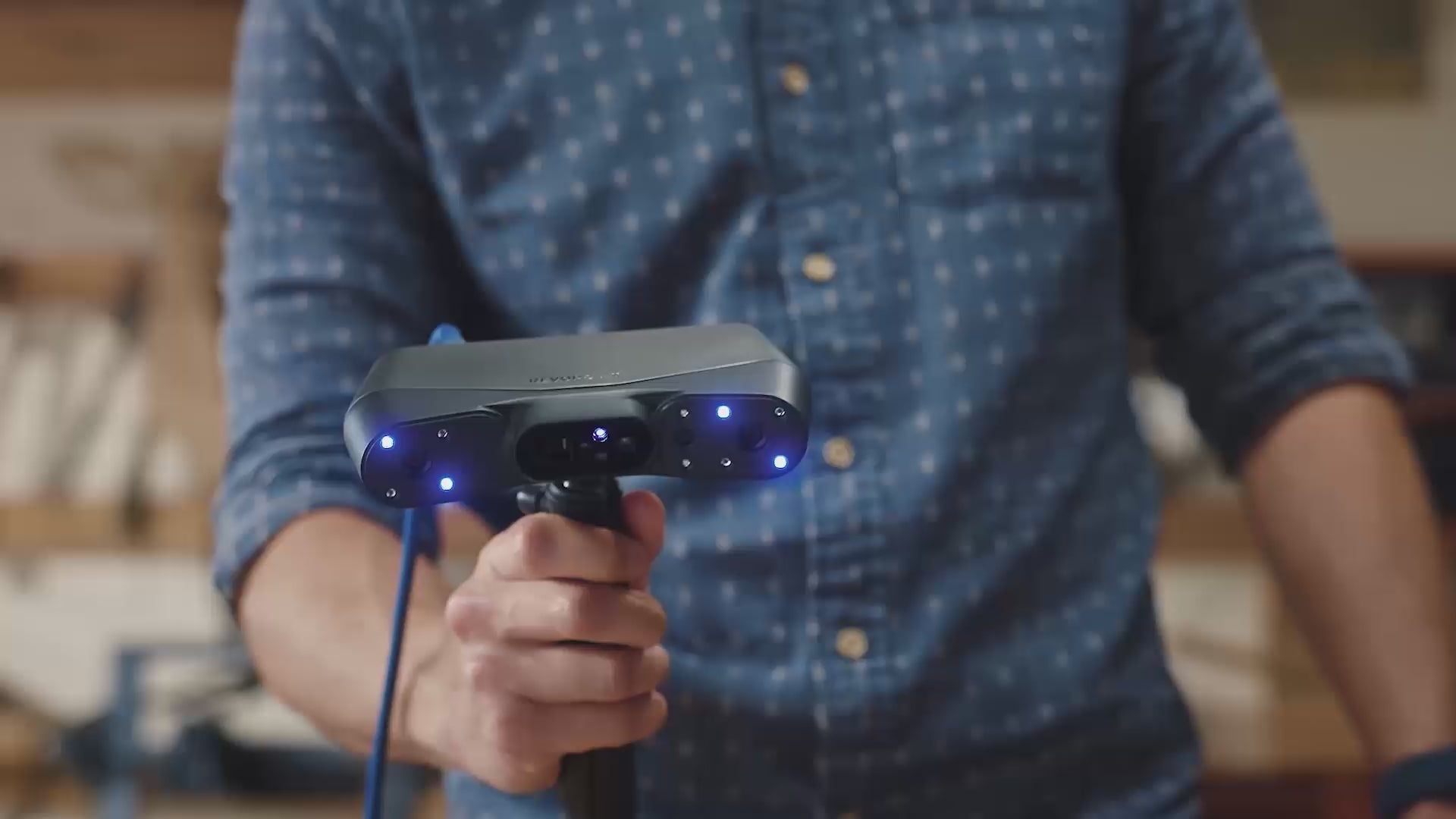

Handheld Freedom

No more avoiding your own hands—you can hold the object directly. The AI intelligently recognizes and hides your fingers.

Beyond Mesh.
Capture Reality in 3DGS

Ready-to-Use Export

Directly export in .splat format for seamless integration into your creative pipeline.

Accurate Geometry

Unlike smartphone-based splatting that often suffers from spatial distortion, POP 4 provides a 0.03 mm precision geometric backbone. You get the stunning, lifelike visual fidelity of 3DGS (Gaussian Splatting), anchored to a dimensionally accurate 3D model.

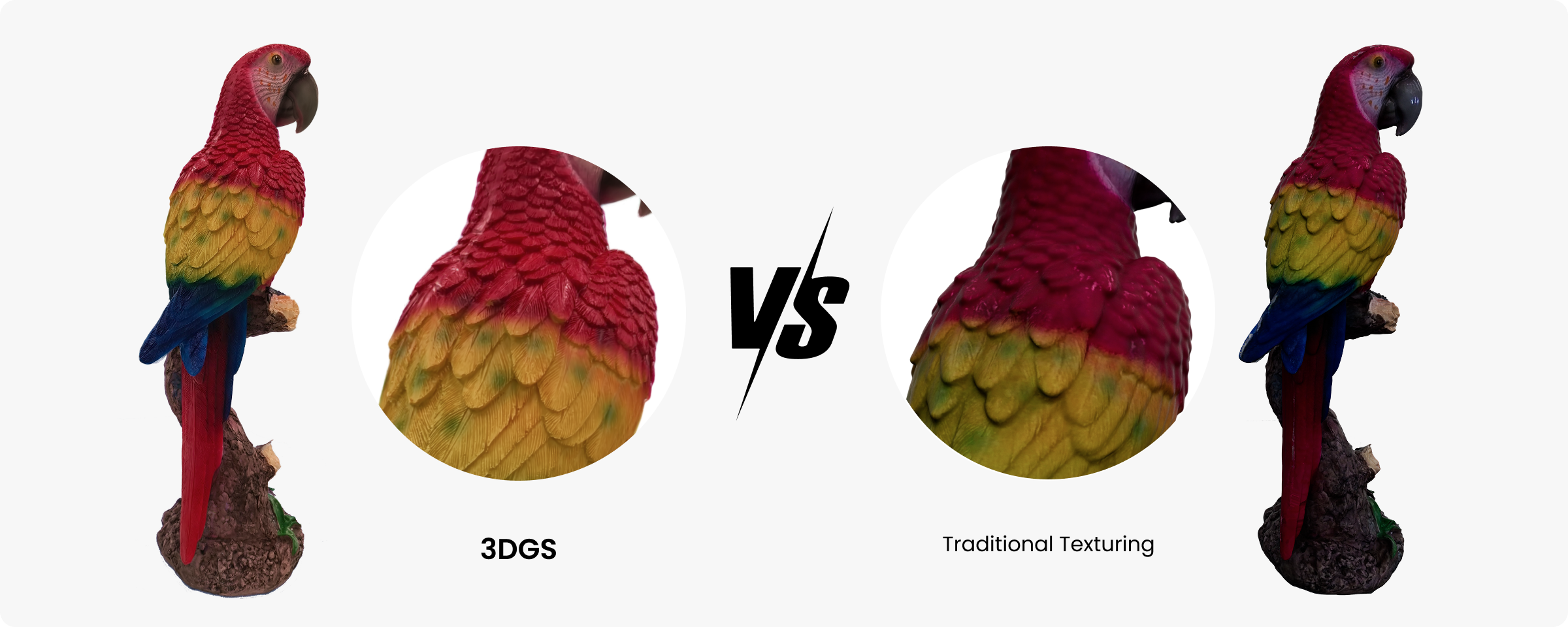

The Next Gen of Color

Capturing Light, Not Just Shape

Traditional mesh scanning fails to represent translucency, reflections, and volumetric details like hair or fabric. POP 4 uses 3DGS to encode how light actually interacts with materials, digitizing the visual essence that UV-mapped textures simply can't reach.

4 Hours of Pure Wireless Freedom

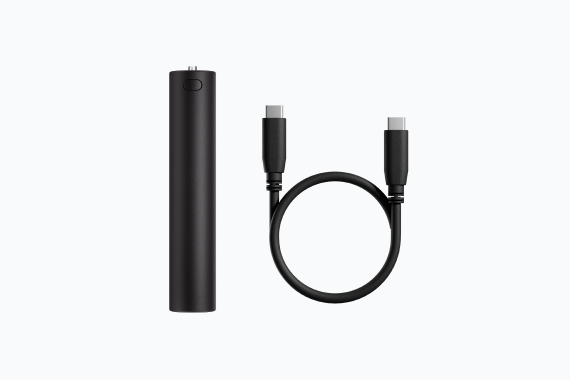

With wireless connectivity, outdoor-ready performance, and a portable 5500 mAh battery grip for mobile operation, POP 4 makes it easy to provide up to 4 hours of continuous scanning.

*Premium Edition Only.

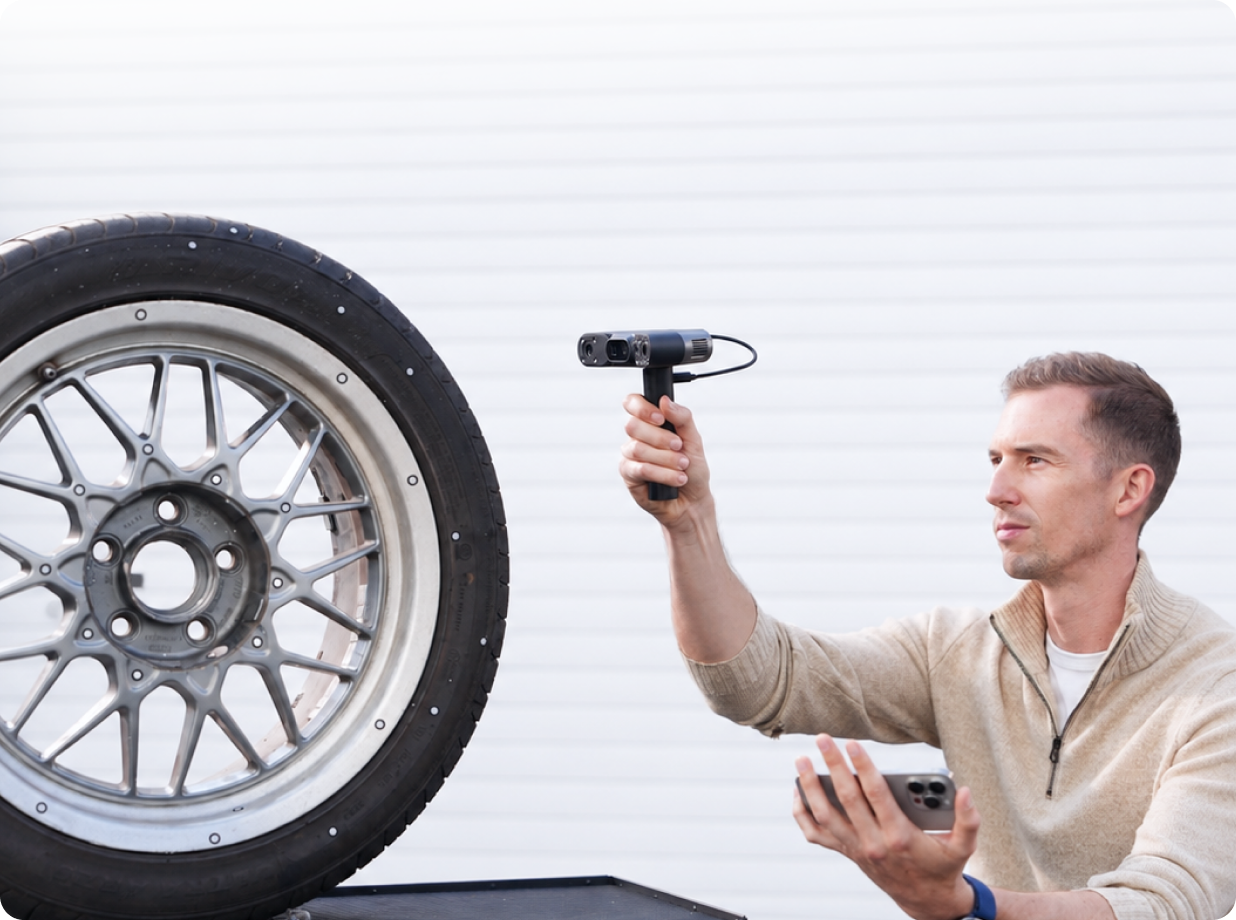

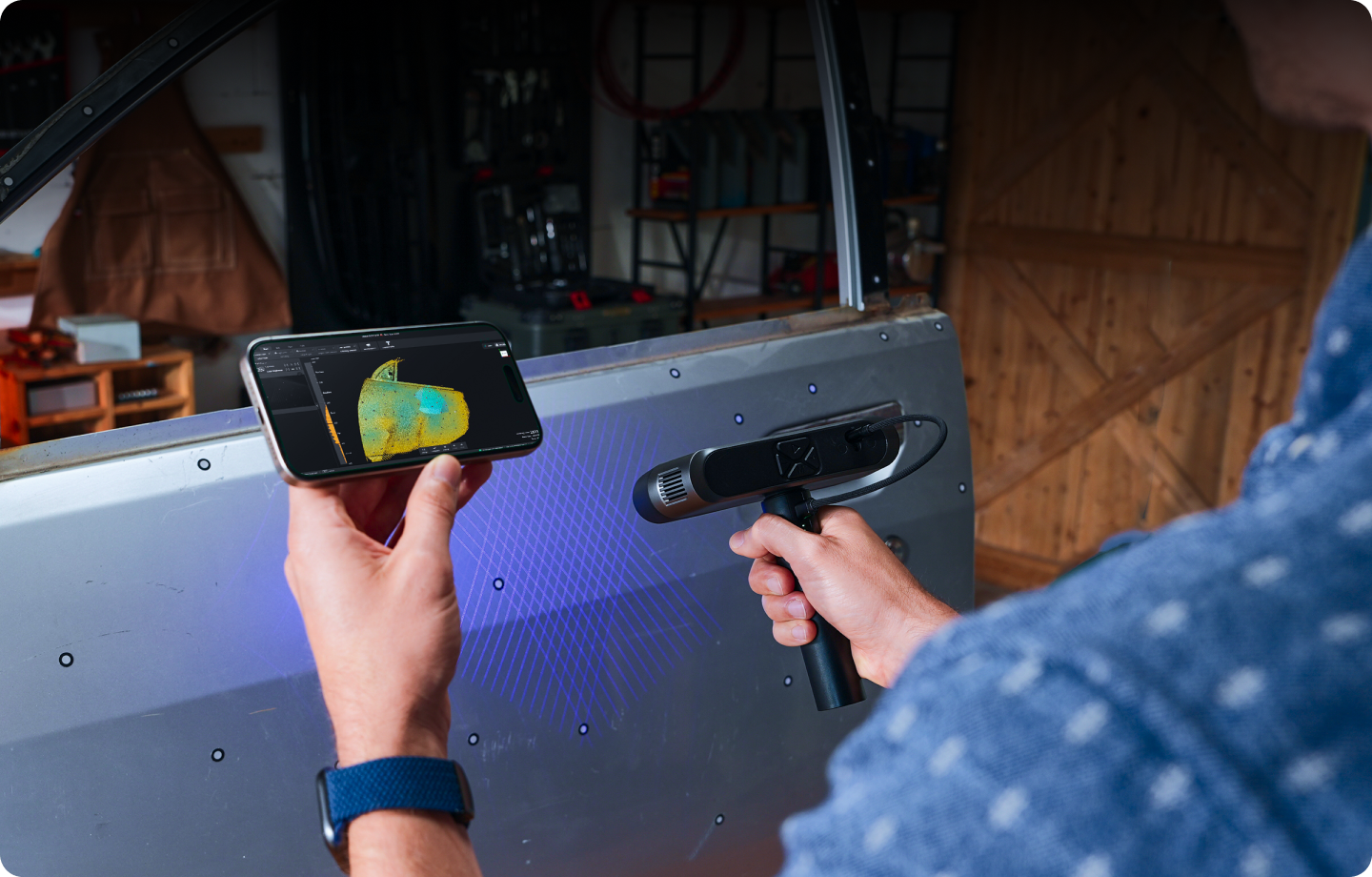

Wireless & Portable Freedom

Leave the PC behind and take the POP 4 mobile to perform infrared light scans, using your smartphone's Wi-Fi (iOS and Android) to connect. For maximum detail, stream blue laser scans powered by your PC directly to your mobile device using Revo Mirror*.

*Works on: Windows, macOS, iOS, Android

Outdoor Scanning

Scan anywhere, even in direct sunlight up to 100,000 lux. POP 4’s high-intensity VCSEL projector emits speckled infrared patterns resistant to interference from ambient light, enabling quick and reliable outdoor scans.

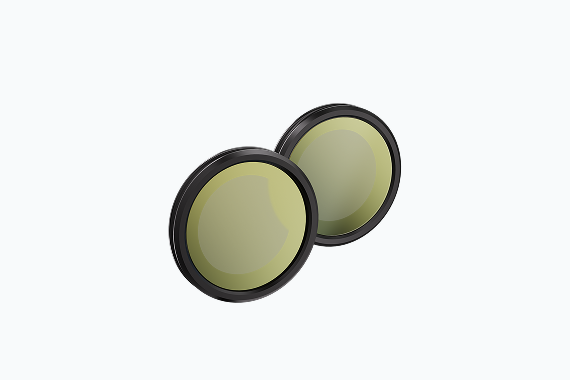

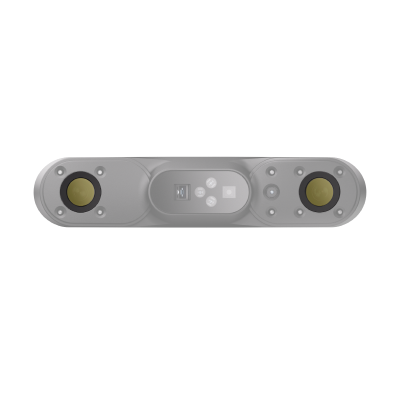

You can even perform detailed blue-laser scans outdoors in up to 100,000 lux with the Outdoor Blue Filter.*

*The Outdoor Blue Filter included in Premium Edition.

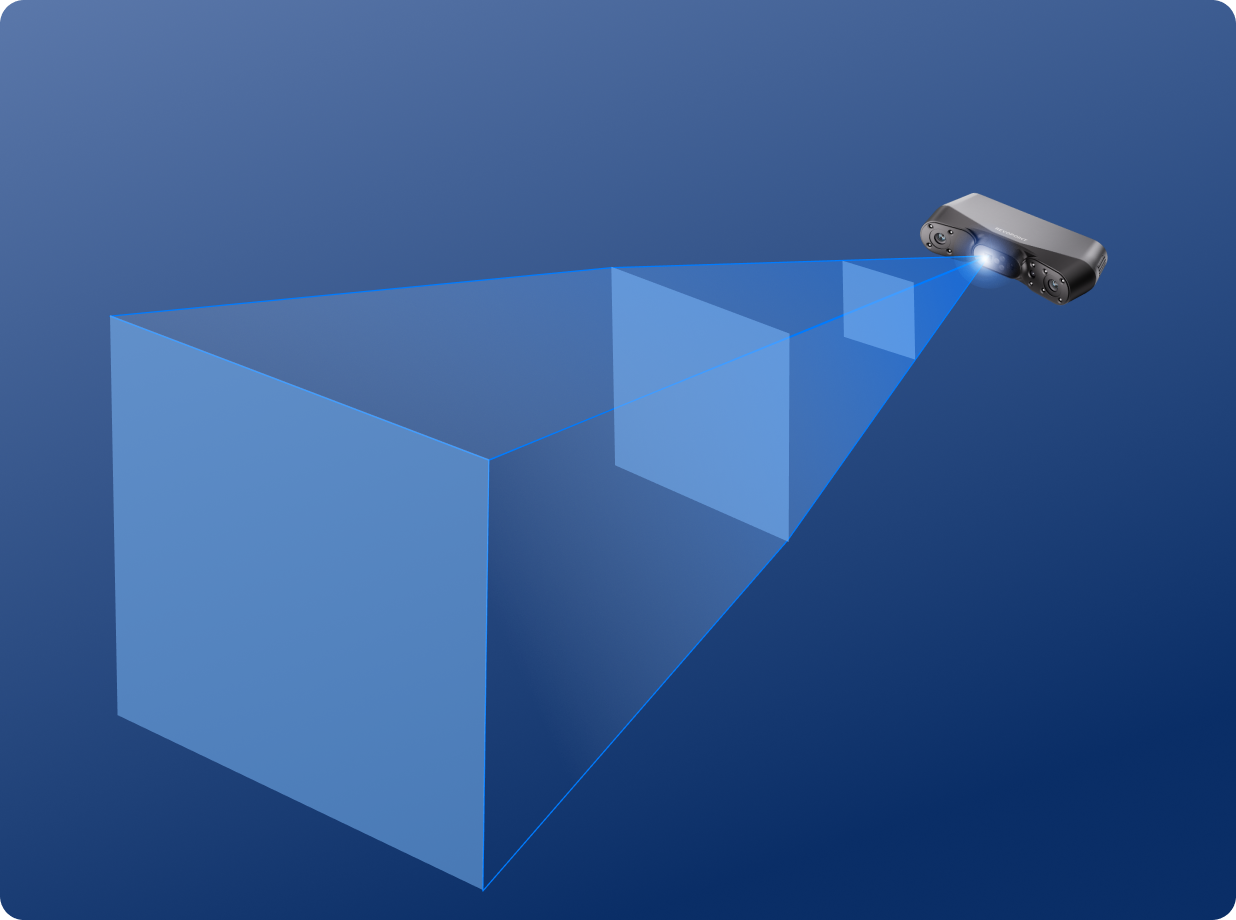

Near-to-Far Coverage

Get in close for detailed blue laser scans at 200 mm or switch to VCSEL and pull back for rapid large-area scans at up to 800 mm away.

Rapidly scan flat, shiny, or dark surfaces
— Without Spray

Whether it's a deep black car rim, a reflective metallic trophy, or a complex mechanical part, POP 4 captures it all directly. No more messy cleanup, no more scanning sprays.

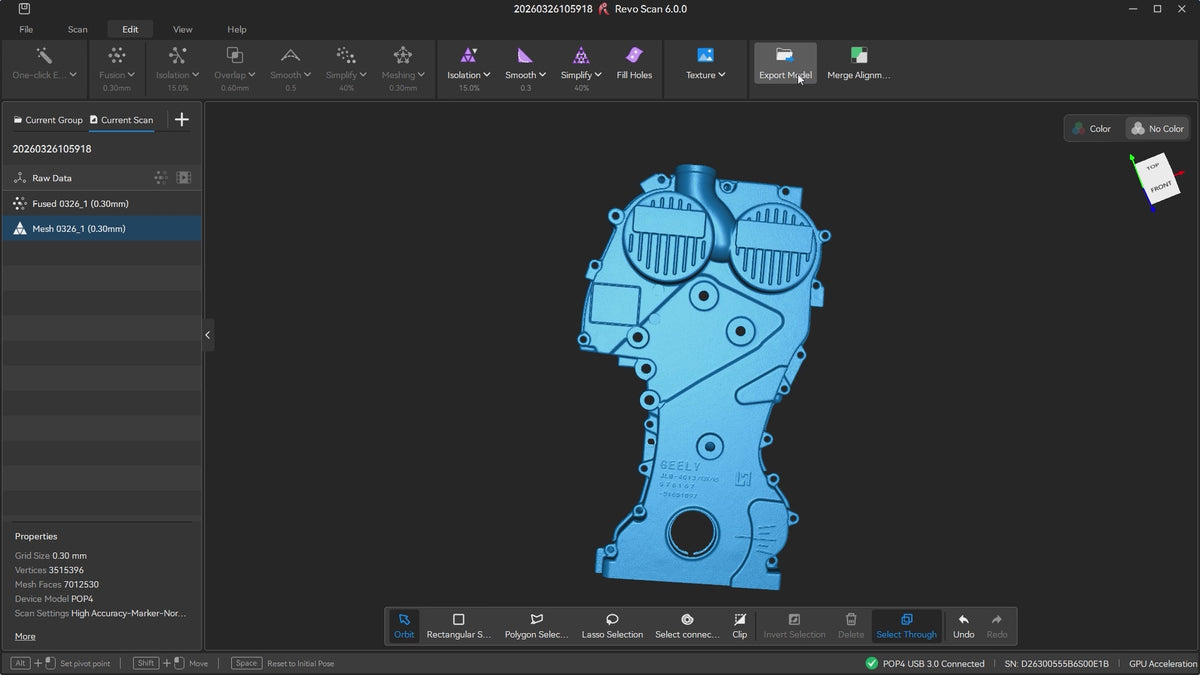

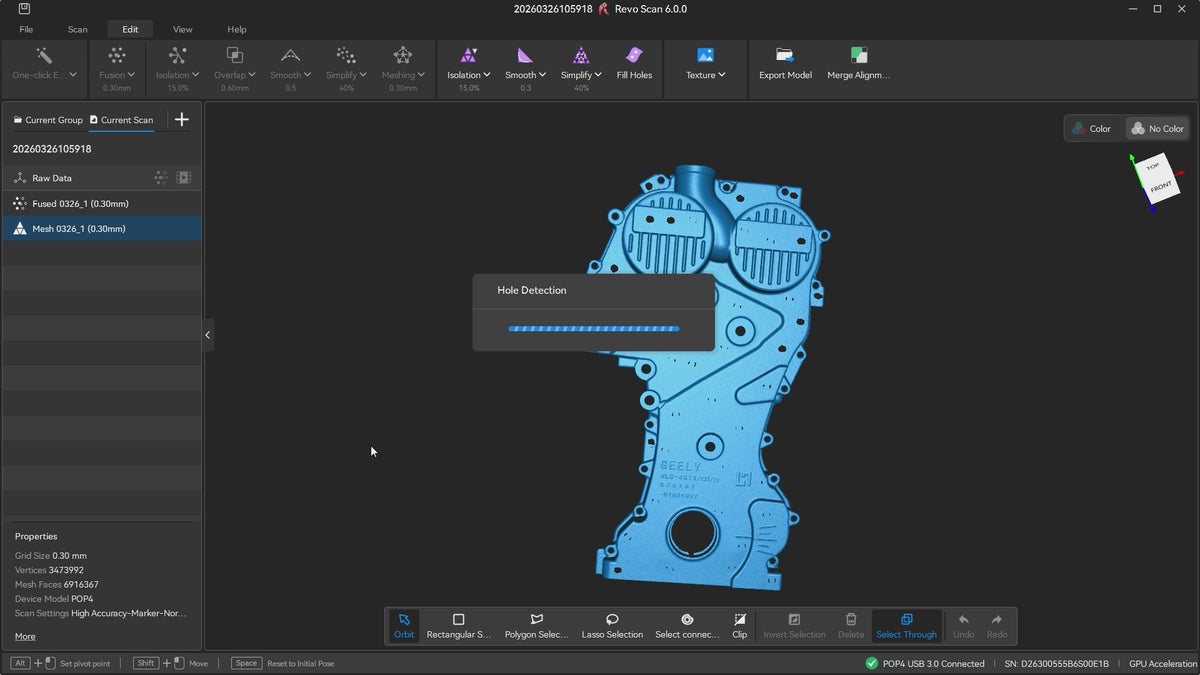

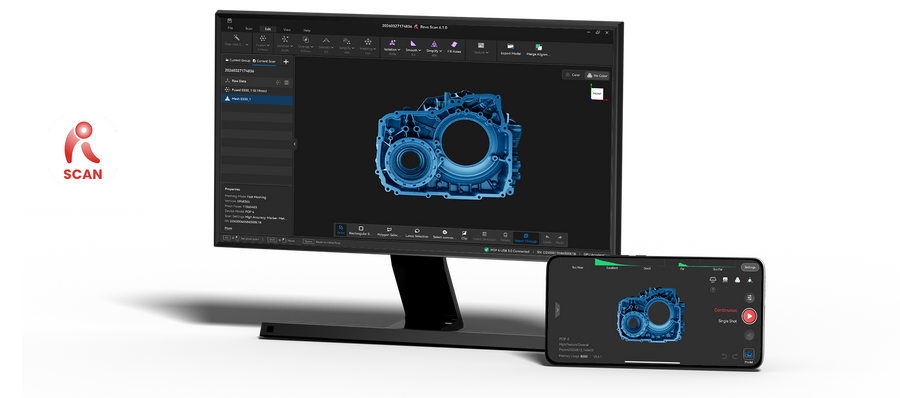

Revo Scan 6 Free Scanning Software

POP 4 with Revo Scan 6 lets you intuitively capture detailed point clouds and refine them automatically or with advanced manual tools. You can clean, smooth, and perfect your model with powerful editing features, then export in formats supported by all major professional software for seamless use in CAD, 3D printing, reverse engineering, and digital modeling.

Works On: Windows, macOS, Android, iOS
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX , Splat

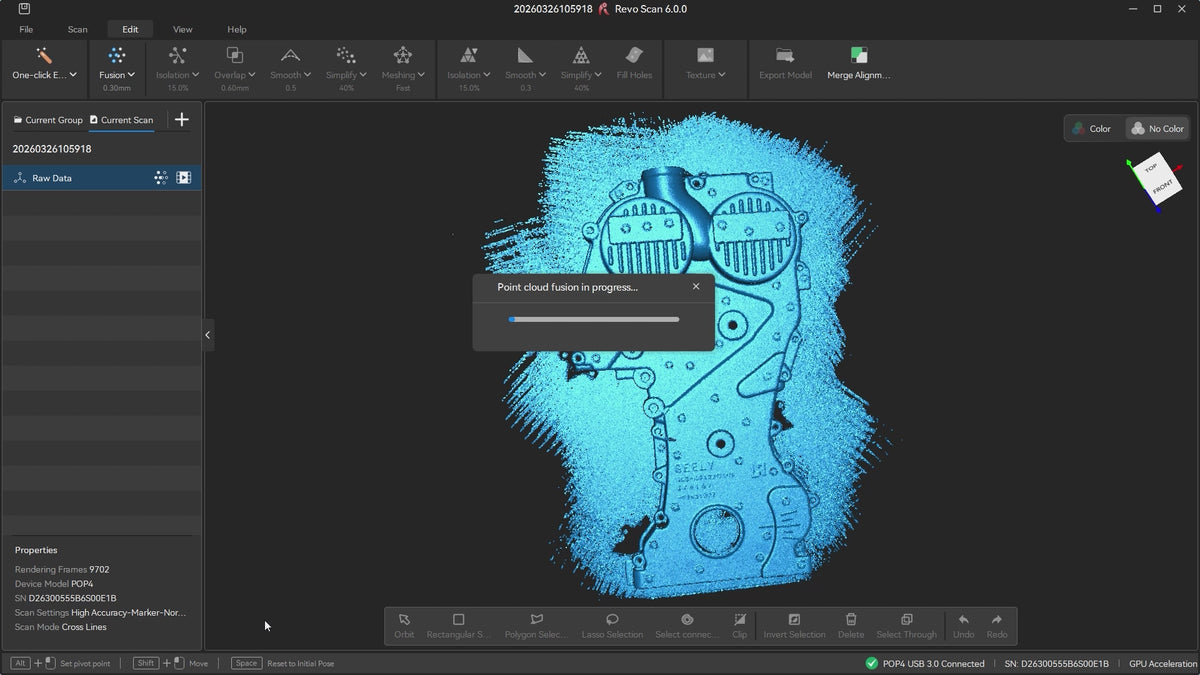

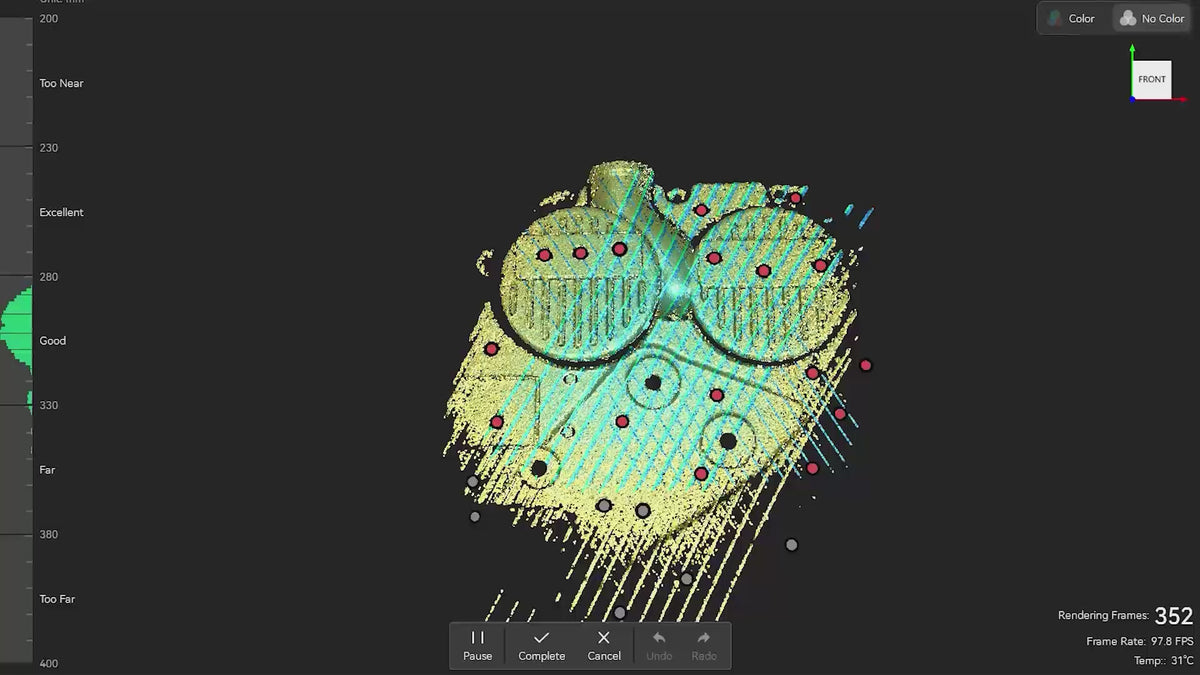

Scan Process Edit Export

Granular scan settings let you control every aspect of the scanning process, ensuring optimal point cloud capture.

Redefining the 3D Workflow

A revolutionary breakthrough over Revo Scan 5. Revo Scan 6 completely reinvents 3D processing with a visual-first interface, delivering the ultimate frictionless experience from raw scan to finished model.

Use Exported Scans In…

Such as Geomagic, SolidWorks, Blender, ZBrush, Maya, 3ds Max, Rhino, AutoCAD, Fusion 360, CATIA, Ultimaker Cura, PrusaSlicer, Bambu Studio, Chitubox, Simplify3D and more.

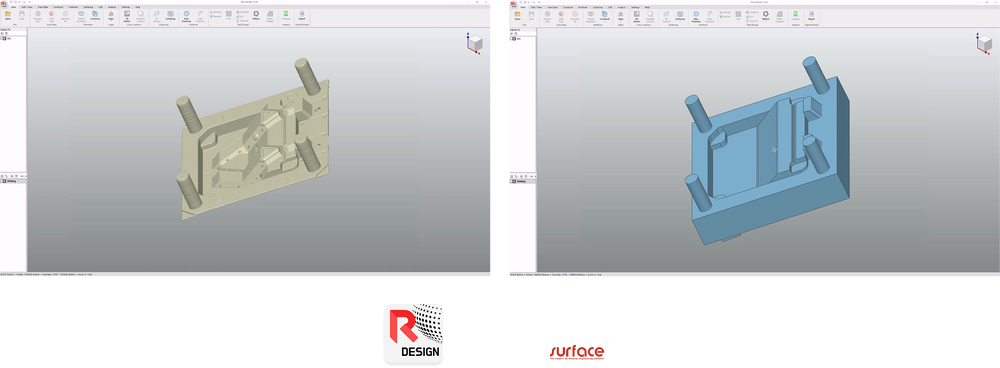

Revo Design

Powerful tools for transforming scans-to-CADs, reverse engineering, surface modeling, and basic design projects*.
*Revo Design is sold separately.

Revo Measure

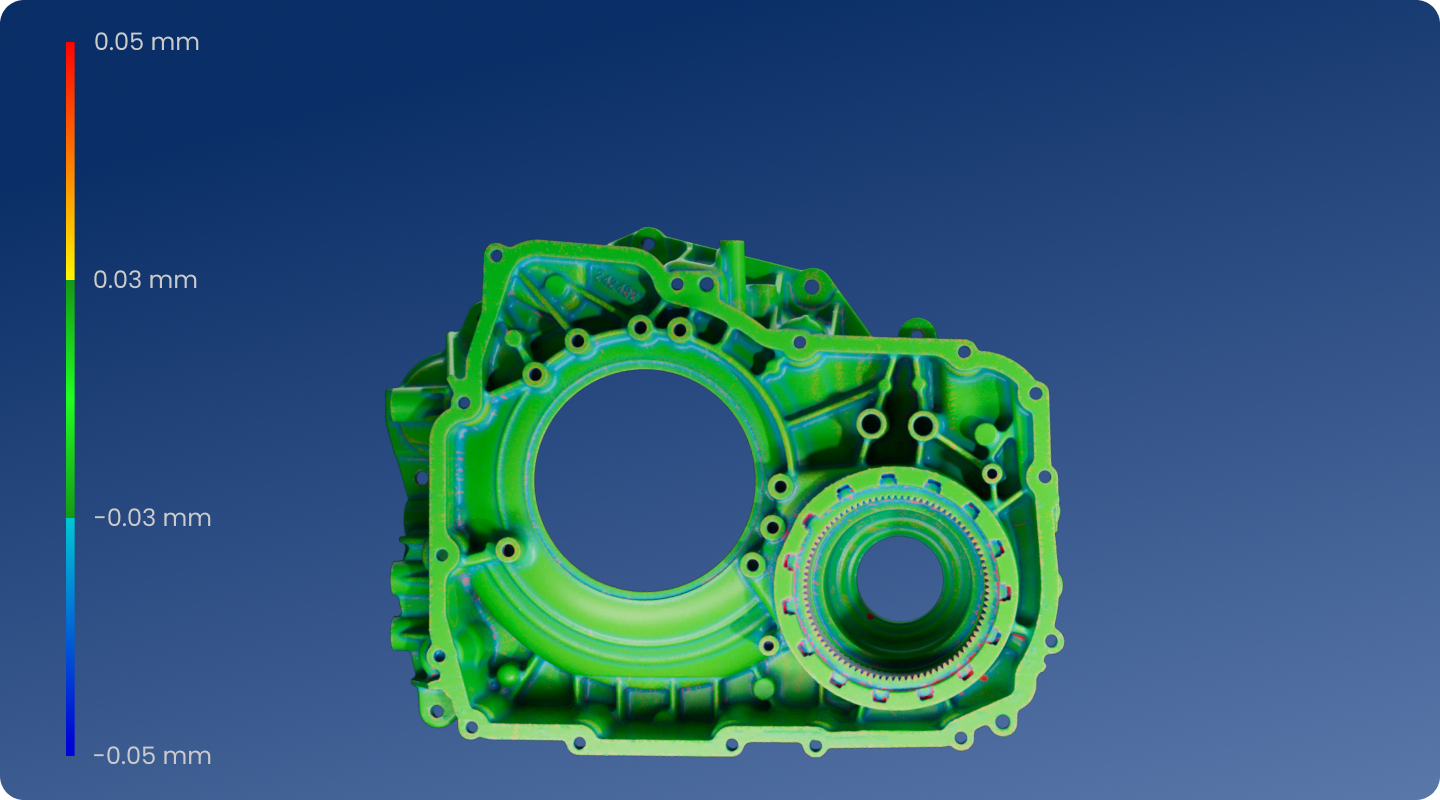

Evaluate objects' shape, dimensions, and quality by comparing point cloud or mesh data to CAD models or drawings.*
*Revo Measure is sold separately.

Captured with POP 4

Explore More >

Abstract Color Bust

Female Figure

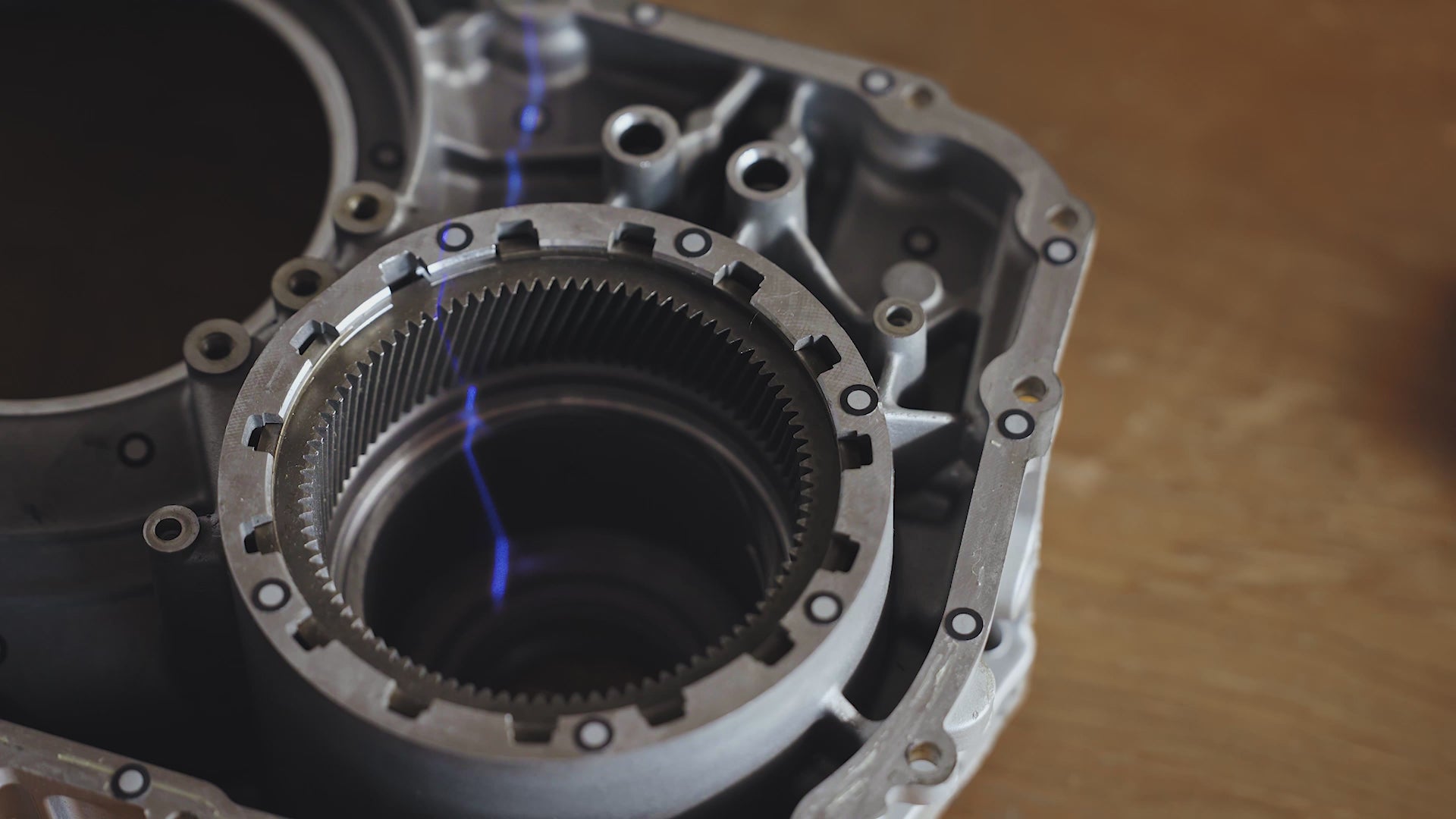

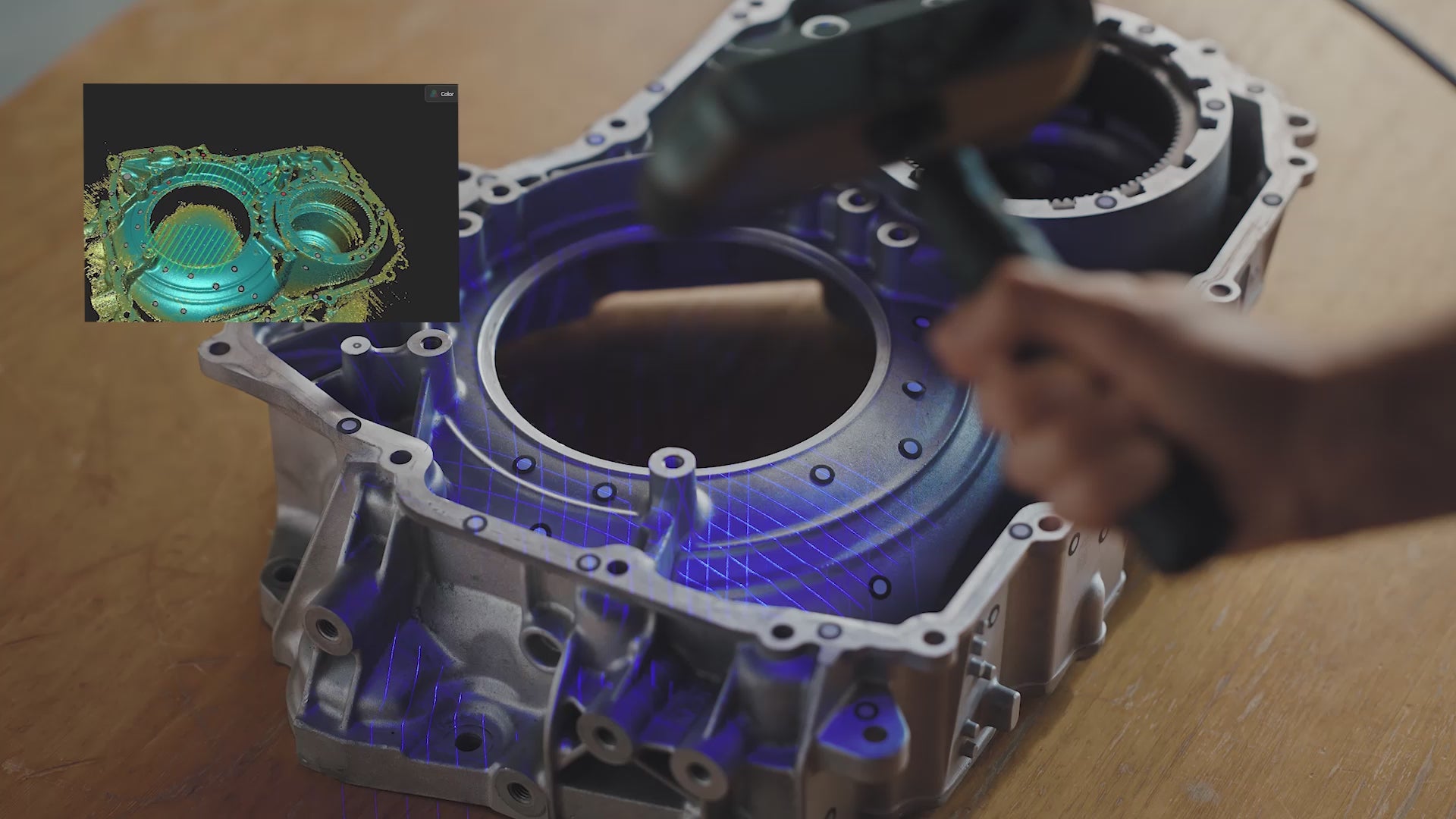

Transmission Case Part

Indian Woman Statue

Professional Solutions

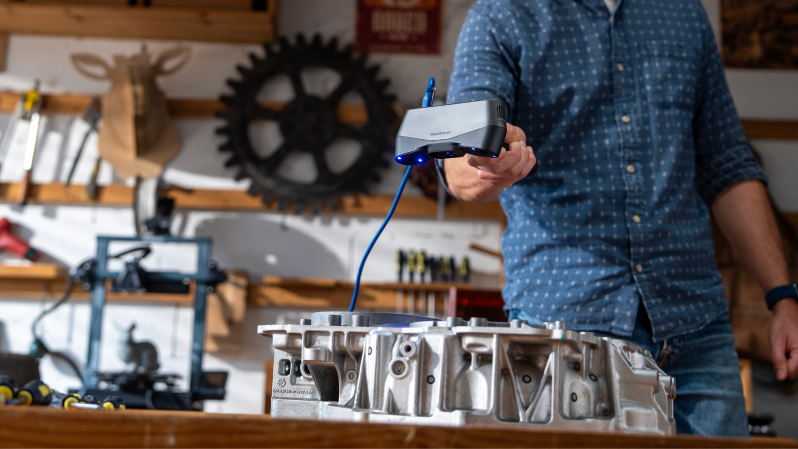

Reverse Engineering

Fix broken parts, upgrade designs, or restore vintage items with volumetrically accurate 3D data ready for scan-to-CAD conversion in Revo Design or Geomagic Design X.

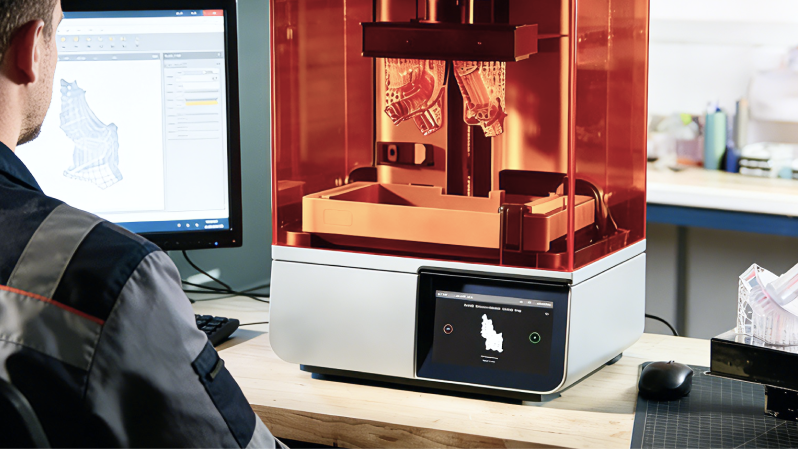

3D Printing

Whether you're outdoors or in your workshop, POP 4 effortlessly creates 3D models that seamlessly integrate into your 3D printing workflow.odeling

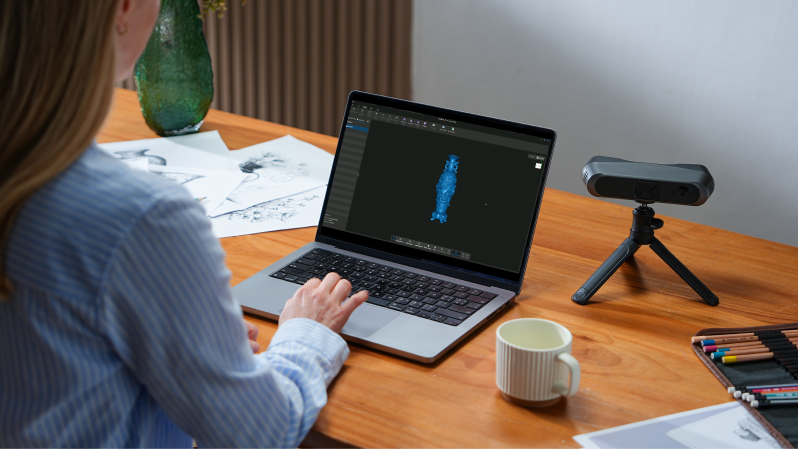

Product Design

Transform your workflow with rapid design iterations and seamless product customization, driven by POP 4’s accurate dimensional data and fast capture speeds.ling

Animation & Digital Media

Accurately capture the shapes and textures of characters, props, and environments, reducing manual modeling time and costs in CGI, game development, and VR.

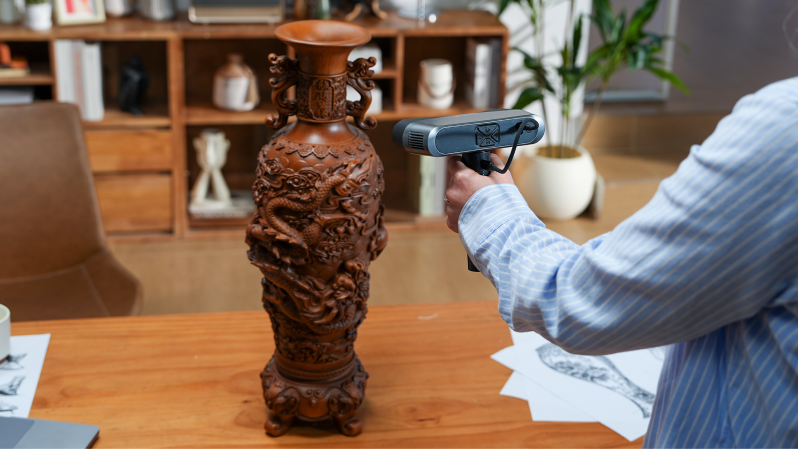

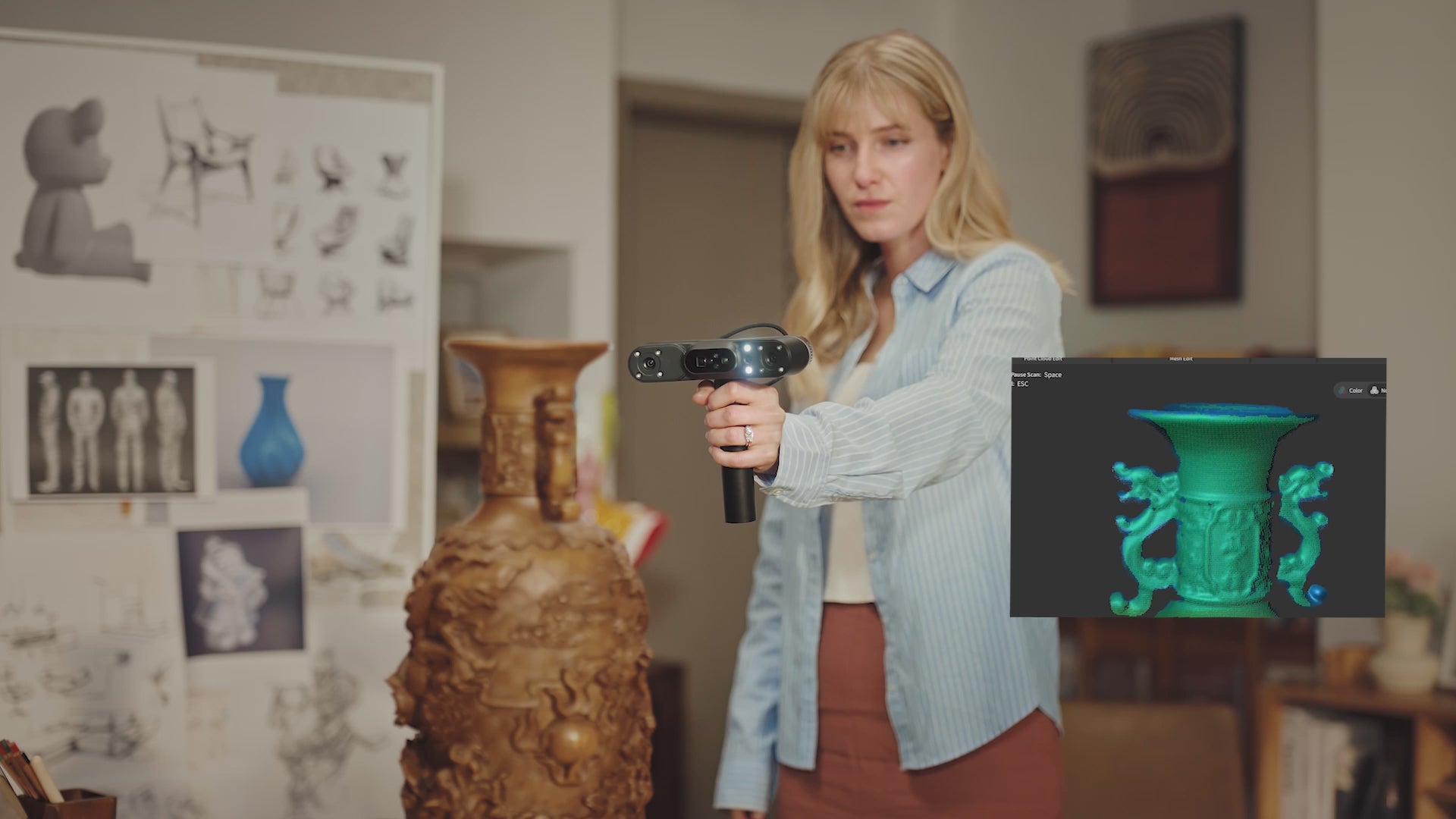

Historical Preservation

Created detailed, colored scans of artefacts for restoration, preservation, or teaching, enabling experts and students alike to study every feature with clarity.

Why Choose POP 4

"Built as an all-round 3D scanning solution, POP 4's hybrid blue laser and near-infrared scanning… [is] designed to capture everything from fine details to larger workpieces, including challenging black and shiny surfaces."

"The Revopoint POP 4 is one scanner that works on shiny metal, dark surfaces, and everything in between... opening up work that previously required considerably more expensive equipment."

"With the Revopoint POP 4, this forced compromise is a thing of the past. The new hybrid scanner combines blue laser and infrared technology in one compact device – AI-supported, wireless and ready for almost any scenario."

Reviews on YouTube

Go to Revopoint's Channel >

Specifications

Name	POP 4
Scanning Type	Handheld and Desktop
Technology	Blue Multi-line Laser Near-Infrared Full-field Structured Light and VCSEL Structured Light
Scannable Object Size	Small to Medium
Single-frame Accuracy, up to*	Line Laser Accuracy: 0.03 mm Full-field Structured Light Accuracy: 0.08 mm VCSEL Structured Light Accuracy: 0.10 mm @ 300-500 mm, 0.20 mm @ 500-800 mm
Volumetric Accuracy	0.03 mm + 0.05 mm × L (m) L is the length of the object. (Note: Using Multi-line Laser Mode)
Fused Point Distance, up to	0.05 mm
Working Distance	200 - 400 mm (Multi-line Laser Mode) 250 - 500 mm (Full-field HD Mode and Hybrid HD) 300 - 800 mm (VCSEL Mode)
Single Capture Area at Nearest Distance	131 × 134 mm at 200 mm
Single Capture Area at Furthest Distance	312 × 269 mm at 400 mm (Multi-line Laser, Full-field) 505 × 538 mm at 800 mm (VCSEL mode)
Angular Field of View (H × V)	46 × 37°
Minimum Scan Volume	10 × 10 × 10 mm
Maximum Scan Volume	2 × 2 × 2 m
Scanning Speed, up to	Multi-line Laser Scan: 105 fps (NVIDIA GPU), 60 fps (CPU) Full-field Structured Light Scan: 20 fps VCSEL Structured Light Scan: 30 fps
Point Return Rate	Multi-line Laser: 2,000,000 Points/s Full-field Structured Light Scan: 5,000,000 Points/s
RGB Camera Resolution	1.3 Megapixels
Color Scanning	Yes
Tracking Methods	Feature, Marker, Global Marker, Color
Outdoor Scanning*	Yes Lighting Environment Requirements, Multi-line Laser ≤ 50,000 lux, VCSEL ≤ 100,000 lux (When using the multi-line laser mode with an outdoor filter, scanning is possible in lighting conditions of up to 100,000 lux.)
3D Light Source*	30 Blue Cross Laser Lines 1 Blue Single Laser Line (Deep-Hole Mode) Near-Infrared Full-field Structured Light Near-Infrared VCSEL Structured Light
Fill Lights*	8 (4 Infrared LEDs+4 Blue LEDs)
White Flash LEDs*	2
CPU	/
Built in Chip Computing	Depth Map Computing
Buttons	4

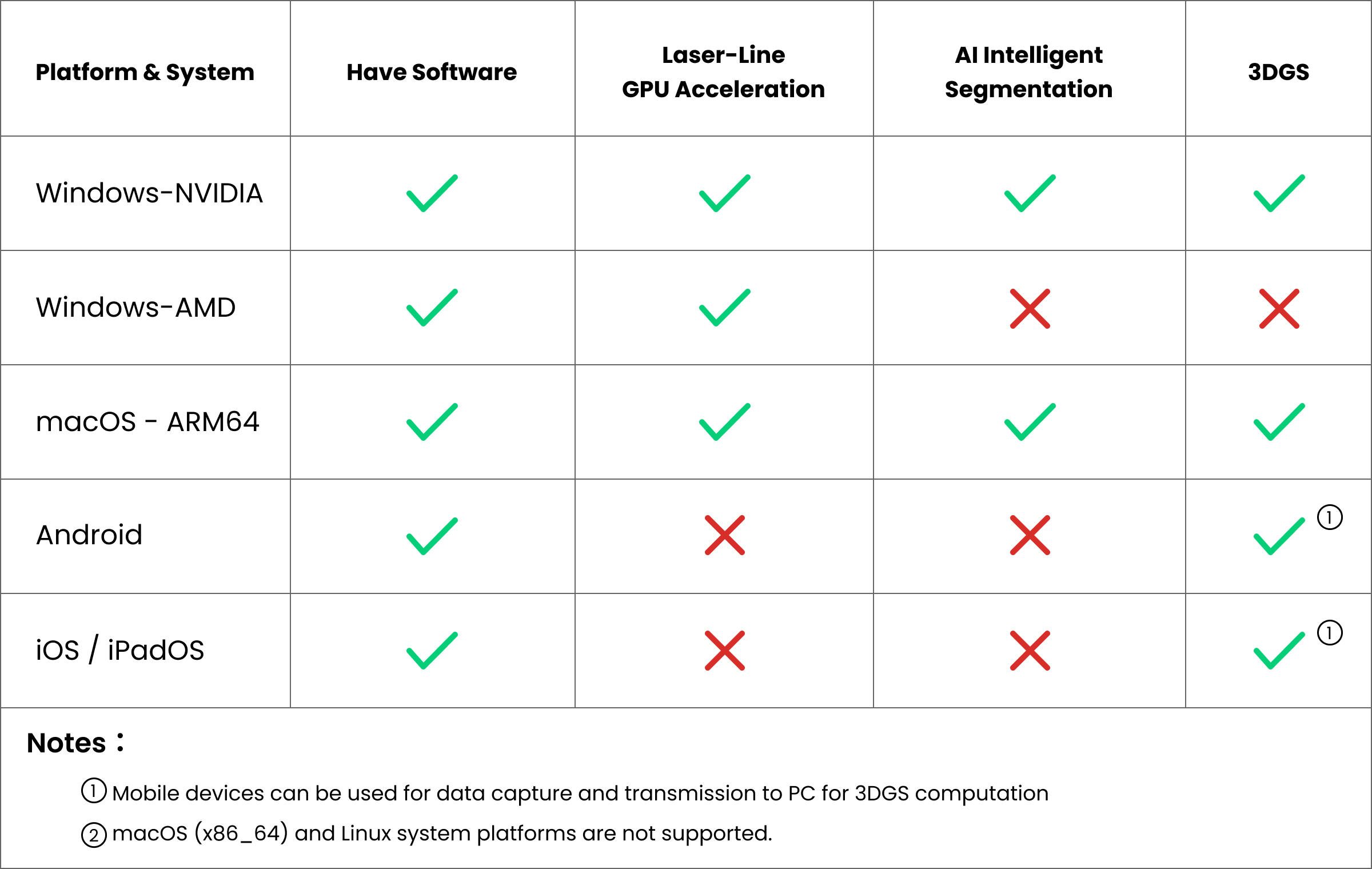

Minimum PC Requirements*	macOS CPU: M1 Pro/Max/Ultra RAM ≥ 16 GB Windows CPU: Intel i7 13th Gen or AMD Ryzen 7 5800 RAM ≥ 16 GB GPU: NVIDIA GeForce RTX 3060 (8 GB) Note: ① If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz. ② Supports NVIDIA GPU, AMD GPU, and Apple Mac GPU.
Recommended PC Requirements*	macOS CPU: M3 Pro/Max/Ultra or better RAM ≥ 24GB Windows CPU: Intel i9 12th Gen or better RAM ≥ 32 GB GPU: NVIDIA RTX 4060 (8 GB) or better
Mobile Requirements	① Android CPU: Snapdragon 8 Gen1, Dimensity 9000, Kirin 9000S Equivalent performance or better RAM: 12 GB or better System Version: Android 11 or better Storage: 128 GB or better ② iPhone Models after iPhone X; System Version: iOS 14.0 or better; RAM > 4 GB; Storage ≥ 64 GB ③ iPad 10th Gen iPad or later Note: Multi-line scanning mode does not support standalone mobile phone operation. It requires the scanner to connect to a PC via WiFi to work, with the screen being cast to the mobile phone in real-time. Full-field scanning mode and VCSEL scanning mode can be used independently with a mobile phone.
Compatible Operating Systems	Windows 10/11 (64 bit), Android, iOS, macOS 11.0 or batter
Output File Formats	PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, Splat
Ready to Print 3D Models	✔
Wi-Fi	6
Bluetooth	4.1

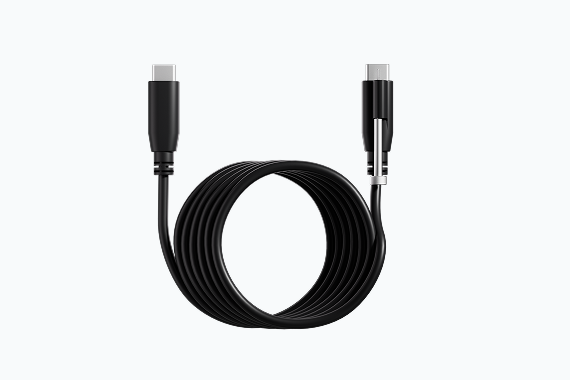

Connector Type	Type-C to Type-C USB 3.0
Power Requirements	DC 5V, 2A
Scanner Weight	286 g
Dimensions (L × W × H)	160 × 30 × 72 mm
Special Object Scanning	Please use scanning spray when scanning transparent or specular surfaces

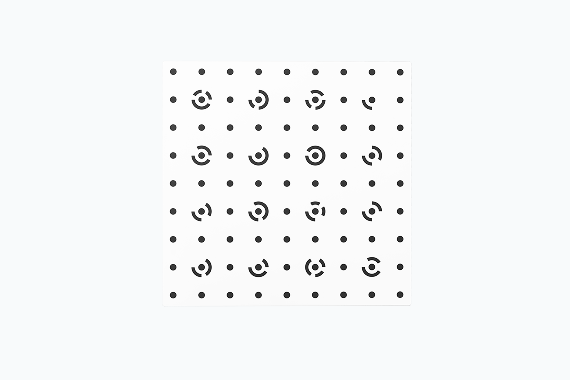

User Recalibration	Yes

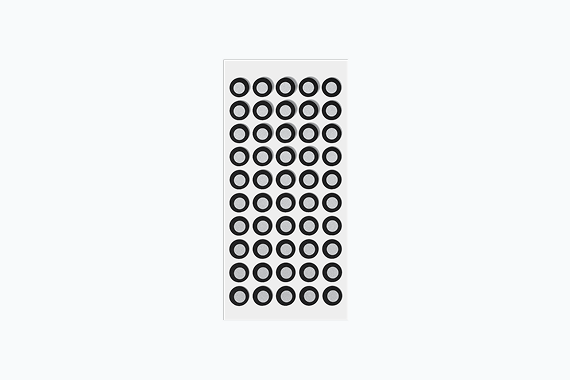

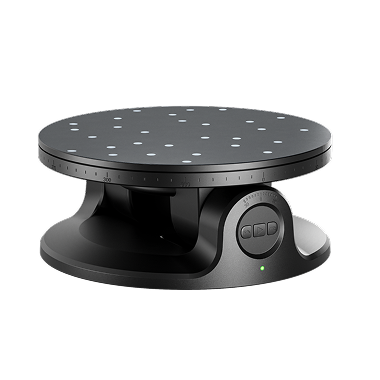

Supported Accessories	Marker Block Kit, Mobile Kit (4th Gen), Dual-axis Turntable (Ⅱ)
Power Bank Capacity	5500 mAh(4 hours of battery life under average power consumption)
Note	1. Accuracy is how close a measured value at a single angle is to the actual (true) value. The date was acquired in a controlled lab environment. Actual results might vary, subject to the operation environment. 2. Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details. 3. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy.
