INSPIRE 2 3D Scanner

Home

/

3D Scanners Comparison

/

INSPIRE 2

Overview

Inspiration in Your Pocket

Reality, Captured Perfectly

0.05 mm + 0.1 mm × L (m)

Scan Dark or Shiny Surfaces

Marker-free, Body Scans, and More

Up to 20,000 lux

Outdoor Scanning

Connect Via Wi-Fi to Mobile Devices

Optical Zoom Function

Real-tone Color Scans

Just an INSPIRE 2 Away from Perfect Scans

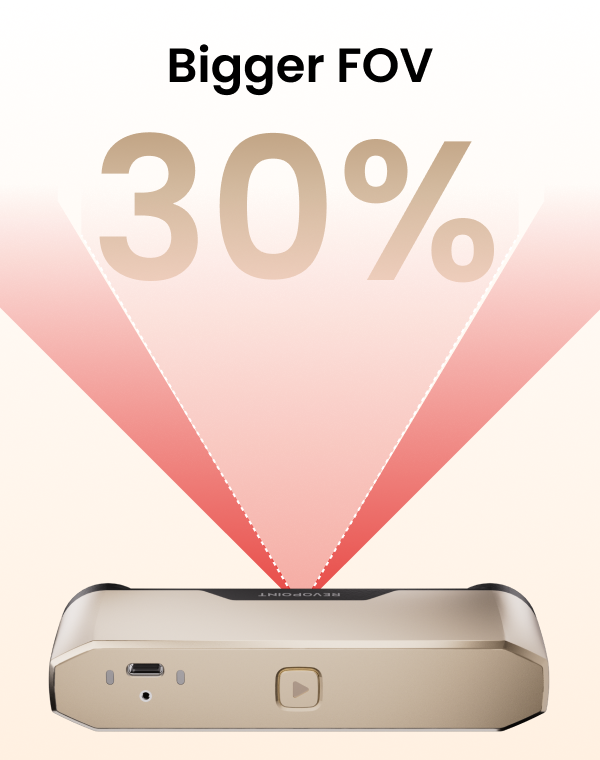

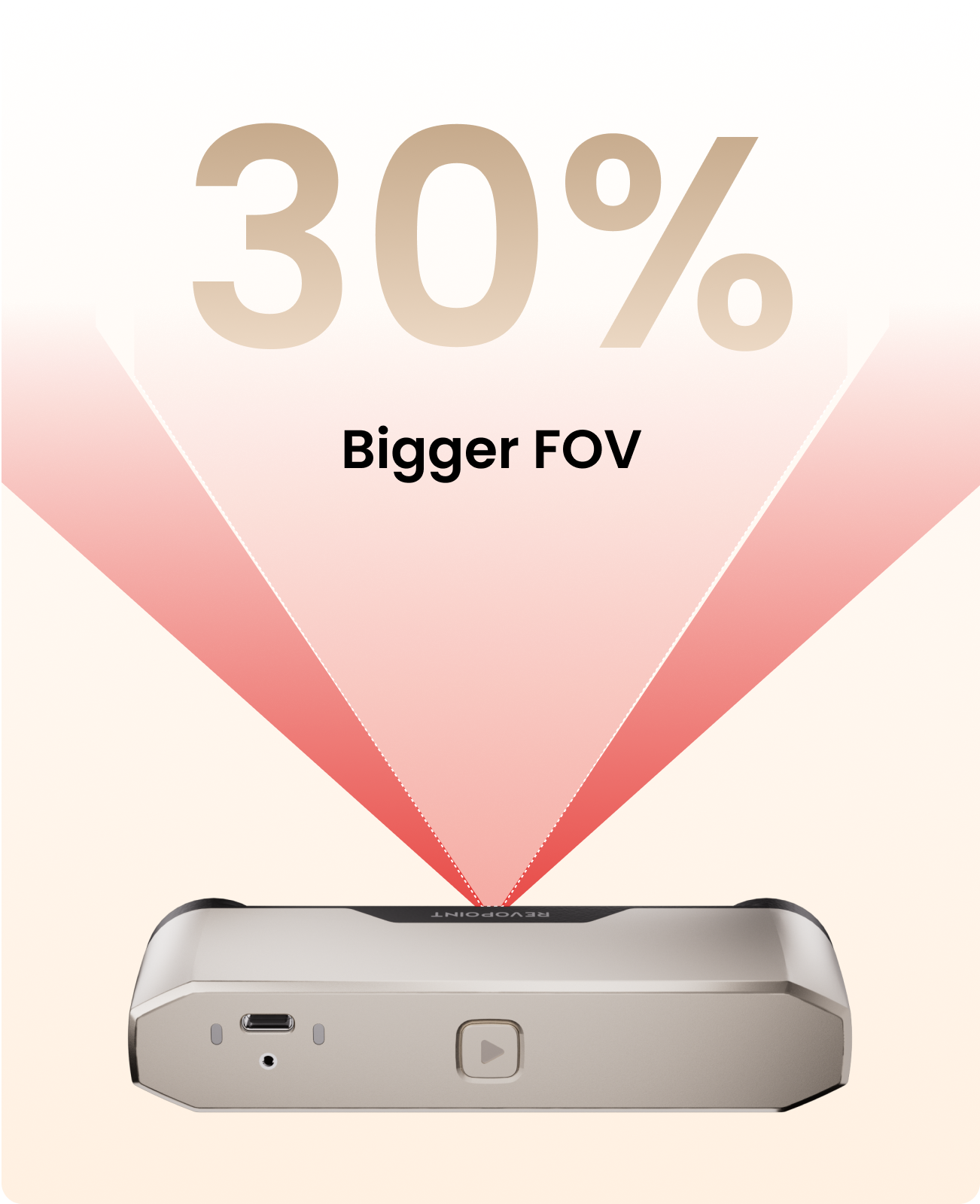

With a fully upgraded dual-mode 3D scanning system, INSPIRE 2 delivers 30% more detail and a 30% bigger capture area for great tracking and accuracy when capturing medium-sized objects.

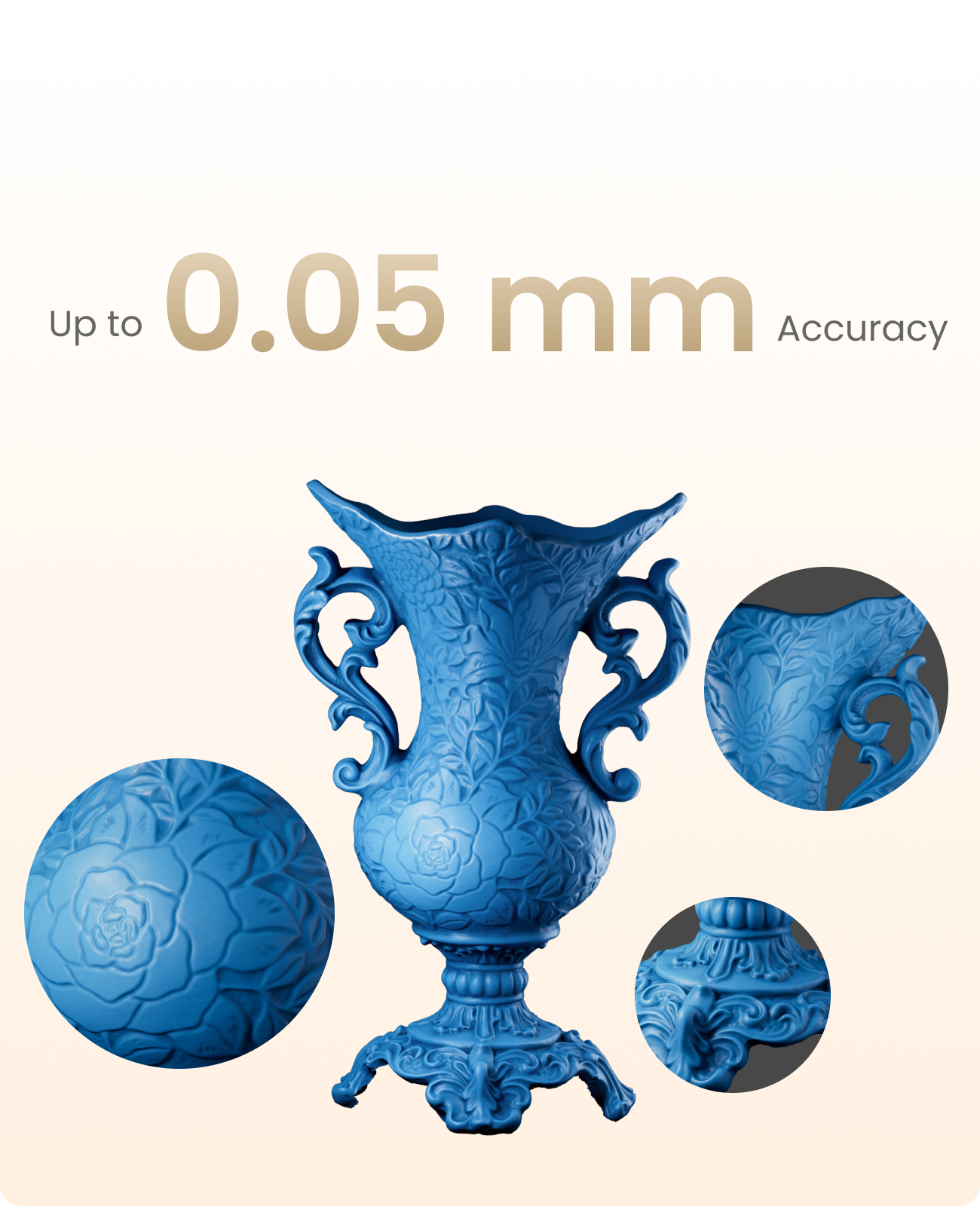

Accuracy:

Up to 0.05 mm

Precision:

Up to 0.03 mm

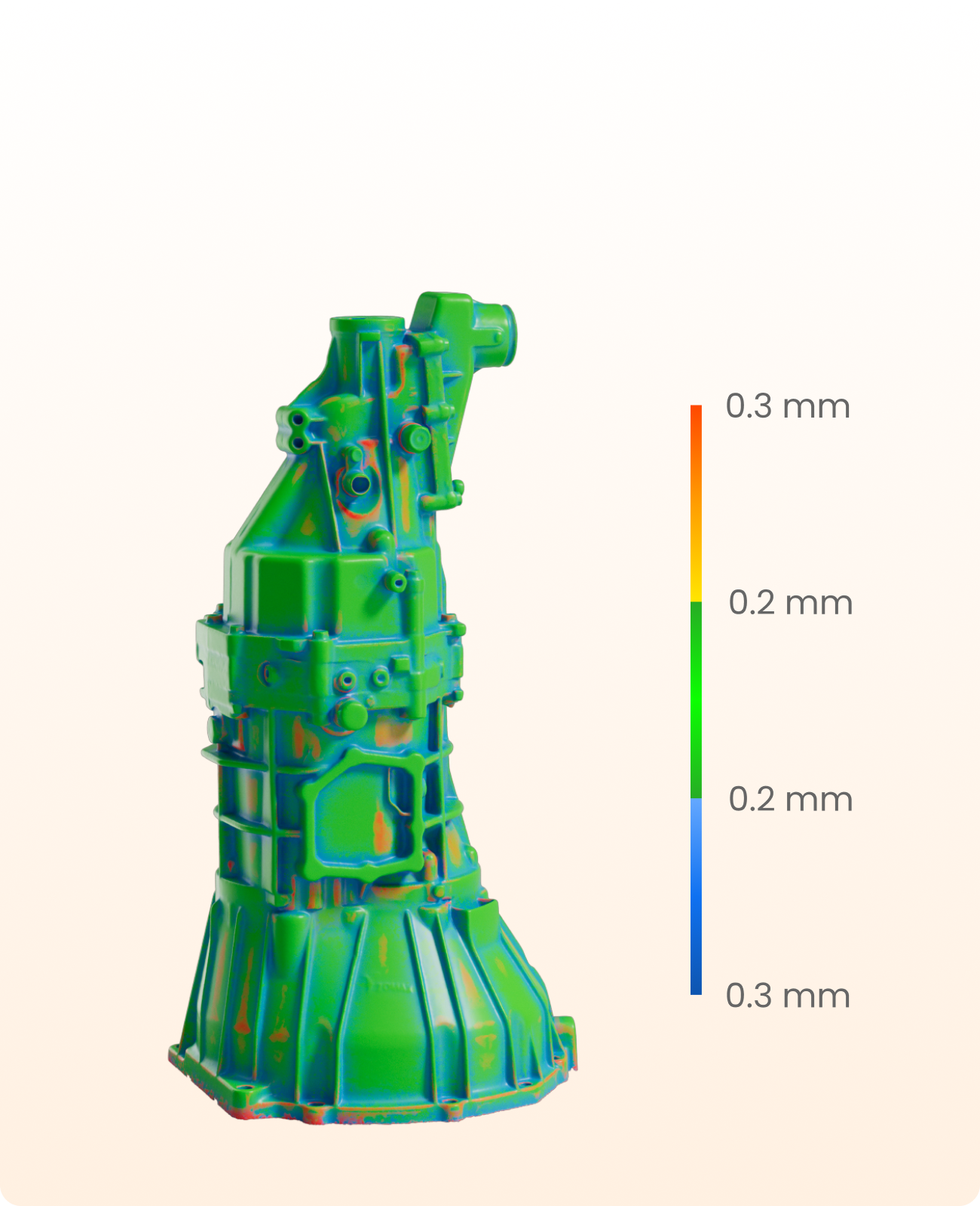

Volumetric Accuracy:

0.05 mm + 0.1 mm × L (m)

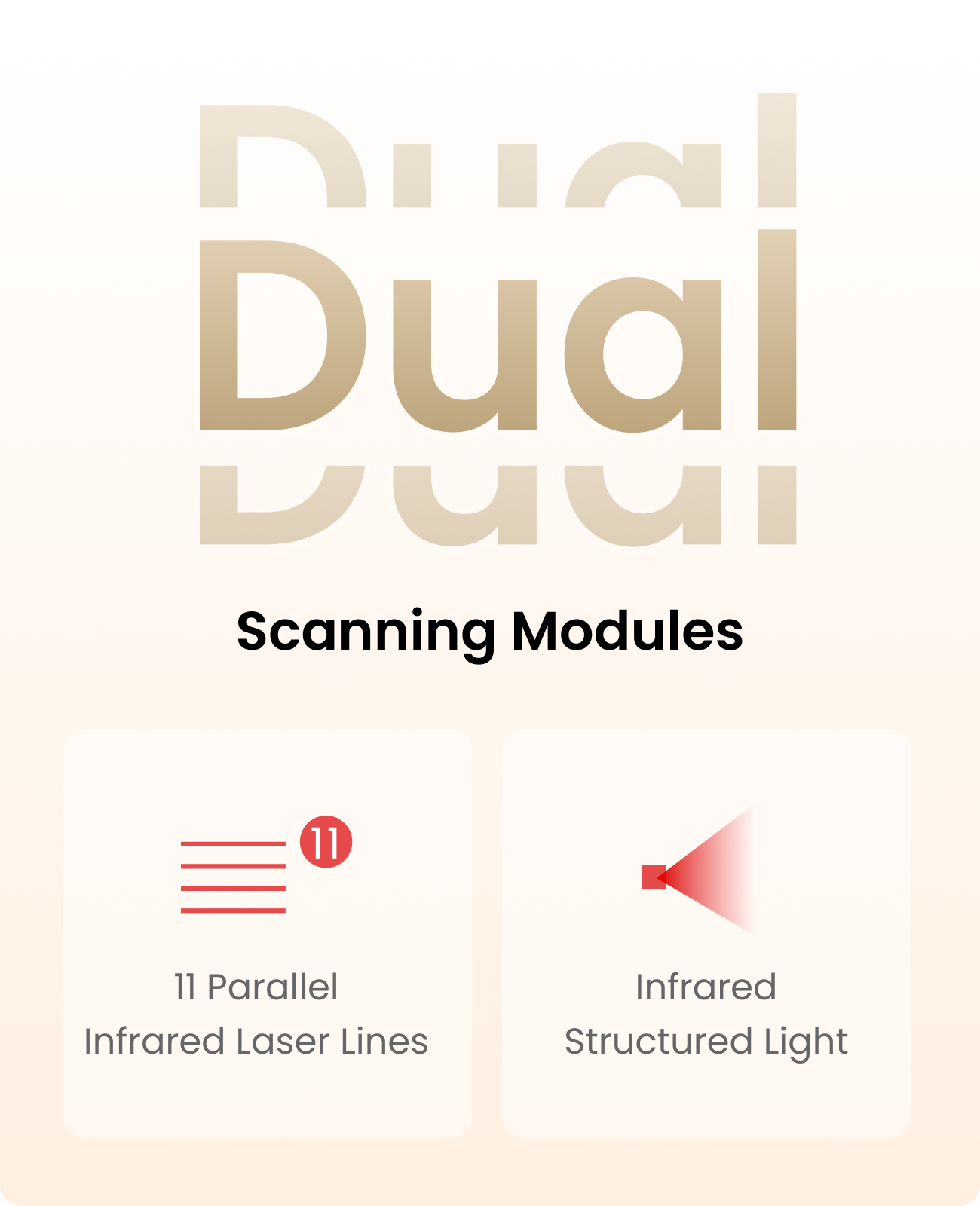

11 Parallel Infrared Laser Lines

Effortlessly capture detailed, dark, or shiny surfaces without the need for scanning spray.

Infrared Structured Light

Rapidly perform body and face scans, and easily capture feature-rich objects without using markers.

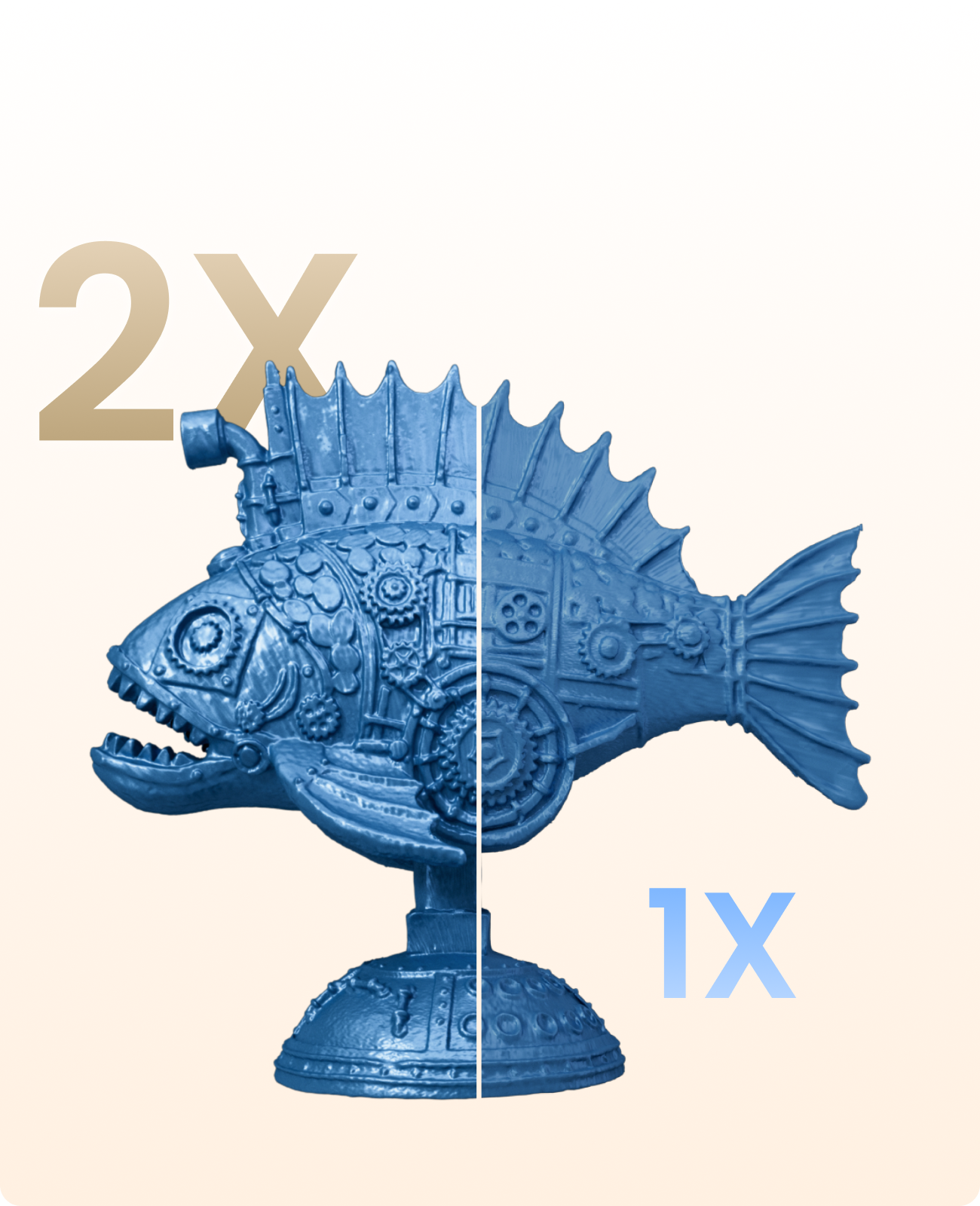

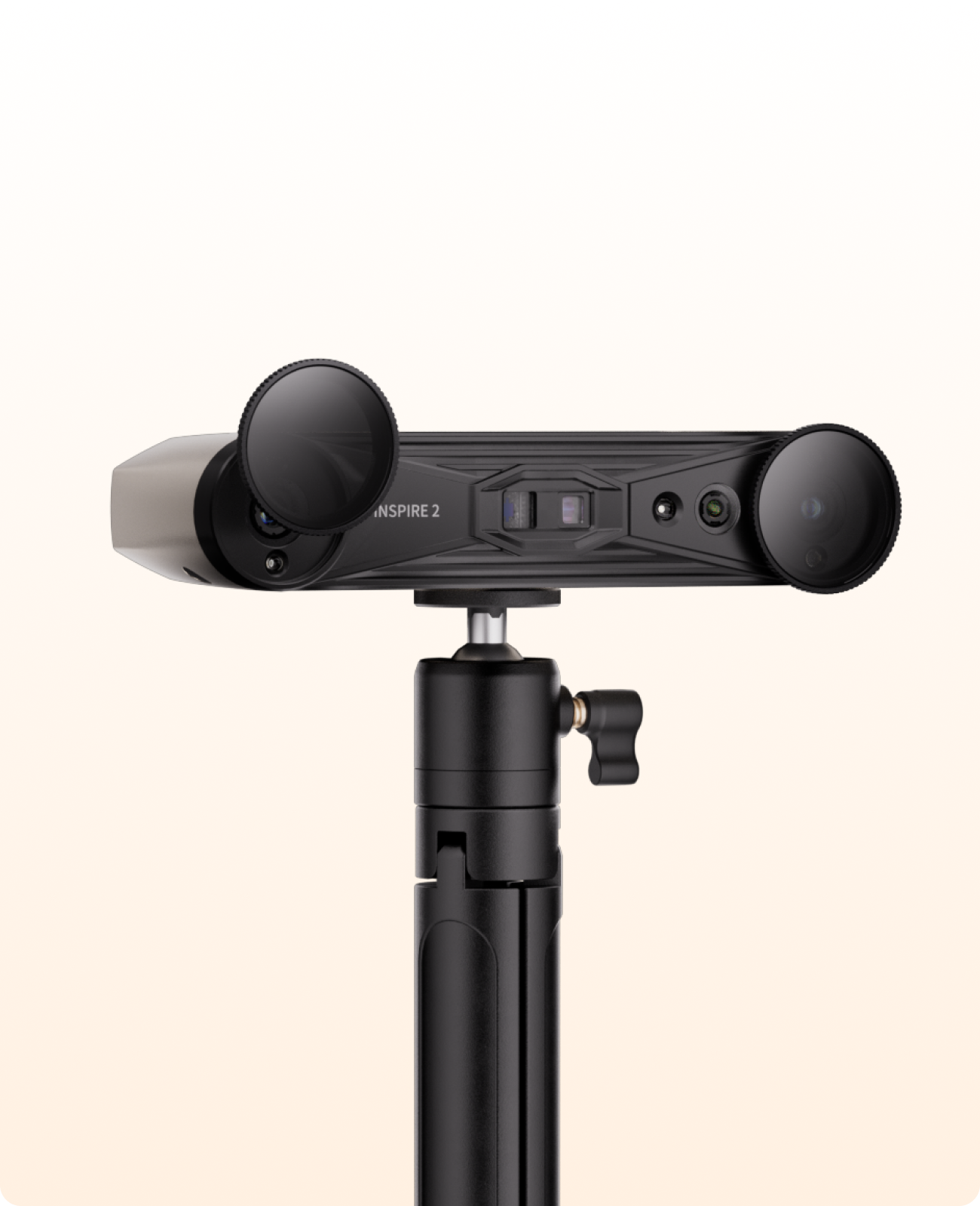

Optical Zooming

Capture mixed-geometry surfaces without worrying about missing detail, using the projector's optical 1.5x and 2x zoom functions. It focuses the scanner's structured light, enabling the easy capture of detailed areas when dealing with multi-surfaced complex objects.

Total Scanning Freedom

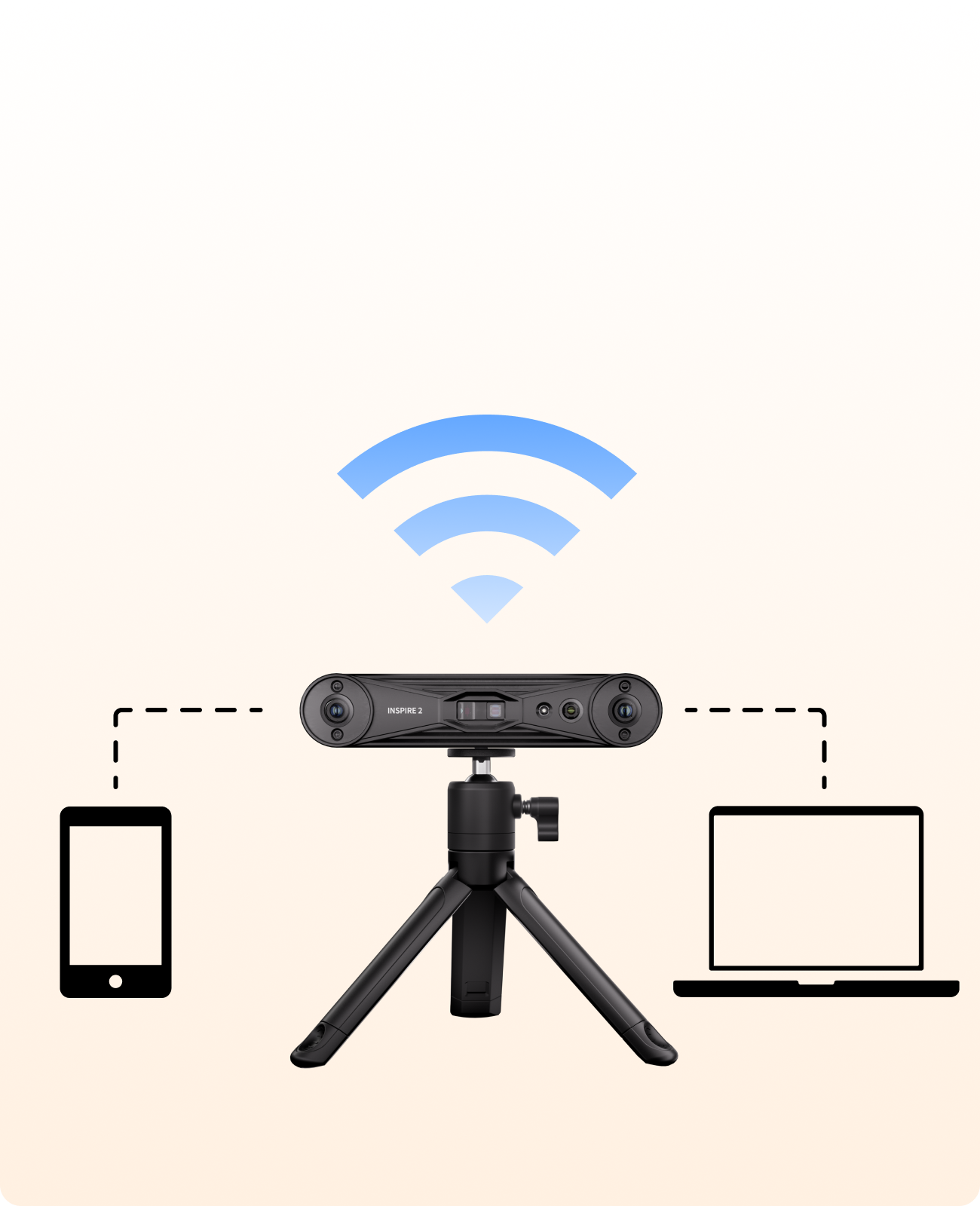

Go Mobile

Skip the expensive adapters and restrictive cables, and take the INSPIRE 2 on the go with mobile structured light scanning by connecting it to your smartphone via Wi-Fi (iOS and Android) or USB-C (Android only). For enhanced performance, enable infrared laser scanning by using your PC to power the scan and stream it to your phone using Revo Mirror, combining desktop power with mobile flexibility.

Go Outside

Go everywhere, scan everything, even in up to 20,000 Lux of daylight, using INSPIRE II's powerful capabilities to capture clean, reliable scans without losing detail or depth quality.

Go Safely

Built for reliability, the INSPIRE 2's lightweight aerospace-grade aluminum alloy front panel delivers exceptional impact resistance and long-term durability, ensuring you can transport your scanner safely.

Skip the expensive adapters and restrictive cables, and take the INSPIRE 2 on the go with mobile structured light scanning by connecting it to your smartphone via Wi-Fi (iOS and Android) or USB-C (Android only). For enhanced performance, enable infrared laser scanning by using your PC to power the scan and stream it to your phone using Revo Mirror, combining desktop power with mobile flexibility.

Complete Scanning Performance

Tracking for Any Object

Adapt to any scanning workflow with INSPIRE 2's Feature, Marker, and Global Marker tracking modes. Structured Light supports all three tracking types, while Laser mode supports Marker and Global Marker only.

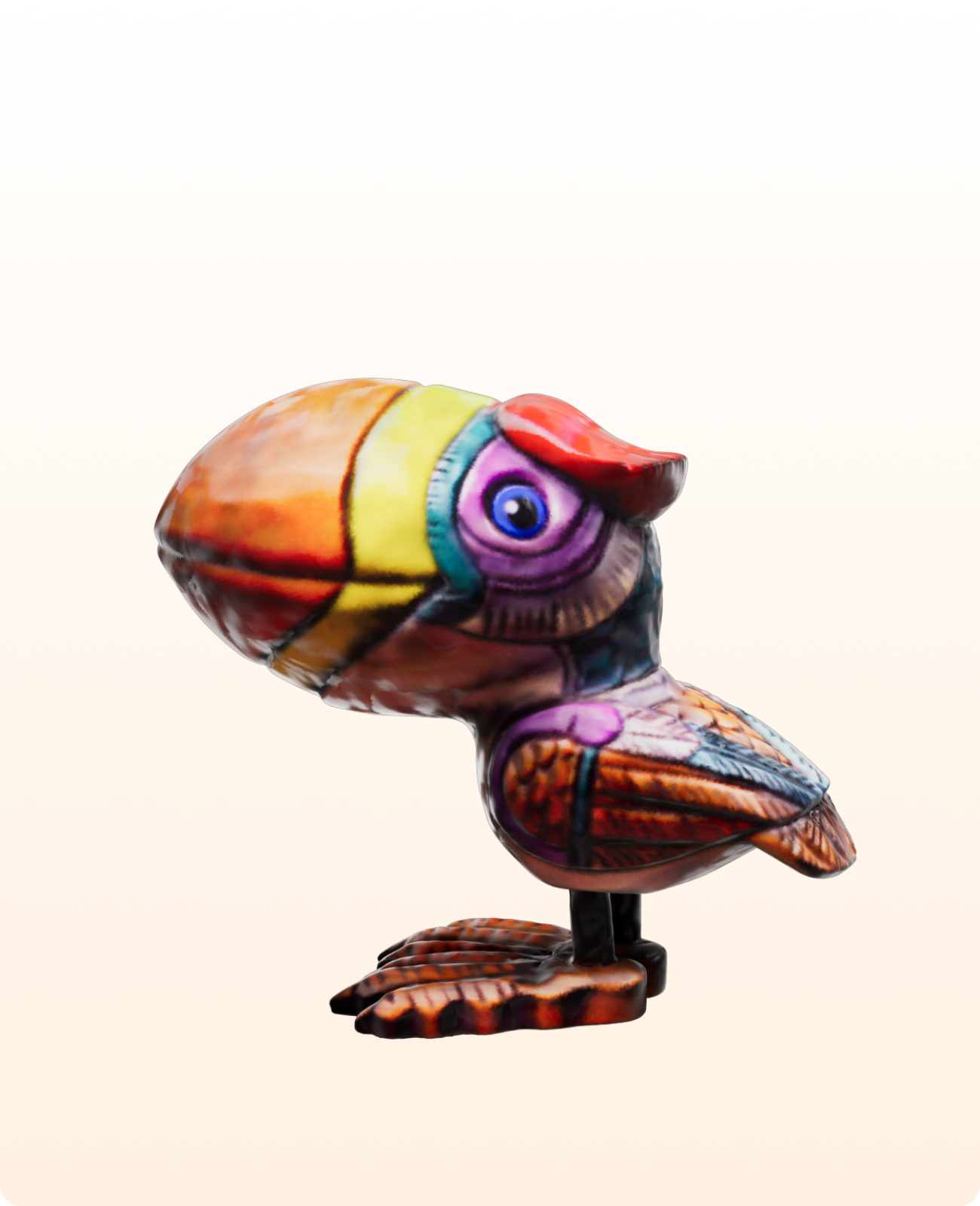

True-to-Life Color

Capture stunningly vibrant color scans that capture color with true-to-life accuracy. Whether you're digitizing art, prototypes, or real-world objects, INSPIRE 2’s advanced RGB camera brings your scans to life.

Ensure Scan Reliability

Keep your INSPIRE 2 accurate and dependable with the new ultra-precise photolithographic calibration board designed to ensure top-tier scanning performance.

Total Scanning Freedom

Intuitively create 3D models in four easy steps using INSPIRE 2’s powerful Revo Metro PC software*.

Scan

Granular scan settings let you control every aspect of the scanning process, ensuring optimal point cloud capture.

Process

Process your raw point cloud automatically with one-click editing or fully fine-tune it with fusion and meshing tools.

Edit

With versatile selection, clean-up, and merging tools, you can swiftly remove unwanted data, fill holes, smooth, simplify, and merge your 3D models.

Export

Export your scans in formats supported by all major professional software for quality control, CAD, 3D slicing, and 3D modeling, ensuring seamless integration into your existing workflows.

Works On: Windows, macOS, Android, iOS
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Note: For mobile scans, use Revo Scan 5. It's compatible with iOS and Android devices.

Granular scan settings let you control every aspect of the scanning process, ensuring optimal point cloud capture.

Captured with INSPIRE 2

Learn More >

Sitting Woman
Sitting woman captured with the Revopoint INSPIRE 2's full-field structured light mode.

David Bust
Plaster David bust captured with the Revopoint INSPIRE 2.

Gearbox
Car's gearbox captured with the Revopoint INSPIRE 2 infrared parallel lines.

Lion Statue
Stone lion sculpture captured with the Revopoint INSPIRE 2's full-field structured light mode.

How INSPIRE 2 Helps You

Reverse Engineering

Whether you're reverse engineering broken parts, designing upgrades, or restoring vintage items, INSPIRE 2 helps you create volumetrically accurate 3D models.

3D Printing

With 0.03 mm precision and support for up to 20,000 lux lighting, INSPIRE 2 captures detailed 3D data even in outdoor environments. It’s great for scanning everything from tool parts to humans, ensuring every detail is captured clearly. Whether you're into fixing designs or want an accurate scan of your prints, INSPIRE 2 has you covered.

Product Design

Quickly capture precise dimensions and textures, accelerating product redesign and iteration with CAD/CAM software. INSPIRE 2's lightweight design and high dynamic range enable fast and accurate scanning in challenging environments, such as workshops and outdoors.

Animation & Digital Media

Accurately capture the shape and texture of characters, props, and environments, cutting down the time and cost of manual modeling in CG, game development, and virtual reality. INSPIRE 2's high-resolution depth capture and ambient light suppression deliver reliable results both indoors and outdoors, making it ideal for creating assets, digital humans, virtual exhibits, and NFTs.

Heritage Preservation

Whether you’re restoring, preserving, or teaching, rapidly create color-accurate scans of artifacts. INSPIRE 2 delivers stable, high-precision scanning even in complex environments like heritage sites. Its advanced imaging captures true texture and color for accurate restoration and digital preservation.

Specifications

Name

INSPIRE 2

Scanning Type

Handheld and Desktop

Technology

Dual-camera Infrared Structured
Light and Infrared Multi-line Laser

Scannable Object Size

Small to Medium

Single-frame Precision, up to①

0.03 mm

Single-frame Accuracy, up to①

0.05 mm

Volumetric Accuracy

0.05 mm + 0.1 mm × L (m) , L is the length of the object.
(Note: Using marker tracking mode)

Fused Point Distance, up to

0.05 mm

Working Distance (Indoor)

200 ~ 400 mm

Working Distance (Outdoor)

150 ~ 250 mm

Single Capture Area at Nearest Distance (Indoor)

130 × 129 mm at 200 mm

Single Capture Area at Furthest Distance (Indoor)

293 × 257 mm at 400 mm

Angular Field of View (H × V)

43 × 35°

Minimum Scan Volume

20 × 20 × 20 mm

Maximum Scan Volume

2 × 2 × 2 m

Scanning Speed, up to

Full-field Structured Light Scan: 18 fps
Multi-line Laser Scan: 30 fps

RGB Camera Resolution

1280 × 800

Color Scanning

Yes

Tracking Methods

Feature, Marker, Global Marker

Outdoor Scanning②

Yes

3D Light Source③

Class 1 Infrared Light

Fill Lights④

4 Infrared LEDs

White Flash LEDs④

1 White Flash LEDs

Built in Chip Computing

Depth Map Computing

Buttons

1

Minimum PC Requirements

macOS
CPU: M1 Pro/Max/Ultra
RAM ≥ 16GB
Windows
CPU: Intel i7 12th Gen or AMD Ryzen 7 5800
RAM ≥ 32GB
GPU (Optional): NVIDIA GeForce RTX 3050 (8GB)
Note: If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.

Recommended PC Requirements

macOS
CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra
RAM ≥ 24GB
Windows
CPU: Intel i9 12th Gen or better
RAM ≥ 64GB
GPU: NVIDIA RTX 4060 (8 GB) or better

Mobile Requirements

① Android
System Version: 9.0 or better;
RAM ≥ 8 GB; Storage ≥ 128 GB
② iPhone
Models after iPhone X;
System Version: iOS 14.0 or better;
RAM > 4 GB; Storage ≥ 64 GB
③ iPad
10th Gen iPad or later
Note: Multi-line scanning mode does not support standalone mobile phone operation. It requires the scanner to connect to a PC via WiFi to work, with the screen being cast to the mobile phone in real-time. Full-field scanning mode can be used independently with a mobile phone.

Compatible Operating Systems

Windows 10/11, Android, iOS, macOS 11.0 or better

Output File Formats

PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Ready to Print 3D Models

√

Wi-Fi

6

Bluetooth

4.1

Connector Type

USB Type-C

Power Requirements

DC 5V, 1A

Scanner Weight

190 g

Dimensions (L × W × H)

53 × 27 × 132 mm

Special Object Scanning④

Using scanning spray is recommended when scanning transparent, specular surfaces.

User Recalibration

Yes

Supported Accessories

Large Turntable, Dual-axis Turntable, Handheld Stabilizer, Power Bank, Mobile Kit

Note:
1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
2. Outdoor scans should avoid direct sunlight.
3. Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details.
4. This products have flashing lights, which may not be suitable for people with photosensitive epilepsy.
