Handheld Stabilizer
· Smooth tilting and panning for an enhanced scanning experience.
· Compatible with all Revopoint 3D scanners (except MIRACO series and RANGE 2)
· Handy tool for all your handheld scanning needs.
Free shipping for 3D scanners, 3-5 days fast receipt.
Safe and Reliable Payment Methods.
Effective
Stabilization
Intelligent Tracking
& Pan Locking
Improved Point
Cloud Accuracy
Reduced
Tracking Loss
Two Operational Modes
Intelligent Tracking Mode
For more efficient scanning, the Handheld Stabilizer will automatically keep the 3D scanner focused on the object being scanned.
Pan Locked Mode
For greater control and more stable horizontal movement, the pan motor is locked in place without following the handle’s movements.
One-handed Control
Ergonomic Design
Controls the Scanner’s Movement
Up/Down: Tilt Control
Left/Right: Pan Control
Press and Hold: Power On/Off
Press Once: Recenters the Handheld Stabilizer
Fast Double Press: Activate/Deactivate Pan Lock Mode
Press Once: Start/Pause the Scan
Double Press: Activate/Deactivate Intelligent Tracking Mode
Around 6 Hours of Power
Recenter
Controls the Scanner’s Movement
Up/Down: Tilt Control
Left/Right: Pan Control
Press and Hold: Power On/Off
Press Once: Recenters the Handheld Stabilizer
Fast Double Press: Activate/Deactivate Pan Lock Mode
Press Once: Start/Pause the Scan
Double Press: Activate/Deactivate Intelligent Tracking Mode
Around 6 Hours of Power
Recenter

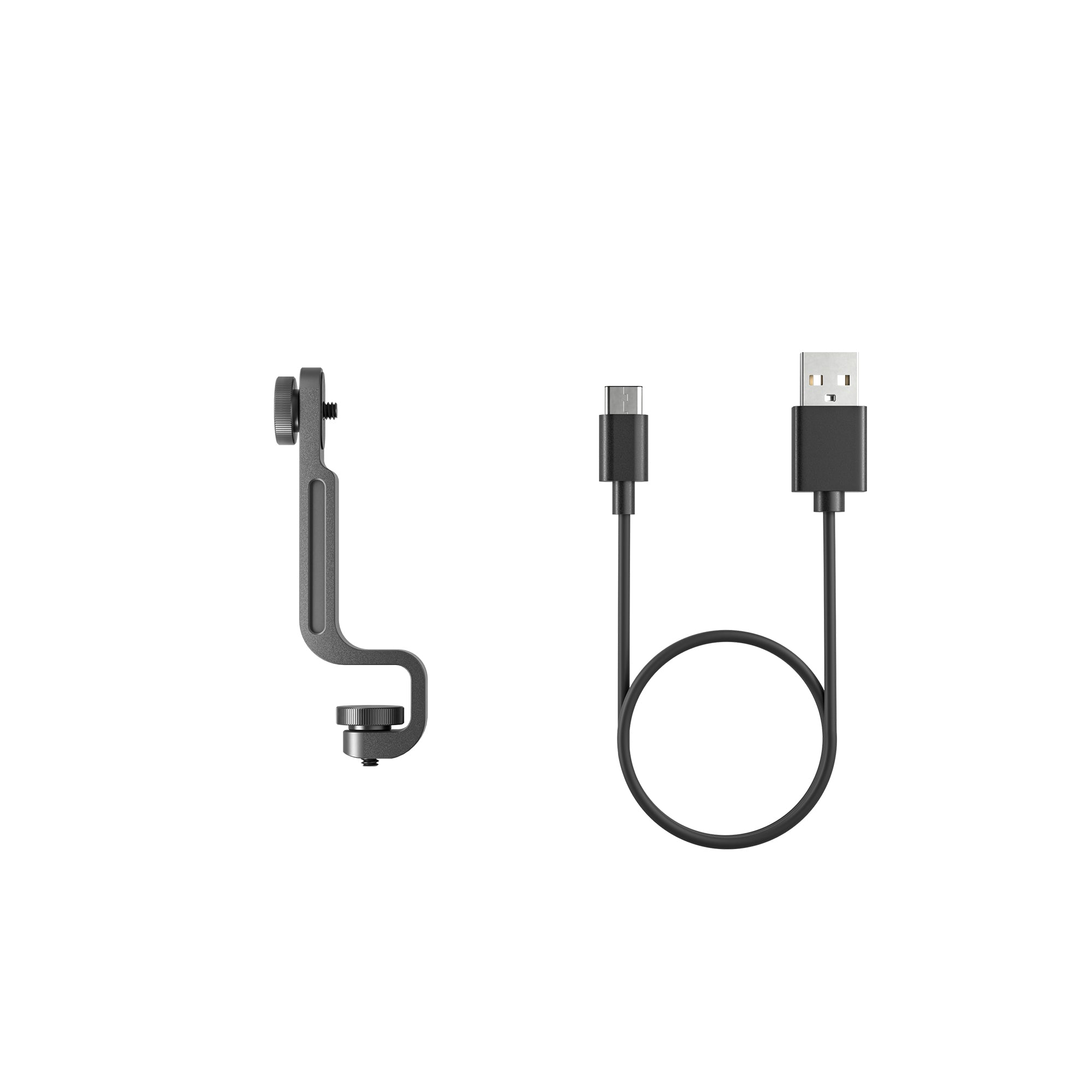

What’s in the Box
Handheld Stabilizer
(with a USB Type-C cable)
Phone Holder
Bracket
Charging Cable
(USB Type-C to A)
Micro-B Adapter
Strap
Specifications
Product Name
Handheld Stabilizer
Compatible Scanners
POP 2, POP 3, MINI, MINI 2, RANGE,
INSPIRE, POP 3 Plus
Power Output
5V/2A
Dimensions
213 × 84.5 × 45 (mm)
Weight
510 g (≈ 1.1 lbs)
Charging Cycles
≥ 300*
Battery Type
Lithium Battery
Battery Capacity
4000 mAh
Battery Life
6 h
Recharging Time
4.5 h
Stabilized Axes
2
Motor Type
Brushless
Mechanical Range Pan
320°
Tilt
320°
Connection Type
Bluetooth,
USB Type-C for charging
Weight Load
150 g - 240 g (≈ 0.3 lbs - 0.5 lbs)
Working Temperature
10°C to 40℃
