Revopoint MIRACO - Standalone 3D Scanner for Small to Large Objects

MIRACO

Overview

Revopoint
MIRACO 3D SCANNER

ALL-in-one Scanning

All-in-one Scanning

Go Big, Go Small

Freely switch between Far-mode and Near-mode mid-scan. Near-mode is great for capturing intricate details in specific areas or small objects, while Far-mode excels at quickly capturing entire objects.

Surgical Accuracy

Freely switch between Far-mode and Near-mode mid-scan. Near-mode is great for capturing intricate details in specific areas or small objects, while Far-mode excels at quickly capturing entire objects.

Up to 0.02 mm Precision

0.05 mm Accuracy

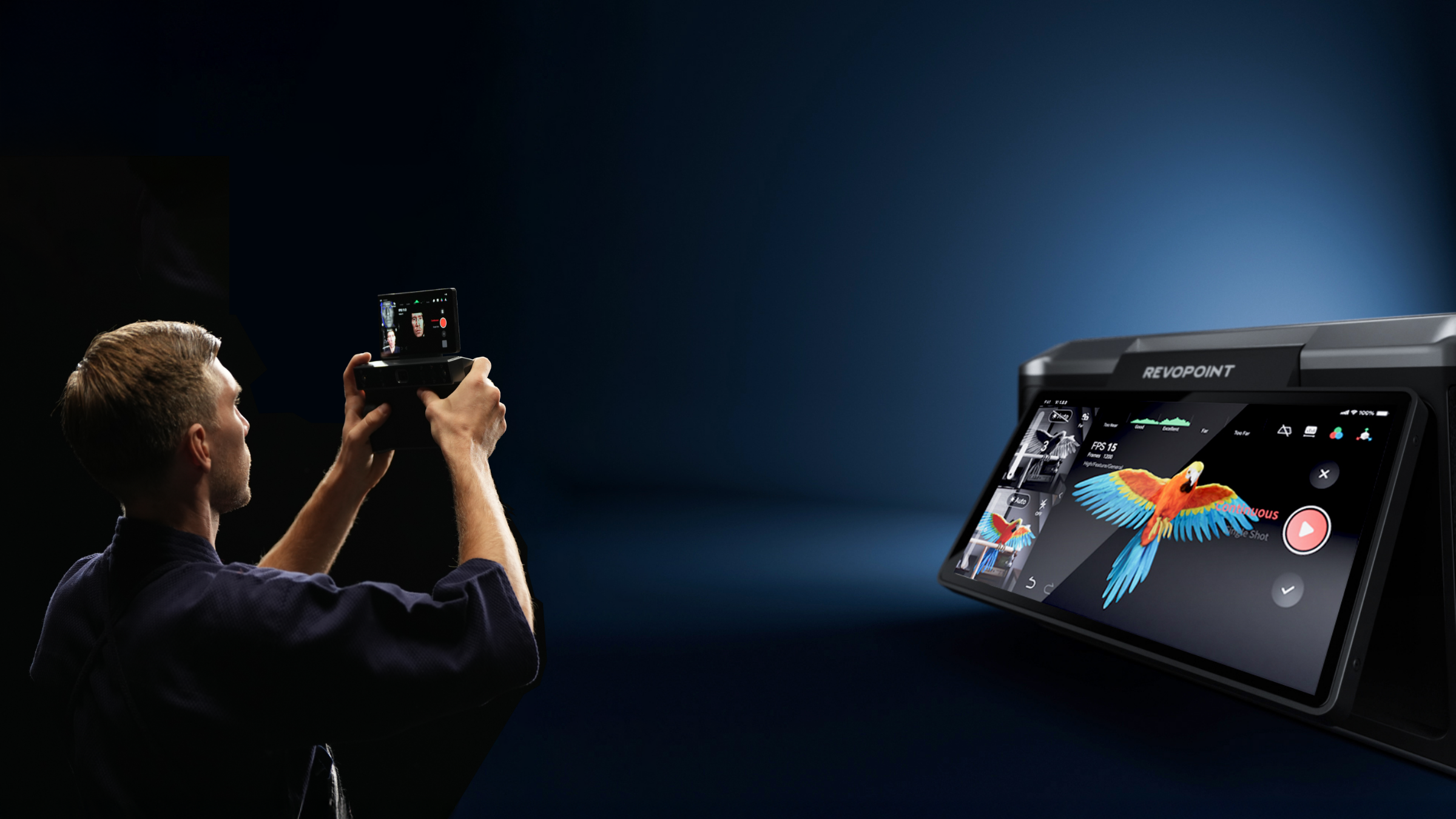

Your Scanning Portal

2k AMOLED 180°

Flip Screen

2k AMOLED 180°

Flip Screen

Screen Size

Adjust 180°

See your scans with crystal clarity on MIRACO's 6” 2k backlit AMOLED touch-sensitive screen. Its 180° adjustable screen allows easy viewing from any angle and can flipped for selfie scans.

Powerhouse in Your Hands

8-core 2.4GHz Processor
256 GB Hard Drive

Up to 5000 Frames
for None Color Scans

Up to 4000 Frames
for Color Scans

* Maximum number of frames in a single scan.

Up to 10000 Frames
for None Color Scans

Up to 8000 Frames
for Color Scans

Two Capture Modes

Single-shot Mode
Single-shot ModeSingle-shot mode's single-frame capture makes it easier to progressively scan in hard-to-maneuver environments.

Continuous Mode
Create 3D models fast at up to 15 fps scanning speeds for both small or big organic and geometric objects.

Single-shot Mode

Single-shot ModeSingle-shot mode's single-frame capture makes it easier to progressively scan in hard-to-maneuver environments.

Continuous Mode

Create 3D models fast at up to 15 fps scanning speeds for both small or big organic and geometric objects.

Long Scans, Fast Charging

5000
mAh

2 Hours
of Scanning

50W
Fast Charging

Recharge MIRACO to 80% in only 35 mins with 50W fast charging.

* MIRACO's battery is covered under a 2-year warranty.

No Cables, No PC Needed

Transfer your scans quickly and conveniently over MIRACO’s lightning-fast Wi-Fi 6 or easy-to-connect USB Type-C connection.

QUICK & CONVENIENT

Simple Project Transfers

Transfer your scans quickly and conveniently over MIRACO’s lightning-fast Wi-Fi 6 or easy-to-connect USB Type-C connection.

Screen Mirroring

Hook MIRACO up to TVs or monitors through a USB-Type C to HDMI adapter or a DP port for convenient 3D model checks or presentations.

Powerful On-board Software

The onboard software’s intuitive UI makes capturing and post-processing your model a breeze. Perform fusion, meshing, and editing on the go to check the model before exporting your scans in PLY, OBJ, STL, ASC, 3MF, GLTF or FBX.

Models Made with MIRACO

Explore More

The Buzz on MIRACO

Yanko Design

3D Printing Industry

3DNatives

All3DP

3Druck

3DPrint.com

“With its convenient, portable design, easy-to-use controls, flexible modes, and powerful features, scanning any object of any size is a breeze.”

"Some of its standout features include incorporating quad-depth cameras, offering the capability to seamlessly capture large and small objects. MlRACO also boasts high precision, with a single-frame precision of up to 0.02 mm."

"The strength of the MIRACO 3D scanner lies in its versatility. lt is a tool that professionals can use for numerous applications and in different sectors. From 3D printing to rapid prototyping.”

Applications

Aerospace

Quickly scan aircraft parts to check for wear and fatigue or to create replacements.

Automobiles

Capture every last part of a vehicle without time-consuming manual measurements for repair, reproduction, prototyping, or quality control.

3D Animation

Capture full-body scans in under 60 seconds or highly detailed face scans using MIRACO’s Far and Near modes.

Preservation

Digitize historical items with photo-realistic color details for preservation or restoration without direct contact.

Specifications

Product Name

Revopoint MIRACO

Technology

Quad-camera Infrared Structured Light

Single-frame Accuracy, up to

0.05 mm

Fused Point Distance, up to

0.05 mm

Single Capture Area at Nearest Distance

28 x 53 mm at 100 mm

Single Capture Area at Furthest Distance

975 x 775 mm at 1000 mm

Two Capture Modes

Single-shot Mode ,

Continuous Capture Mode

Scanning Speed，up to

15 fps

Minimum Scan Volume

10 x 10 x 10 mm

Maxmium Scan Volume

4 × 4 × 4 m

Working Distance

100 - 1000 mm

Screen

6” 2k AMOLED Touch Screen

Auxiliary Lighting

Infrared Fill Lights, White Flash LEDs

3D Light Source

Class 1 Infrared Light

Storage

256 GB eMMC

Position Sensors

9-axis IMU

Memory (RAM)

16 GB or 32 GB DDR4 (32GB

only in MIRACO Pro)

RGB Camera Resolution，up to

48 Megapixels

Scanner Weight

750 g

Dimensions（L x W x H）

200 x 50 x 110 mm

Battery Capacity

Internal lithium Battery 5,000 mAh,

supporting up to 2-hour

continuous scanning

CPU

8-core CPU，2.4 GHz

Tracking Methods

Feature , Marker, Global Marker

Protection Rating

IP45

Connector Type

USB Type-C

Wi-Fi Type

Wi-Fi 6

Compatible Systems

Windows 10/11, macOS

Operating System

Native Android System

Special Object Scanning

Use scanning spray for

transparent, dark, or highly

reflective objects

Scanning Environment

Indoors and Outdoors

Output File Formats

PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

3D Printing Compatible

Yes

Built in Chip Computing

Depth Map Computing, 3D

Scanning, Point Cloud

Processing and Editing

PC Requirements

No PC required

Note:
1. Precision is how close repeated measurements of the same object are to each other. Accuracy is how close a measured value is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
2. Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details.
3. Outdoor scanS should avoid direct sunlight.
4. This product has flashing lights, which may not be suitable for people with photosensitive epilepsy.
5. The MIRACO series 3D scanners require no PC when scanning. But the PC requirements above should be followed if you connect the MIRACO to Revo Scan (PC) for more operations.
