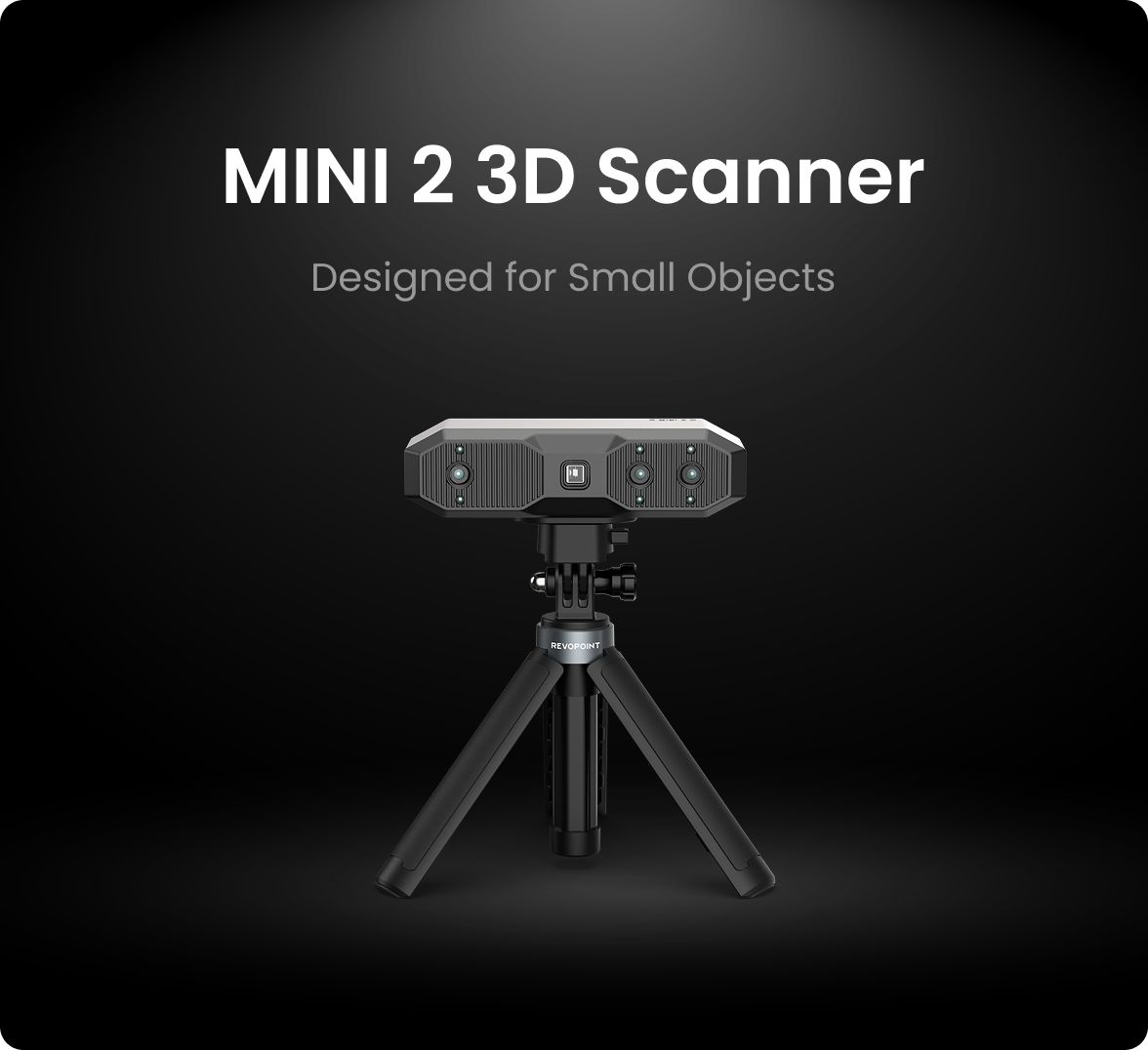

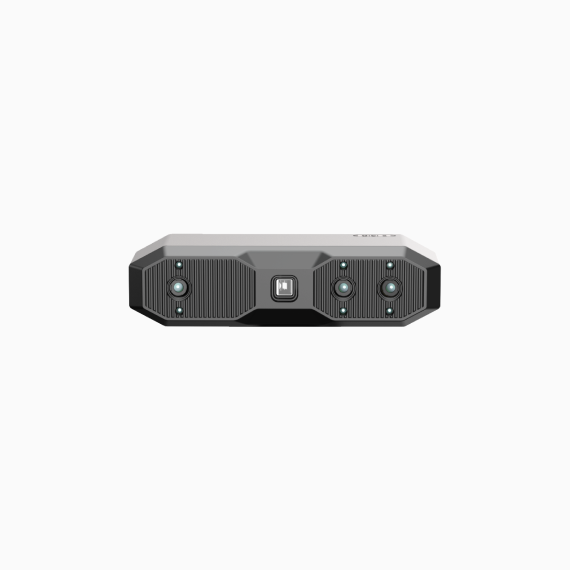

MINI 2

Overview

Total Precision

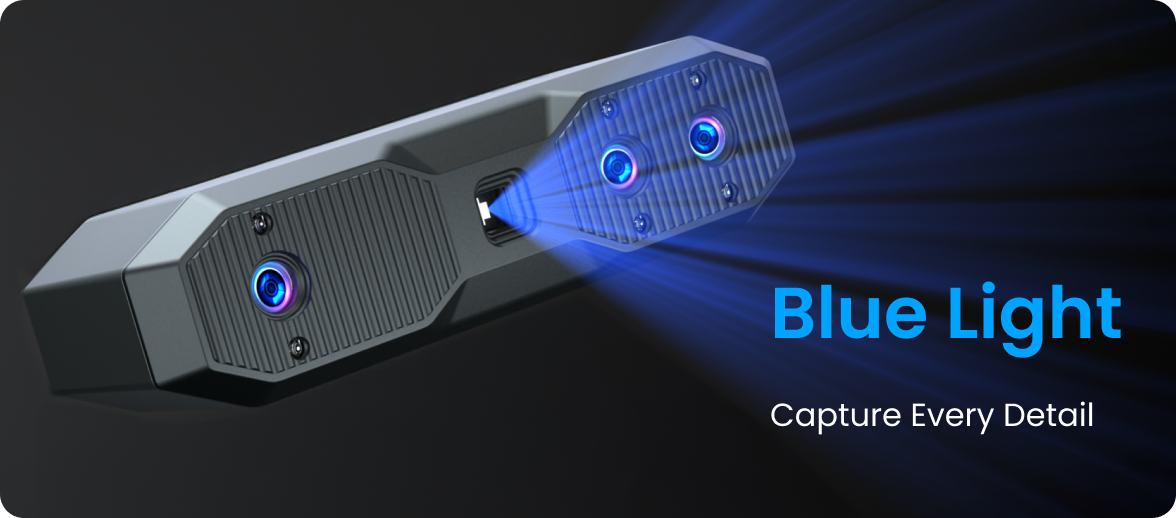

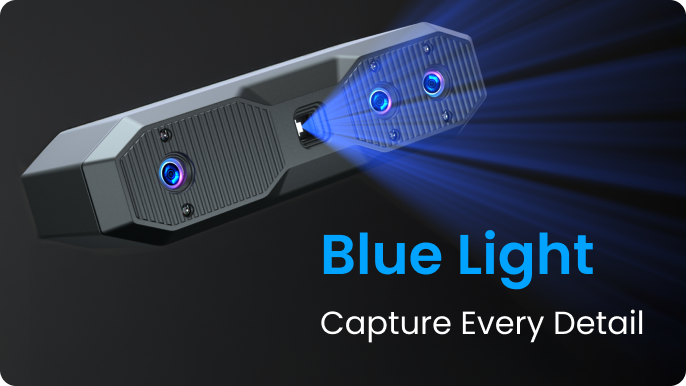

When repeatability matters, MINI 2 is ready with its ultra-high resolution blue light technology to consistently capture objects with a single-frame precision of

up to 0.02 mm.

Up to

0.02 mm

Single-frame Precision

0.05 mm

Single-frame Accuracy

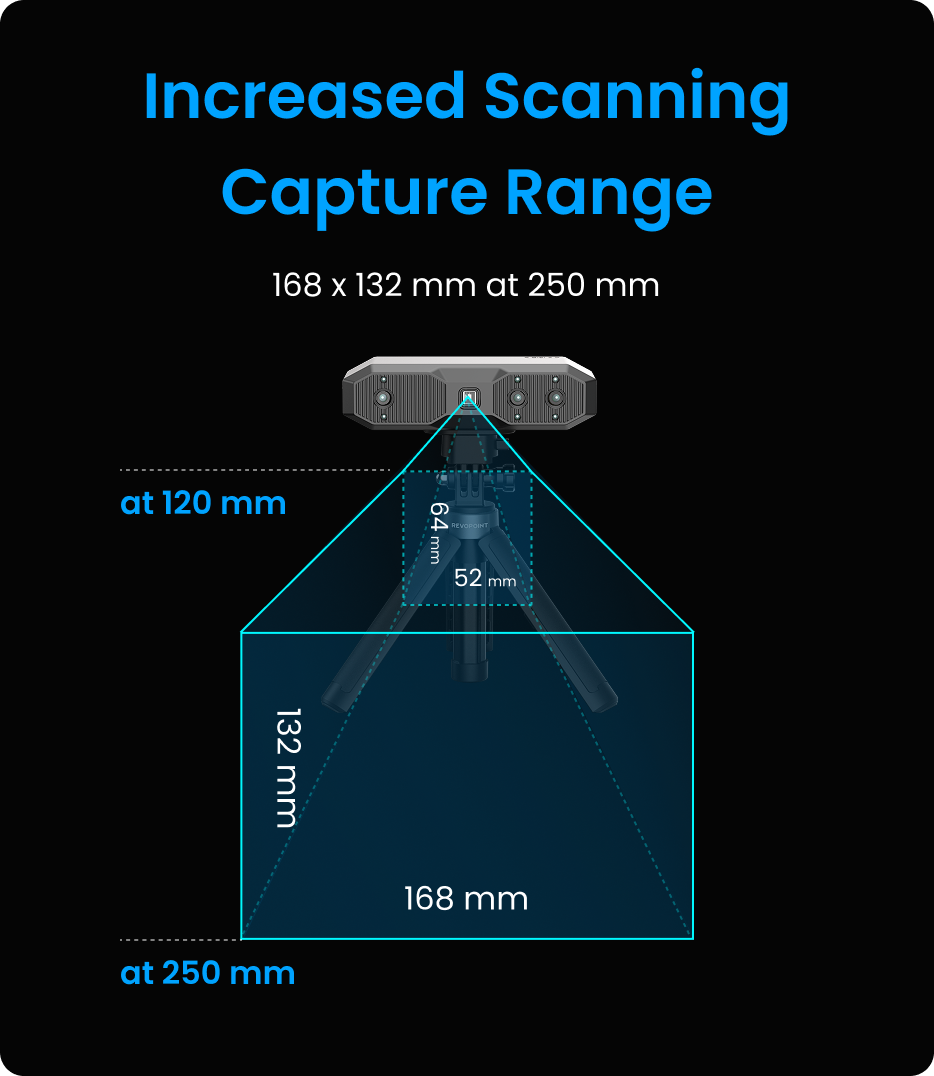

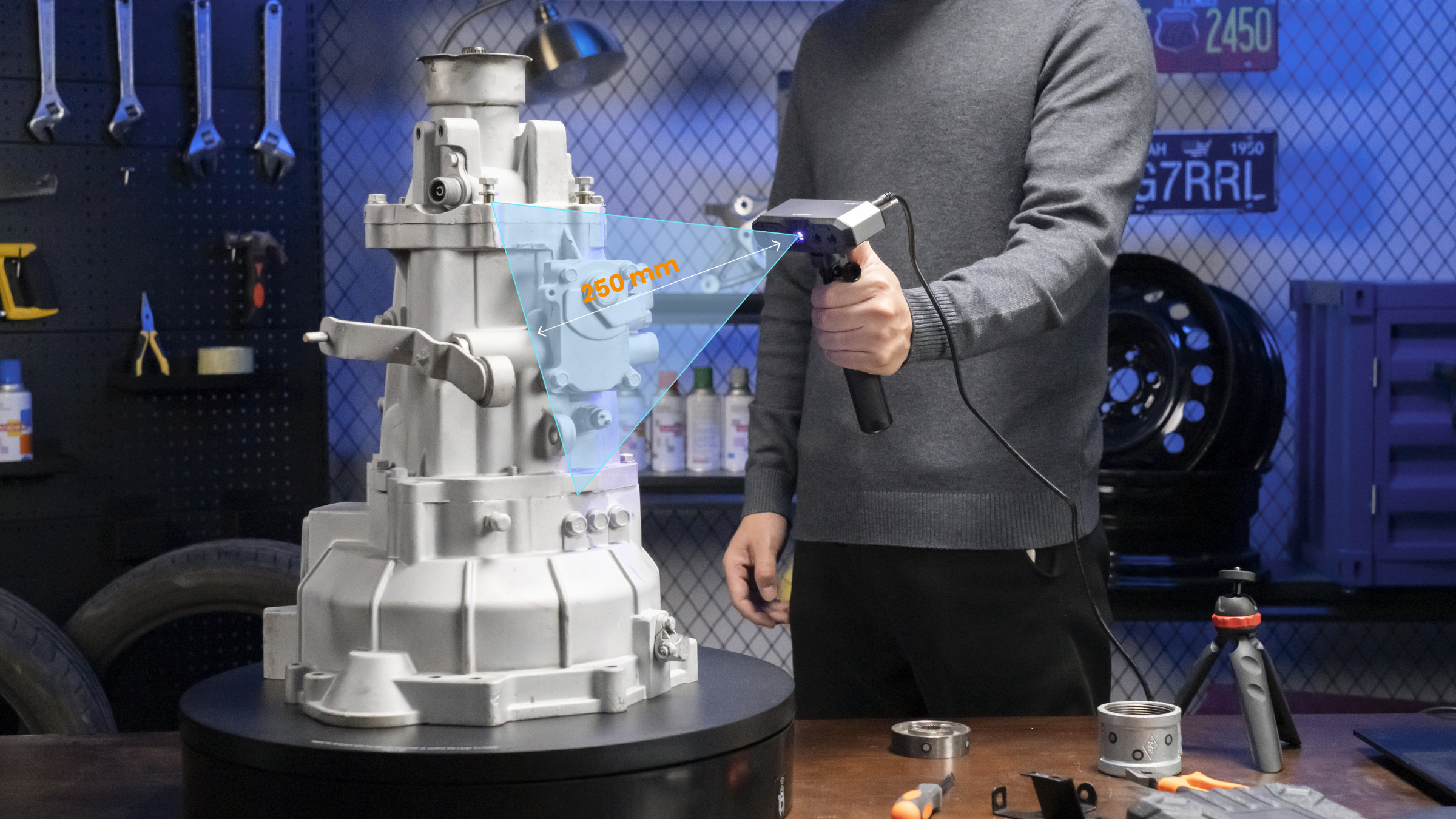

Extended Single Capture Range

Enjoy better tracking and faster scans with MINI 2's bigger working distance of 120 ~ 250 mm and 168 x 132 mm single capture range, streamlining the scanning process.

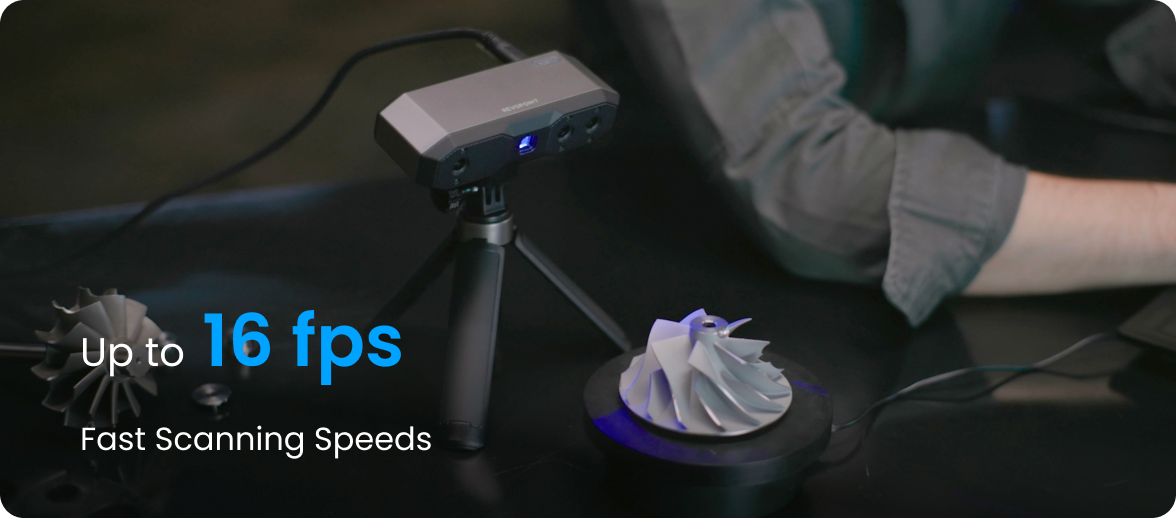

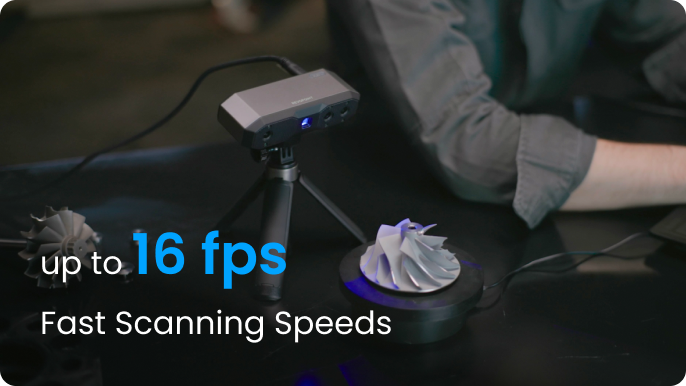

Fast 16 fps Scanning Speeds

Jumpstart your projects by creating ultra-detailed 3D models in seconds with MINI 2's fast scanning speeds of up to 16 frames per second.

Uniform Color Scans

Capture crispier, more uniform color scans with MINI 2's new higher-resolution RGB camera and Flash LEDs to evenly light objects and remove shadows.

Resolution

2 Megapixels

Depth-camera

RGB-camera

IMU Stabilization

Experience improved tracking and frame stitching with MINI 2’s advanced 9-axis IMU, eliminating faulty frames caused by sudden movement or unsteady hands.

CPU

2 core
1.8 GHz

Position Sensors

9-axis IMU

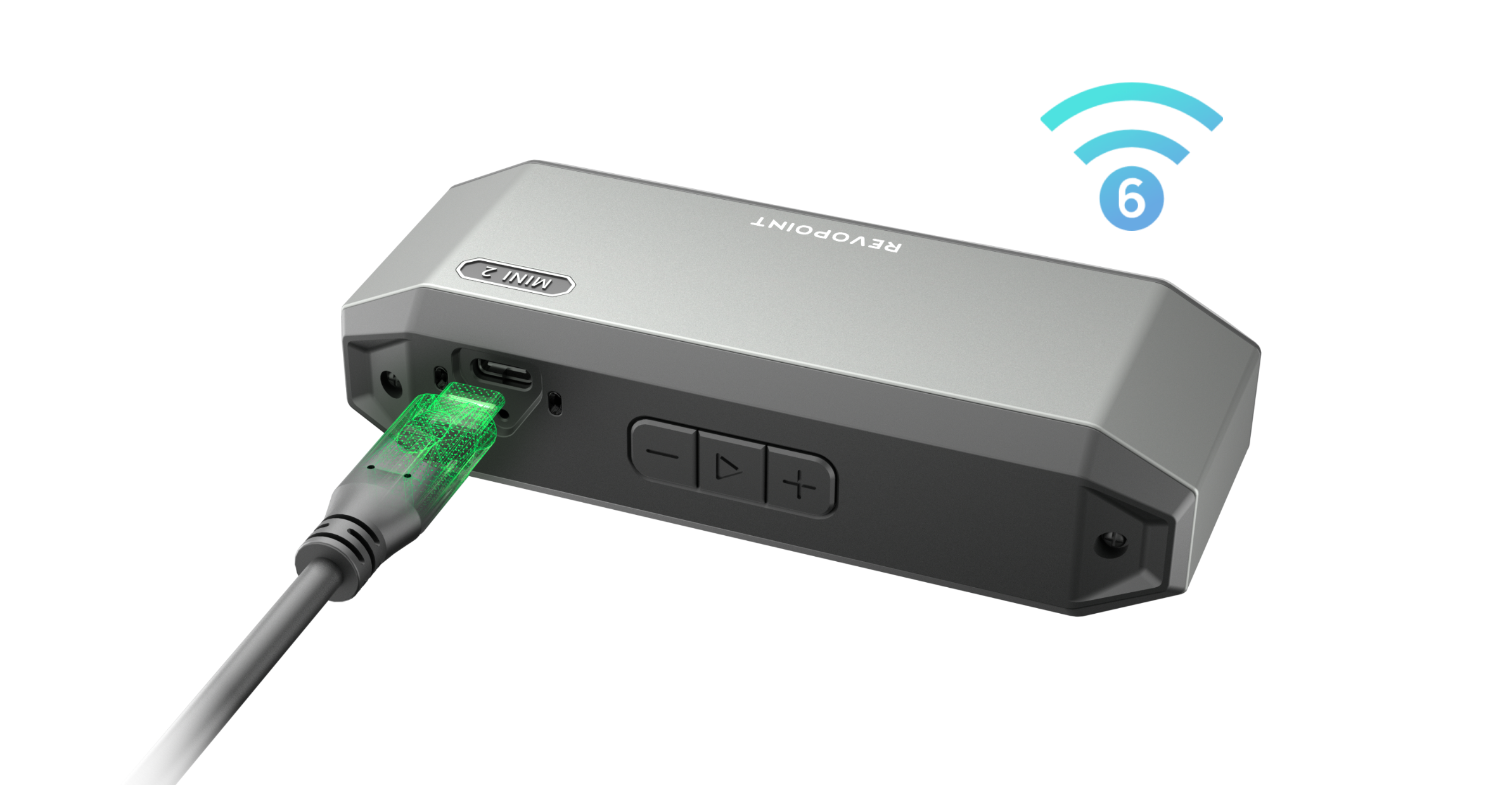

Faster Connectivity

Get lower latency and more stable mobile scanning with MINI 2's new Wi-Fi 6 connection and plug-and-play setup with its USB Type-C connection.

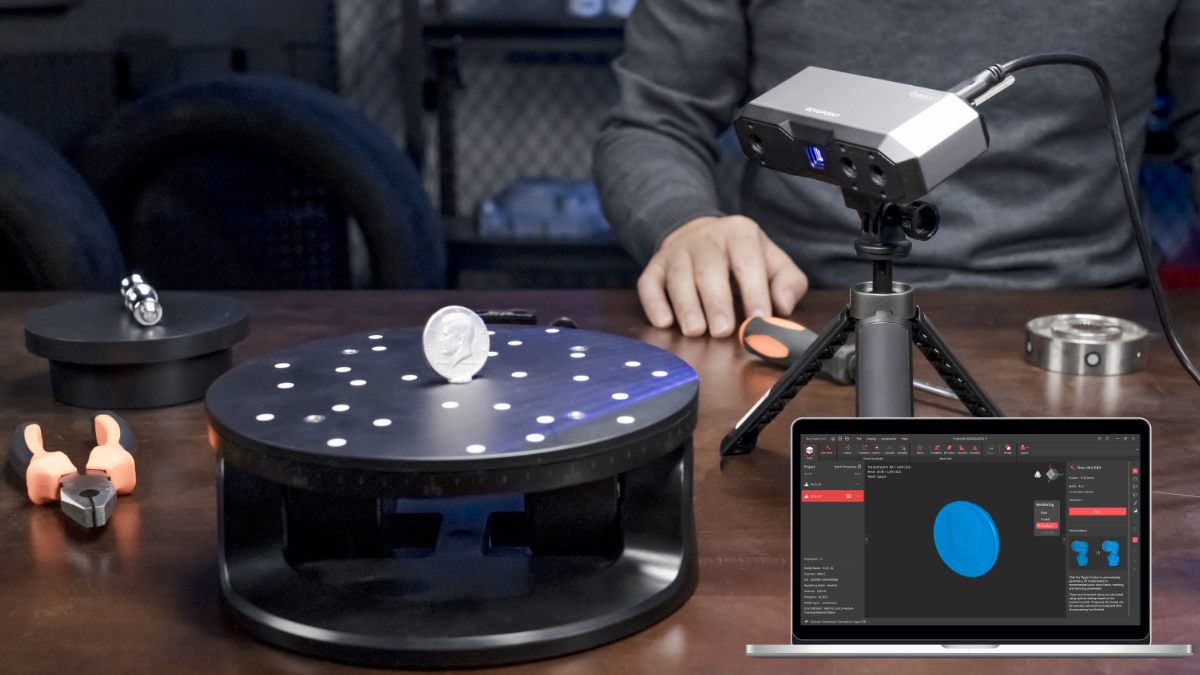

High-Performance Software

Revo Scan 5 is your portal to intuitive 3D scanning and powerful editing. And it runs on nearly everything, with full support for iOS, Android, Windows, and macOS devices. Export your models in PLY, OBJ, STL, ASC, 3MF, GLTF or FBX formats for compatibility with most CAD, 3D modeling, and slicer software.

Revo Scan 5

Integrates model scanning, post-processing, and multi-model alignment functionalities

Models Made With MINI 2

Explore More >

Applications

Quality Control

Speed up projects and production by reliably capturing every dimension, surface flaw, and imperfection with clarity.

Customized Healthcare

Quickly capture dental molds or ear canals to create perfectly fitting customized healthcare solutions.

Digitizing History

Capture historical items' intricate details and color for restoration, preservation, or digital exhibitions.

Detailed Design

Create ready-to-use 3D models from organic shapes like flowers or shells for your design projects with no complex 3D modeling needed.

The Buzz on MINI 2

" The Revopoint MINI 2 is an advanced 3D scanner designed to capture intricate details on small objects with exceptional precision. Utilizing blue light technology, it achieves a single-frame precision of up to 0.02 mm and an impressive accuracy reaching up to 0.05 mm. "

" The MINI 2 aims to address several issues that have plagued the 3D scanning industry, specifically when it comes to enabling users to capture the intricate details of smaller objects. "

" Der neue MINI 2 besticht durch verbesserte Scangeschwindigkeit und -qualität, dank seines erweiterten Arbeitsabstands von 120 bis 250 mm und eines großzügigen Einzelerfassungsbereichs von 168 x 132 mm. Er kann beeindruckende 16 Frames pro Sekunde (16fps) erfassen. "

Reviews on YouTube

Go to Revopoint's Channel >

Specifications

Product Name

Revopoint MINI 2

Depth Camera Resolution

2 Megapixels

Technology

Dual-camera Blue Structured Light

RGB Camera Resolution

2 Megapixels

Single-frame Precision

Up to 0.02 mm

Outdoor Scanning

No

Single-frame Accuracy

Up to 0.05 mm

Color Scanning

Yes

Single Capture Area

at Nearest Distance

52 x 64 mm at 120 mm

Scanner Weight

175 g

Single Capture Area

at Furthest Distance

168 x 132 mm at 250 mm

Dimensions (L x W x H)

132 x 53 x 36 mm

Working Distance

120 ~ 250 mm

3D Printing Compatible

Yes

Point Distance

Up to 0.02 mm

Compatible Operating Systems

Windows 10/11 (64-bit), Android, iOS, macOS 11.0 or better

Minimum Scan Volume

10 x 10 x 10 mm

White Flash LEDs

Yes

Scanning Speed

Up to 16 fps

CPU

2 core, 1.8 GHz

Position Sensors

9-axis IMU

Wi-Fi

Wi-Fi 6

Light Source

Class 1 Blue Light

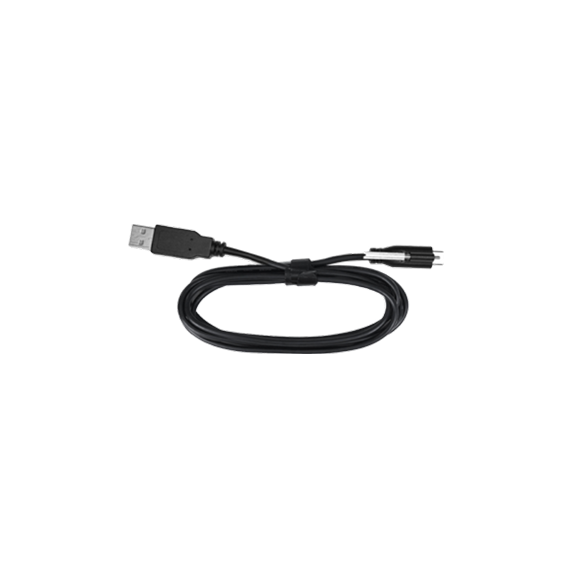

Connector Type

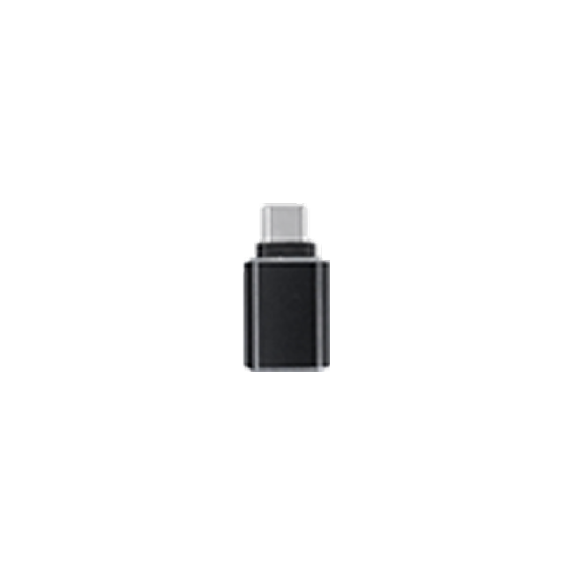

USB Type-C

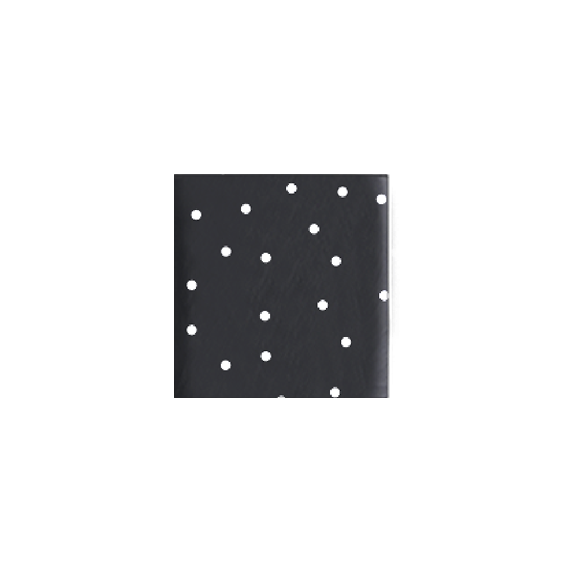

Tracking Methods

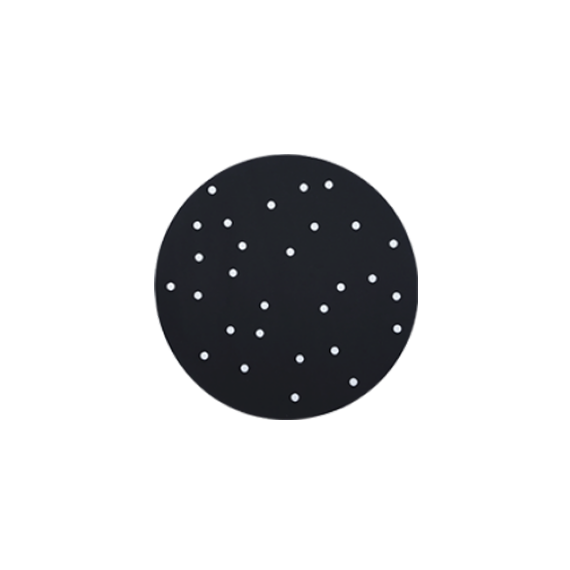

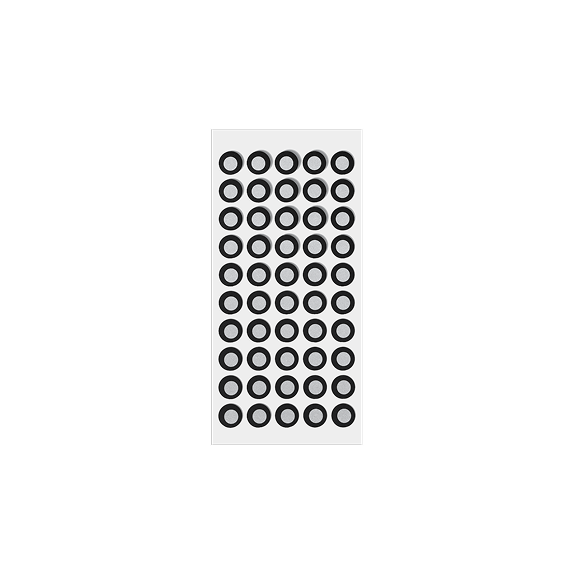

Feature, Marker, Global Marker

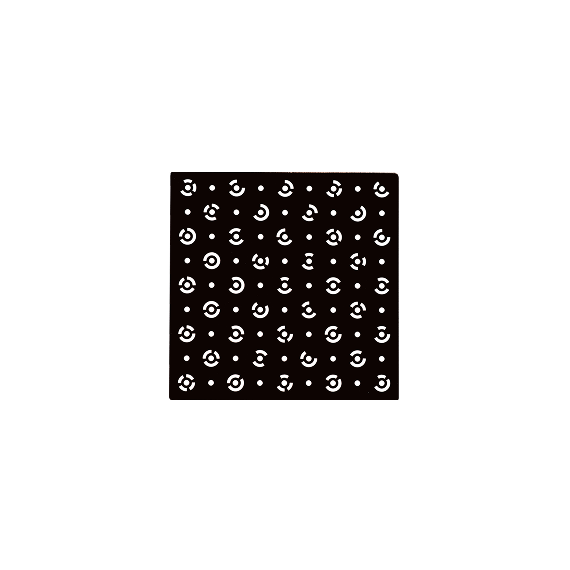

User Recalibration

Yes

Output File Formats

PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Special Object Scanning

Use scanning spray for transparent,

dark, or highly reflective objects.

Minimum PC Requirements

macOS
CPU: M1 Pro or better;

RAM ≥ 8GB
Windows
CPU: Intel i7 12th Gen or better;

RAM ≥ 16GB

Recommended PC Requirements

macOS
CPU: M3 or better;

RAM ≥ 8GB
Windows
CPU: Intel i9 11th Gen or better;

RAM ≥ 32GB

Note:
1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
2. Outdoor scans should avoid direct sunlight.
3. Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details.
4. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy.
5. The MIRACO series 3D scanners require no PC when scanning. But the PC requirements above should be followed if you connect the MIRACO to Revo Scan (PC) for more operations.
