Overview
Built to Capture More
From complex geometry to hard-to-scan surfaces, the MetroY series' three
blue laser scanning modes give you the tools to get the job done.
Capture flat, shiny, or black surfaces with ease, no scanning spray needed.
MetroY’s cross-line blue laser mode scans up to 1.7 million points per
second for fast, accurate results.
Capture More With MetroY Pro
Empowering even more scanning flexibility, MetroY Pro has two blue
full-field structured light scanning modes.
Capture feature-rich workpieces marker-free in seconds with 62 powerful,
structured blue light lines, generating point clouds at up to 7 million points per
second for fast, accurate 3D data.
Scan Smarter: 5 Modes for Any Challenge
Efficiently handle complex geometry and surfaces using MetroY Pro's 5 scanning modes. Its advanced blue-line laser array powers Cross Lines, Parallel Lines, and Single-line Laser 3D scanning, while its blue light projector supports rapid handheld Full-field scans and an ultra-detailed Auto Turntable mode.
Accuracy That Delivers
Capture every complex geometric detail to create accurate 3D models ready for
measurement or scan-to-CAD transformation for reverse engineering.
Scan With Flexibility
Wireless Scanning
Untether your 3D scanner and move with freedom. MetroY streams your scan in real time via Wi-Fi 6, using your PC’s hardware for processing and showing live feedback on Revo Mirror on your device or monitor. Quickly spot blind spots or data gaps as you freely move around your workpiece.
Real Color, Real Results
Capture detailed surface textures for vivid, realistic 3D visualization using MetroY’s HD RGB camera. Its data integrates with Revo Measure, enabling precise measurements and the creation of clear, professional reports.
MetroY Pro expands your options with enhanced color scanning through Auto Turntable mode for consistent texture alignment and clean, accurate results.
Real-time
Temperature Monitoring
To maintain high 3D scanning accuracy, the MetroY series includes high-sensitivity temperature sensors that monitor fluctuations and display the scanner's temperature in real time. This ensures optimal operation and helps prevent temperature-related accuracy drift.
Revo Metro - Free Scanning Software
Intuitively create 3D models in four easy steps using MetroY’s free and powerful Revo Metro software.
Works On: Windows, macOS, Android, iOS
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Granular scan settings let you control every aspect of the scanning
process, ensuring optimal point cloud capture. Ensure a perfect scan with
real-time point cloud monitoring to check if you've captured enough data.
Simplify converting 3D scan data into CAD with Revo Design. Featuring powerful tools for mesh editing, freeform and parametric modeling, and scan-to-CAD workflows, Revo Design is perfect for reverse engineering, product development, and industrial design.
Models created in Revo Scan can be directly imported into Revo Measure. Revo Measure is professional 3D metrology software that evaluates shape, dimensions, and quality by comparing point cloud or mesh data to CAD models or drawings. Seamless one-click integration with Revo Scan ensures a smooth and efficient quality control workflow.
Captured with MetroY
Explore More >
Professional Applications
Reverse Engineering
Capture detailed geometry for high-accuracy reverse engineering with MetroY's up to 0.02 mm accuracy and multi-line laser modes, ensuring every key detail is captured. Export your scan to Revo Design for fast scan-to-CAD conversion.
Rapid Prototyping
Ensure your prototype meets design requirements, minimize iterations, and save time and resources with MetroY, capturing accurate dimensional data to keep your development process on track.
Quality Control
Quickly capture even complex workpieces to verify if they meet requirements with MetroY and the Revo Measure metrology software, ensuring the quick identification of any faults.
Additive Manufacturing
Whether for reproduction, repair, or redesign, MetroY enables you to create a precise digital twin of any small to medium-sized object.
MetroY vs. MetroY Pro
|
Name
|
MetroY
|
MetroY Pro
|
|
Scanning Type
|
Handheld
|
Handheld
|
|
Technology
|
Multi-line Laser Scan
|
Multi-line Laser Scan and Full-field
Structured Light Scan
|
|
Scannable Object Size
|
Small to Medium
|
Small to Medium
|
|
Single-frame Precision, up to
|
0.01 mm
|
0.01 mm
|
|
Single-frame Accuracy, up to
|
0.02 mm
|
0.02 mm
|
|
Volumetric Accuracy
|
0.02 mm + 0.04 mm × L (m),
L is the length of the object.
|
0.02 mm + 0.04 mm × L (m),
L is the length of the object.
|
|
Fused Point Distance, up to
|
0.05 mm
|
0.05 mm
|
|
Working Distance
|
200 ~ 400 mm
|
200 ~ 400 mm
|
|
Single Capture Area at Nearest Distance
|
123 × 130 mm at 200 mm
|
152 × 138 mm at 200 mm
|
|
Single Capture Area at Furthest Distance
|
290 × 260 mm at 400 mm
|
332 × 276 mm at 400 mm
|
|
Angular Field of View (H x V)
|
43 × 33°
|
49 × 38°
|
|
Minimum Scan Volume
|
10 × 10 × 10 mm
|
10 × 10 × 10 mm
|
|
Maximum Scan Volume
|
1 × 1 × 1 m
|
1 × 1 × 1 m
|
|
Scanning Speed, up to
|
Multi-line Laser Scan:
1, 500, 000 Points/s
|
Multi-line Laser Scan: 1,700,000 Points/s
Full-field Structured Light Scan:
7,000,000 Points/s
|
|
RGB Camera Resolution
|
2 Megapixels
|
2 Megapixels
|
|
Color Scanning
|
Yes
|
Yes
|
|
Tracking Methods
|
Marker, Global Marker
|
Marker, Global Marker, Feature
|
|
Outdoor Scanning
|
No
|
No
|
|
3D Light Source
|
30 Blue Cross Laser Lines
15 Blue Parallel Laser Lines
1 Blue Single Laser Line
|
34 Blue Cross Laser Lines
15 Blue Parallel Laser Lines
1 Blue Single Laser Line
62 Line Blue Full-field Structured Light
|
|
Fill Lights
|
12 Blue LEDs
|
12 Blue LEDs
|
|
CPU
|
4 core ARM, 2.0 GHz
|
4 core ARM, 2.0 GHz
|
|
Built in Chip Computing
|
Depth Computing
|
Depth Computing
|
|
Buttons
|
4
|
4
|
|
Minimum PC Requirements
|
macOS
CPU: M1 Pro/Max/Ultra
RAM ≥ 16GB
Window
CPU: Intel i7 12th Gen or AMD Ryzen 7 5800
RAM ≥ 32GB
GPU (Optional): NVIDIA GeForce RTX 3050 (8GB)
Note: If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.
|
macOS
CPU: M1 Pro/Max/Ultra
RAM ≥ 16GB
Window
CPU: Intel i7 12th Gen or AMD Ryzen 7 5800
RAM ≥ 32GB
GPU (Optional): NVIDIA GeForce RTX 3050 (8GB)
Note: If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.
|
|
Recommended PC Requirements
|
macOS
CPU: M2 Pro/Max/Ultra,M3 Pro/Max/Ultra
RAM ≥ 24GB
Windows
CPU: Intel i9 12th Gen or better
RAM ≥ 64GB
GPU: NVIDIA RTX 4060 (8 GB) or better
|
macOS
CPU: M2 Pro/Max/Ultra,M3 Pro/Max/Ultra
RAM ≥ 24GB
Windows
CPU: Intel i9 12th Gen or better
RAM ≥ 64GB
GPU: NVIDIA RTX 4060 (8 GB) or better
|
|
Compatible Operating Systems
|
Windows 10/11 (64-bit), macOS 11.0 or better
|
Windows 10/11 (64-bit), macOS 11.0 or better
|
|
Output File Formats
|
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
|
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
|
|
Ready to Print 3D Models
|
✔
|
✔
|
|
Wi-Fi
|
6
|
6
|
|
Connector Type
|
USB Type-C to Type-C
|
USB Type-C to Type-C
|
|
Power Requirements
|
DC 12V, 3A
|
DC 12V, 3A
|
|
Scanner Weight
|
447 g
|
450 g
|
|
Dimensions (L x W x H)
|
211 × 94 × 47 mm
|
211 × 94 × 47 mm
|
|
Special Object Scanning
|
Please use scanning spray when scanning
transparent or specular surfaces.
|
Please use scanning spray when scanning
transparent or specular surfaces.
|
|
User Recalibration
|
Yes
|
Yes
|
|
Supported Accessories
|
Marker Block Kit, Mobile Kit (3rd Gen)
|
Marker Block Kit, Mobile Kit (3rd Gen)，Dual-axis Turntable
|
|
Notes
|
1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
2. Class 1 Laser Safety Tips:
1) The product uses a Class 1 laser projector. Avoid looking directly at it at close range! Please refer to the Class 1 laser standard document for details.
2) To prevent laser reflection, avoid placing reflective surfaces like mirrors or glass in the path of the laser beam.
3. This product has flashing lights, which may not be suitable for people with photosensitive epilepsy.
4. If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.
|
1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
2. Class 2M Laser Safety Tips:
(1) The product uses a Class 2M laser projector. Avoid looking directly at it at close range! Please refer to the Class 2M laser standard document for details.
(2) To avoid retina damage, don't look directly into the laser beam through optical instruments capable of magnifying it (e.g., telescopes, and camera lenses).
(3) To prevent laser reflection, avoid placing reflective surfaces like mirrors or glass in the path of the laser beam.
3. This product has flashing lights, which may not be suitable for people with photosensitive epilepsy.
4. If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.
|
What’s in the Box
MetroY
MetroY 3D Scanner
USB Type-C to Type-C Cable
Power Adapter*
Markers

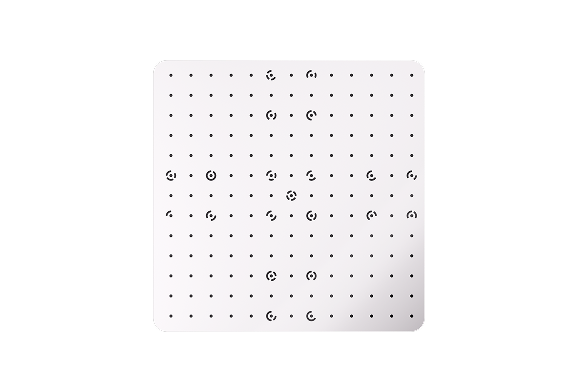

Calibration Board

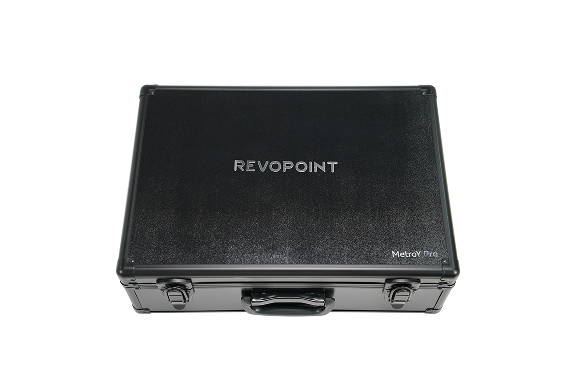

Carrying Case
MetroY Pro
MetroY Pro 3D Scanner
USB Type-C to Type-C Cable
Power Adapter*
Markers
Calibration Board
Carrying Case
Tripod
Dual-axis Turntable
Sample Bust
Mobile Kit （3rd Gen）
Notes:
The power adapter may vary depending on the country or region.
