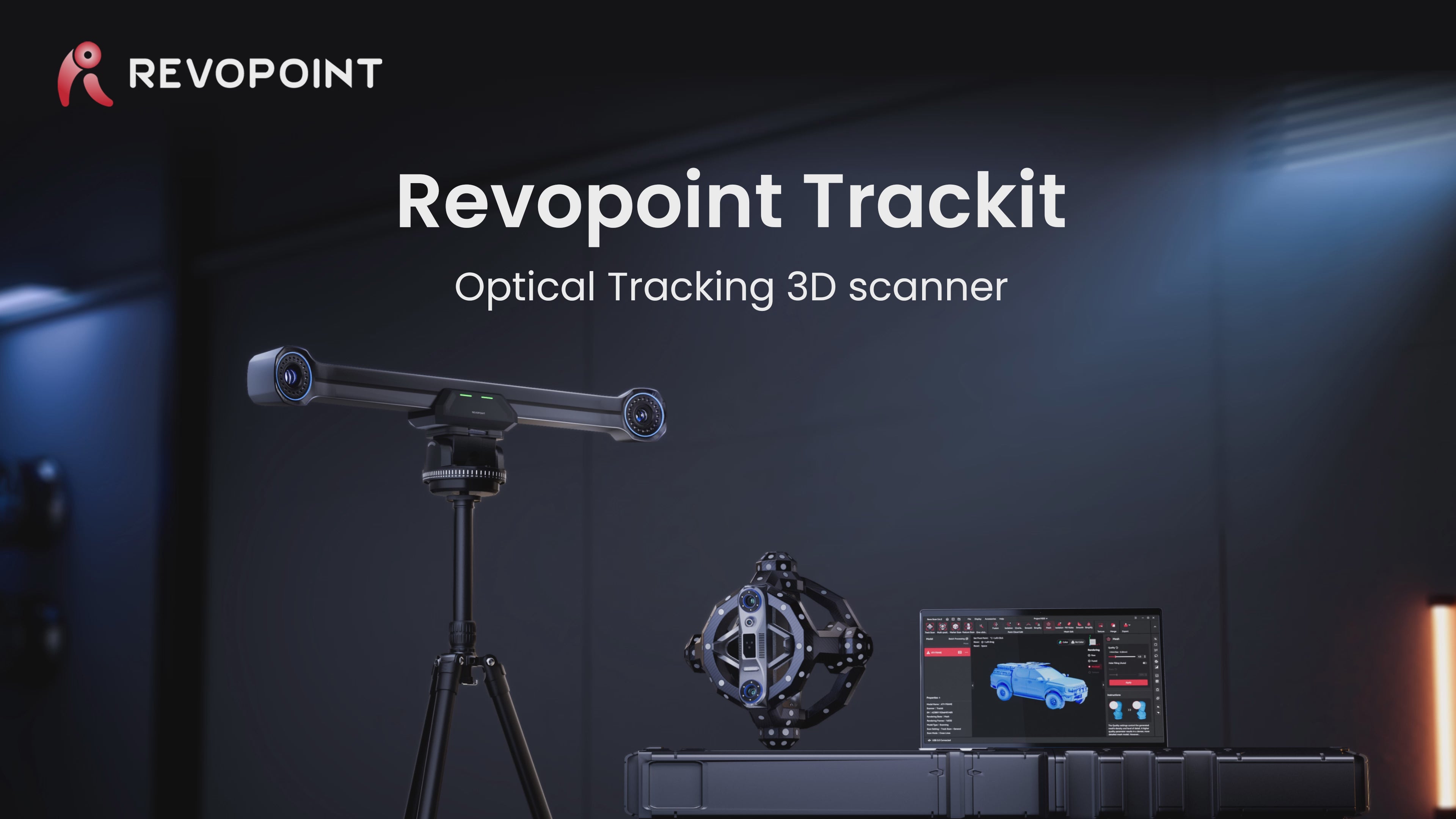

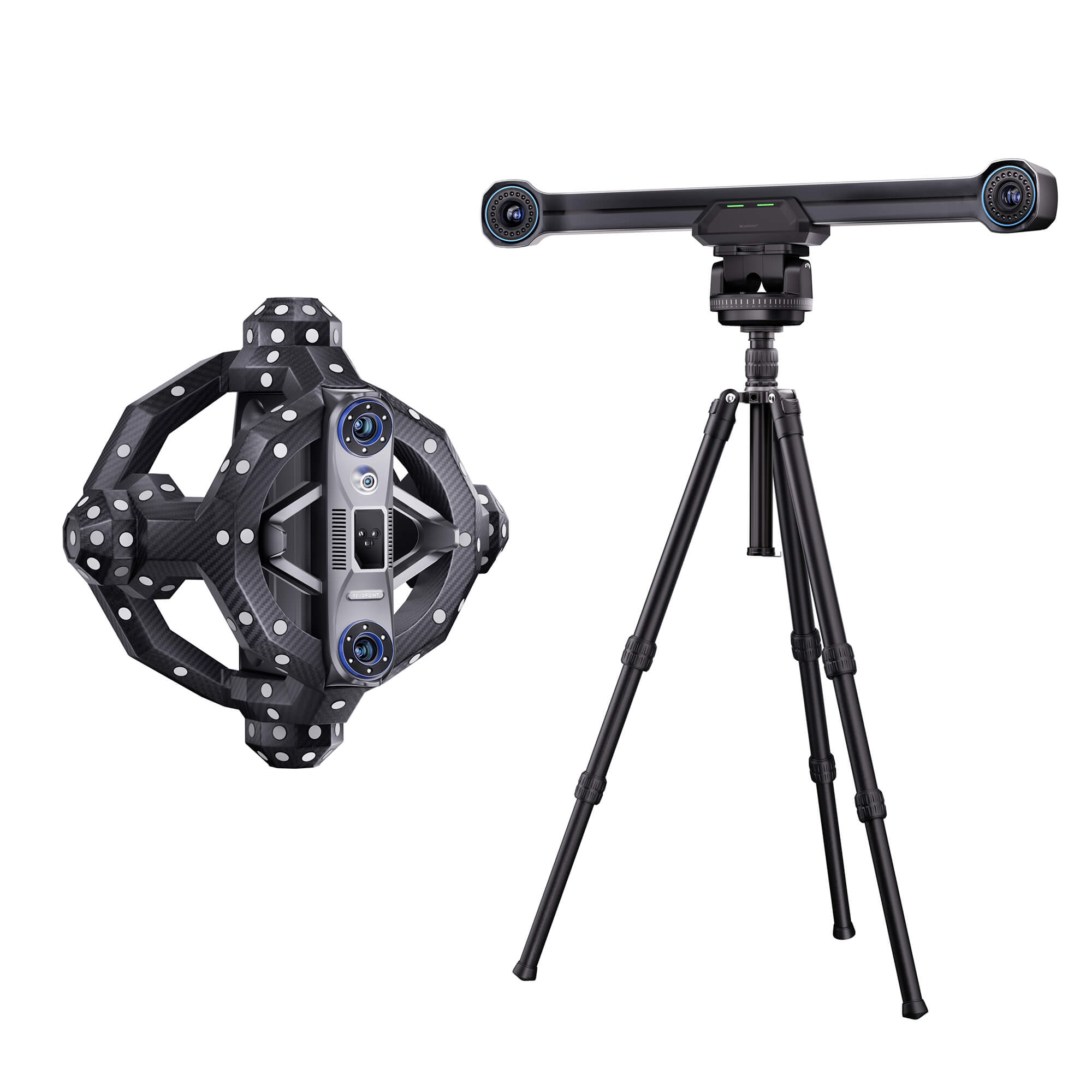

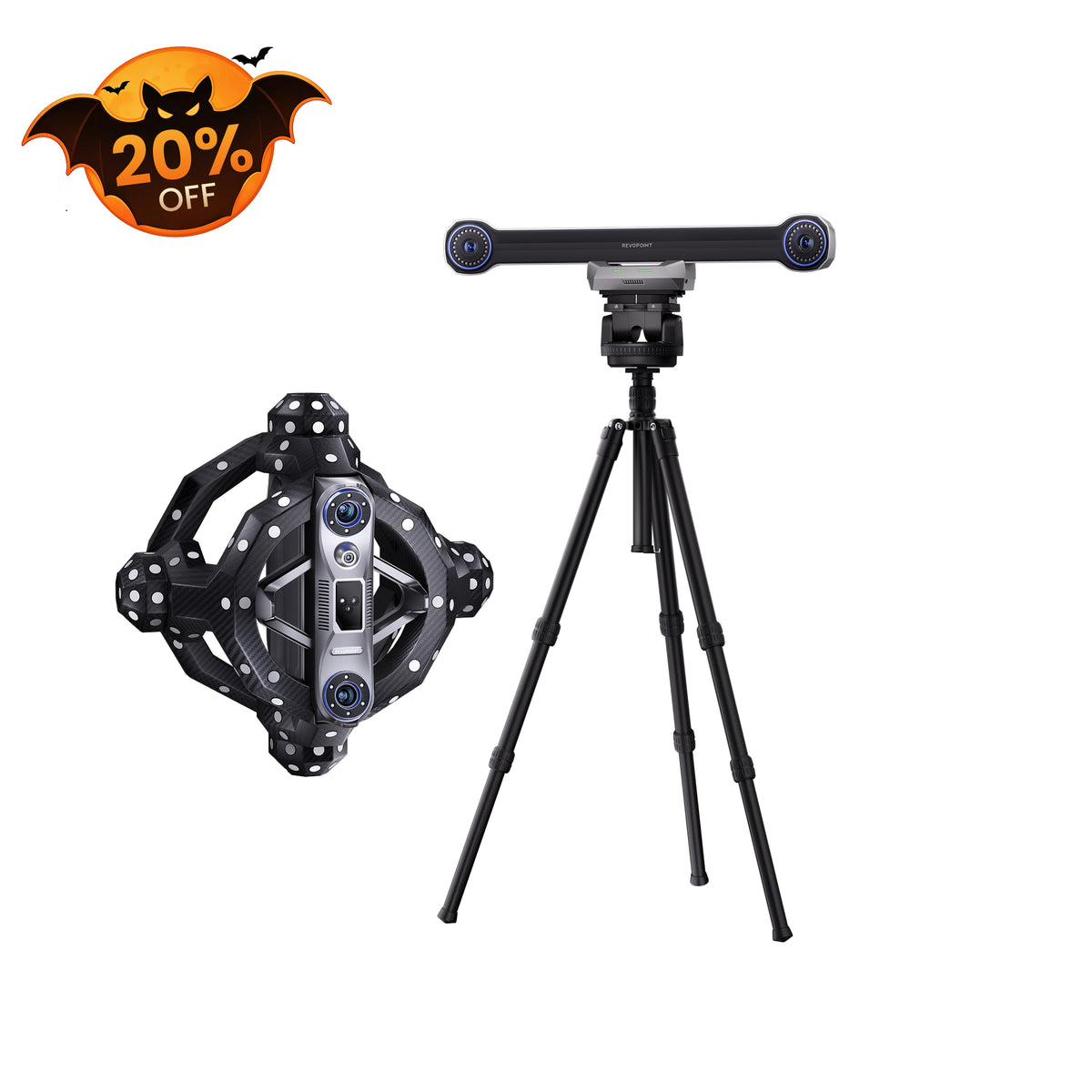

Revopoint Trackit: Optical Tracking 3D Scanner for Marker-free Scans
We Provide
- 24/7 Customer Service
- 1-on-1 Free Training
- Instant Proforma Invoice
Scans Rapides : 30 Lignes
Laser Bleues Croisées
Exactitude volumétrique
0,025 mm + 0,04 mm x L(m)
Capture d'objets allant
de 10 mm à 6 m
Scans sans marqueurs
Repositionnement de
la station de base
Étalonnage entièrement
automatisé

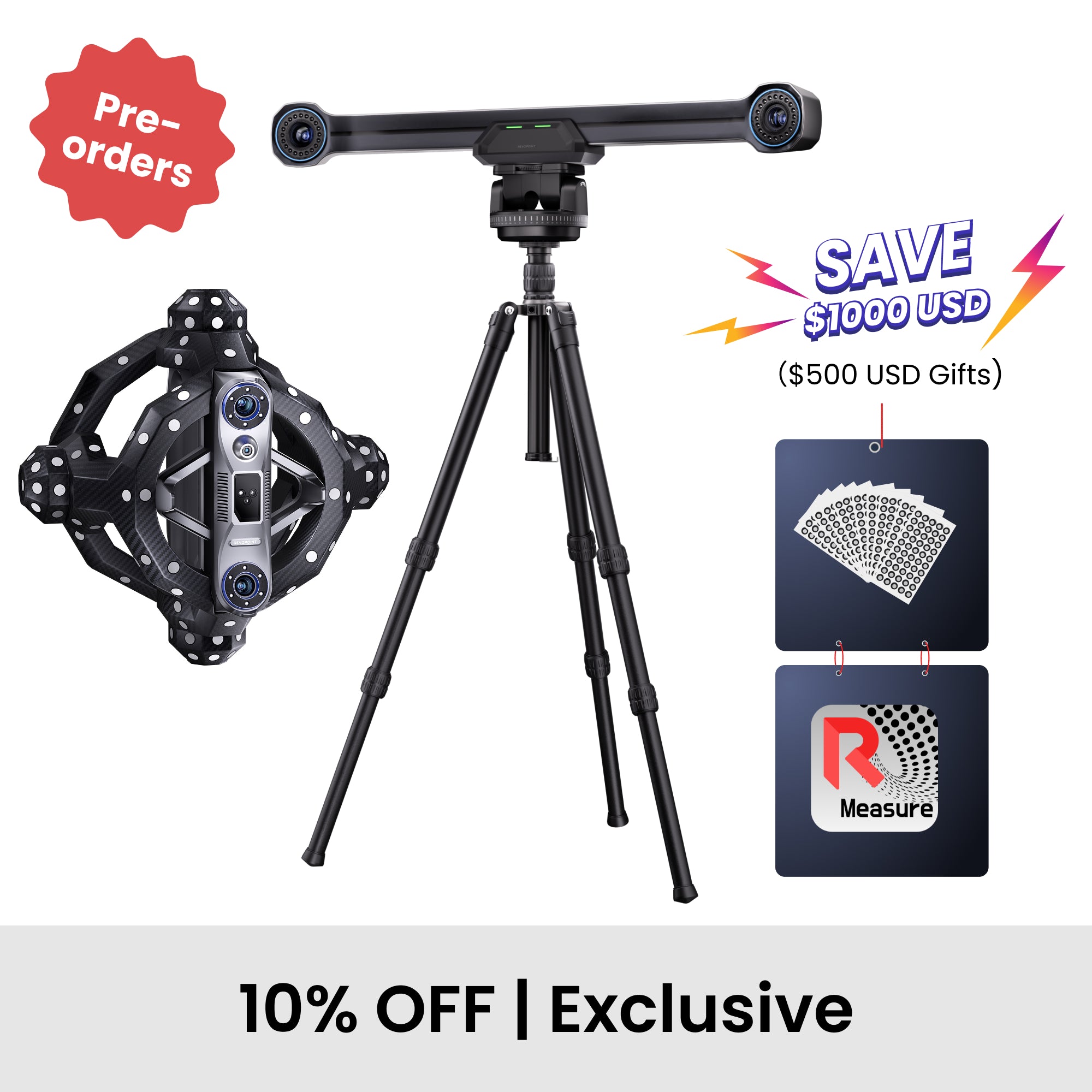

Précommandez maintenant, l'expédition est prévue pour fin août.
Méthodes de paiement sûres et fiables.
Take a Closer Look
+ mode ligne unique
0,025 mm + 0,04 mm x L(m)
High Accuracy Small to Big Scans
Superb Scanning Details
Create detailed 3D models ready for dimensional inspection in quality
control or scan-to-CAD conversion for reverse engineering.

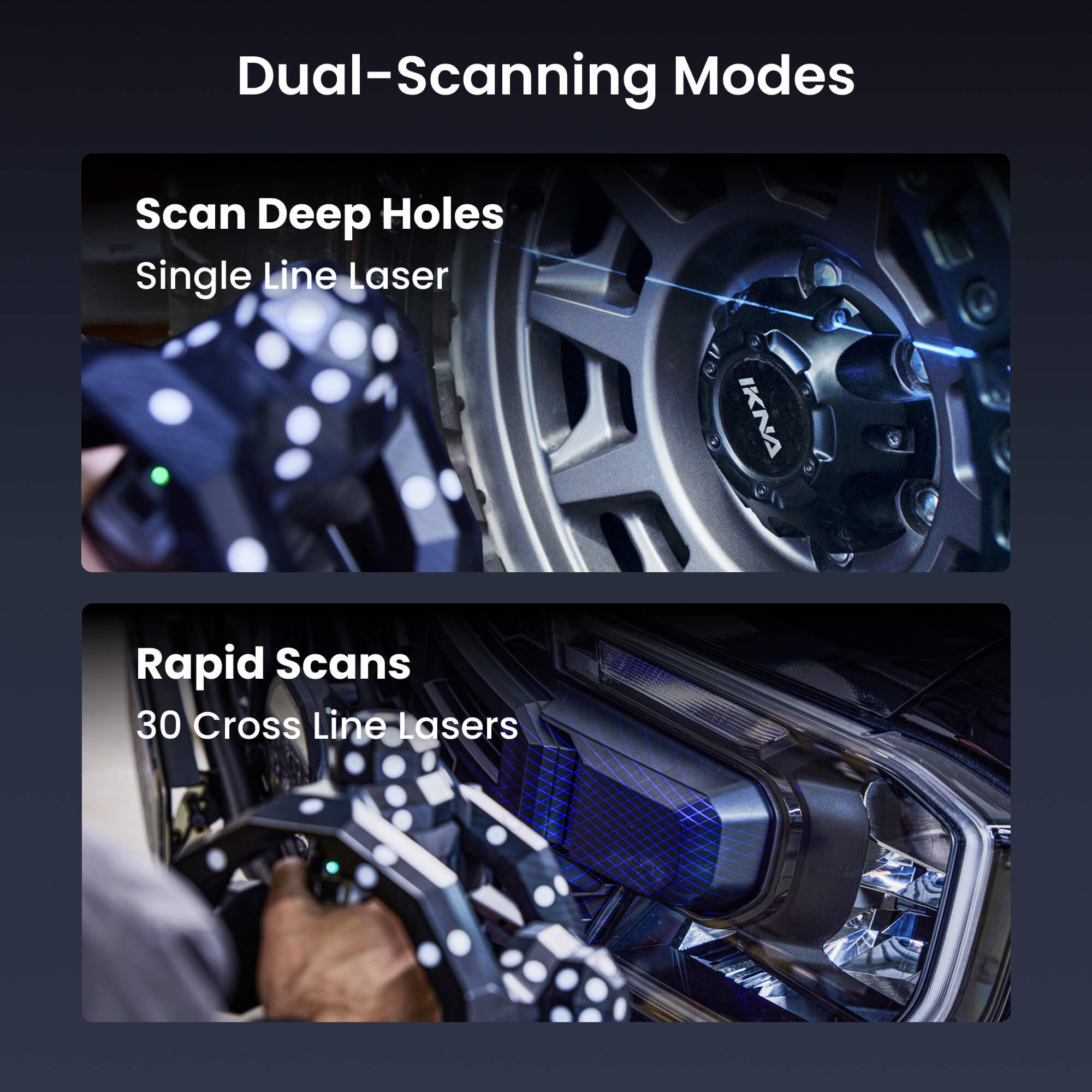

Dual Blue Laser Capture Modes
Fast Scans: 30 Cross Lines
Fast Scans: 30 Cross Lines
Efficiently scan surface areas, including dark or shiny ones, without using scanning spray.
Deep Holes: Single Lines
Deep Holes: Single Lines
Ensure that fine details like gear teeth, deep holes, crevices, and recessed areas are fully captured.
Optical Tracking or Standalone Handheld Scans
Adapt to various scanning situations by switching between optical tracking and
standalone handheld 3D scans. Easily capture hidden or interior areas that the base
station cannot see using Trackit’s standalone features.
Optical Tracking Scans
Standalone Handheld Scans

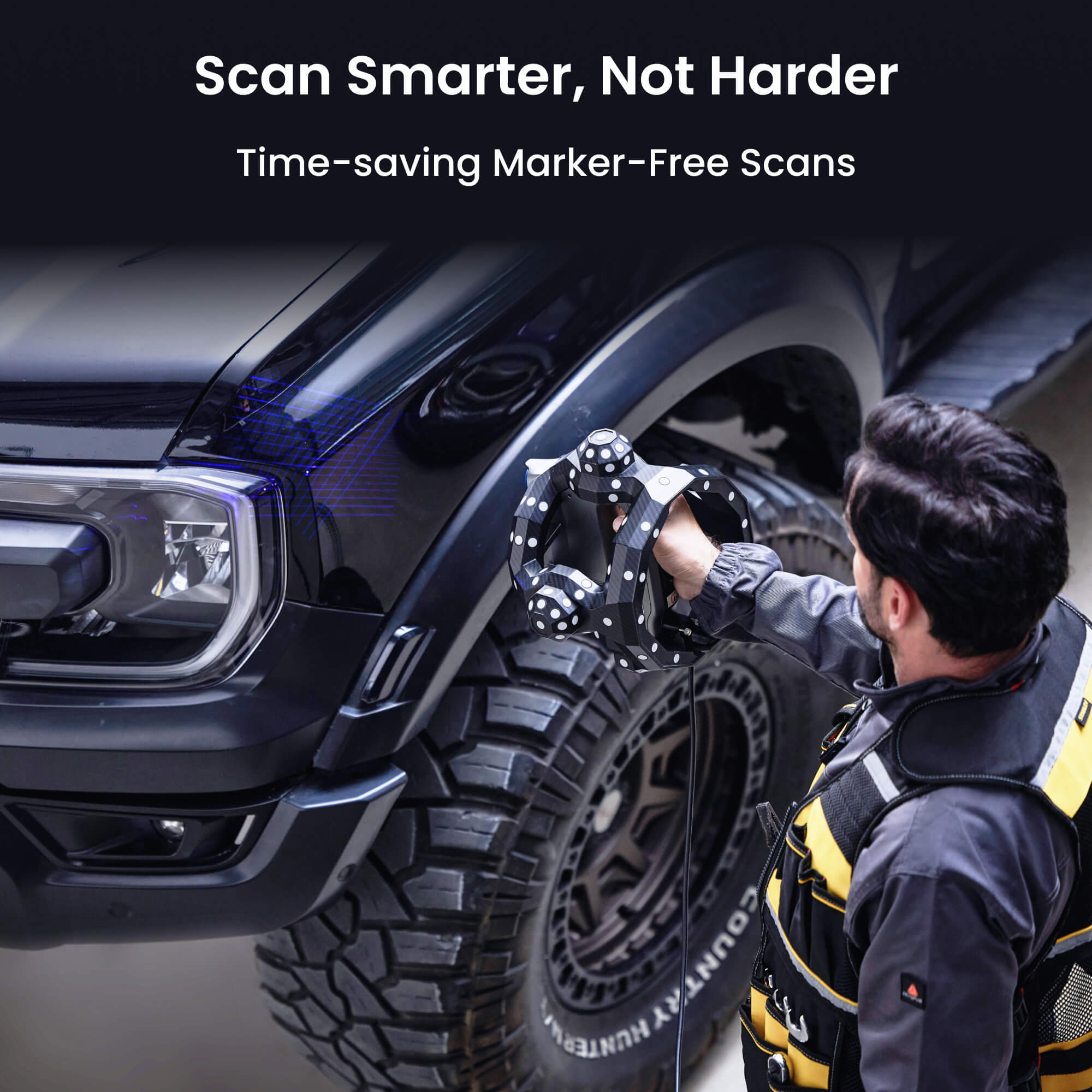

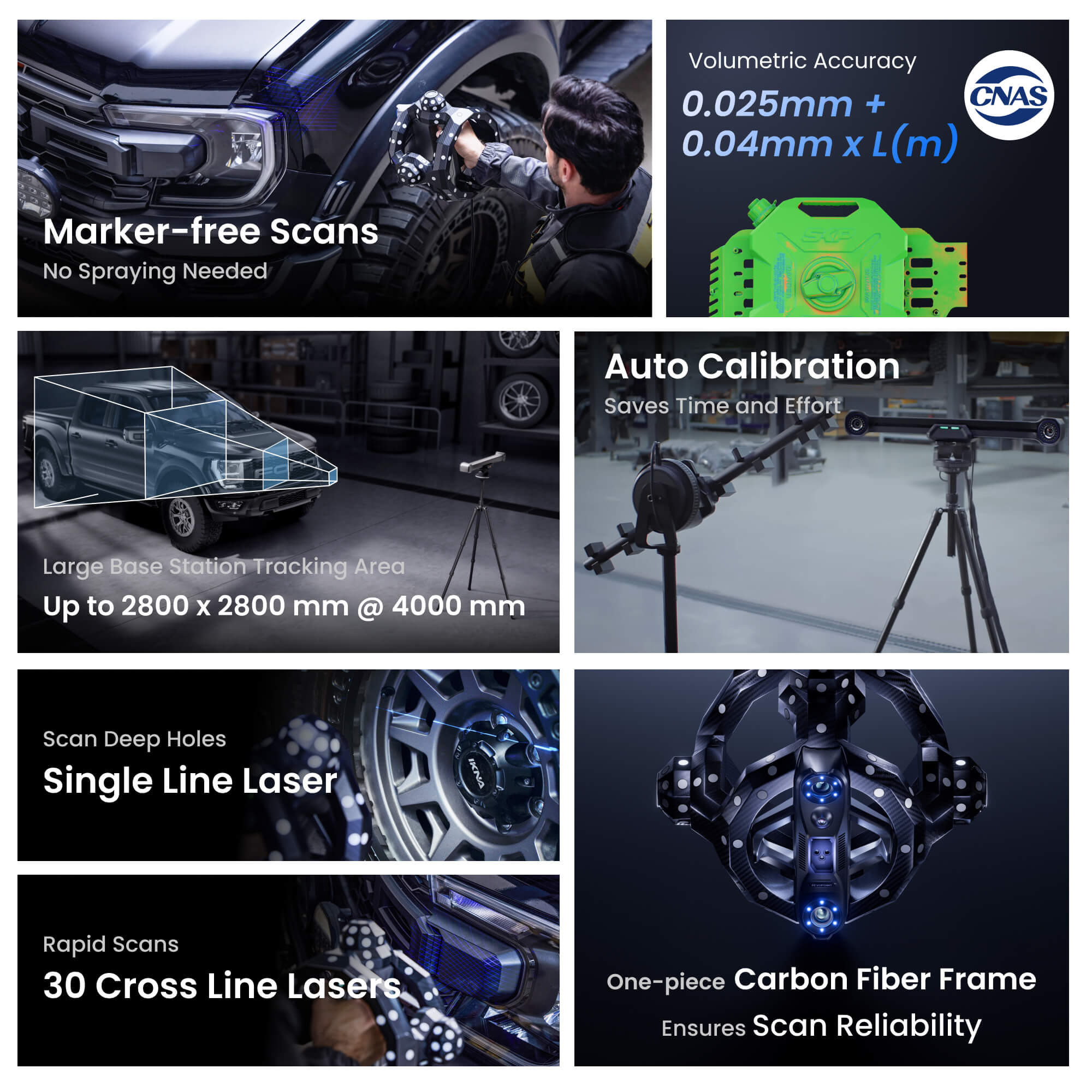

Time-saving Marker-Free Scans
The Trackit Tracking 3D Scanner uses advanced optical tracking to track its location in real time
and captures accurate 3D data without needing markers. Supercharge your 3D laser scanning
efficiency for workpieces ranging from 10 mm to 6 meters with Trackit's dual-camera base station.

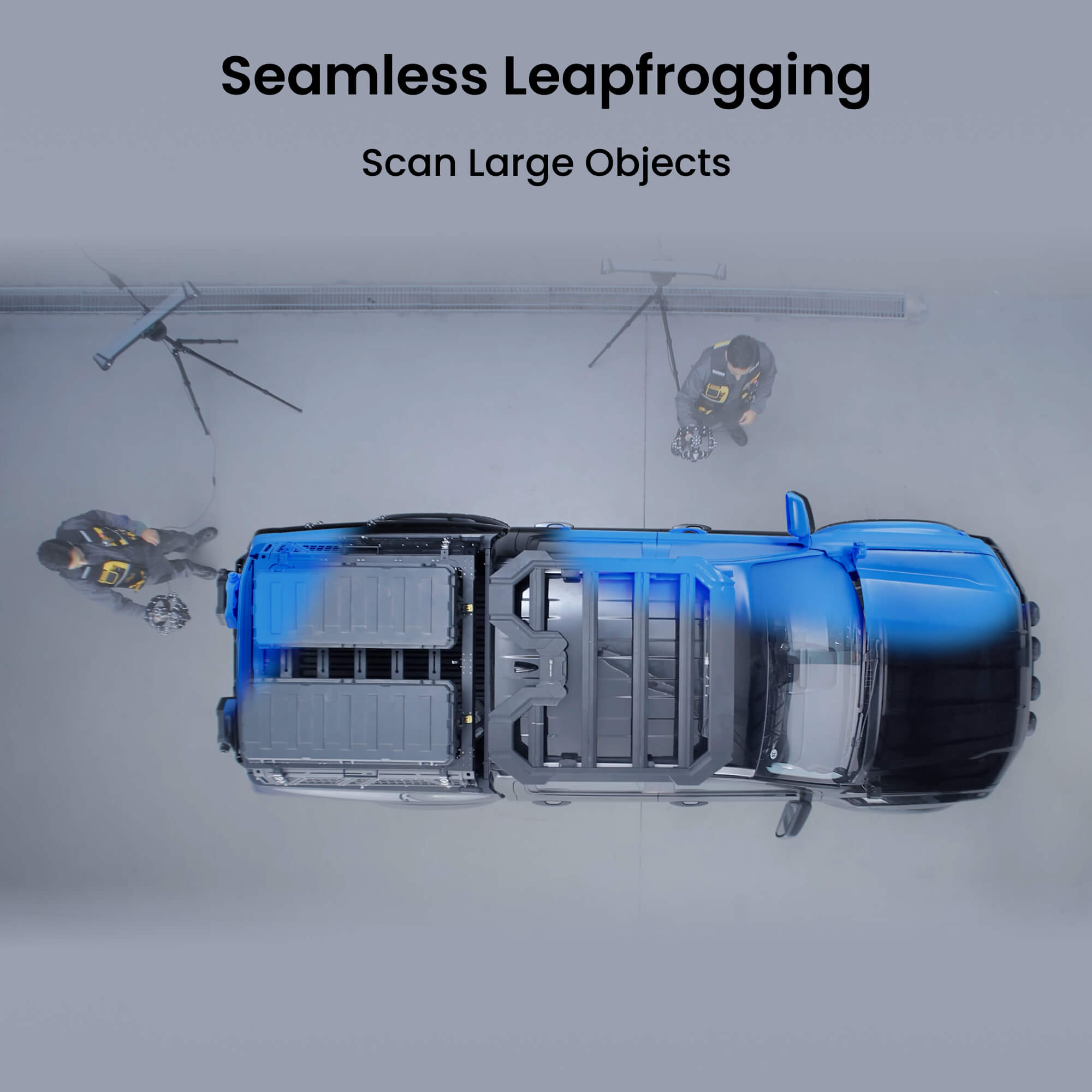

Easily Scan Large Workpieces
Effortlessly capture large workpieces by leapfrogging* Trackit's base station around them as you rapidly
capture their surfaces at up to 1.5 million measurements per second. Trackit's anchor block system
ensures flawless frame stitching with every leapfrog, enabling you to efficiently create professional 3D
models. The highly adjustable tripod lets you easily position Trackit to meet multiple capture scenarios.

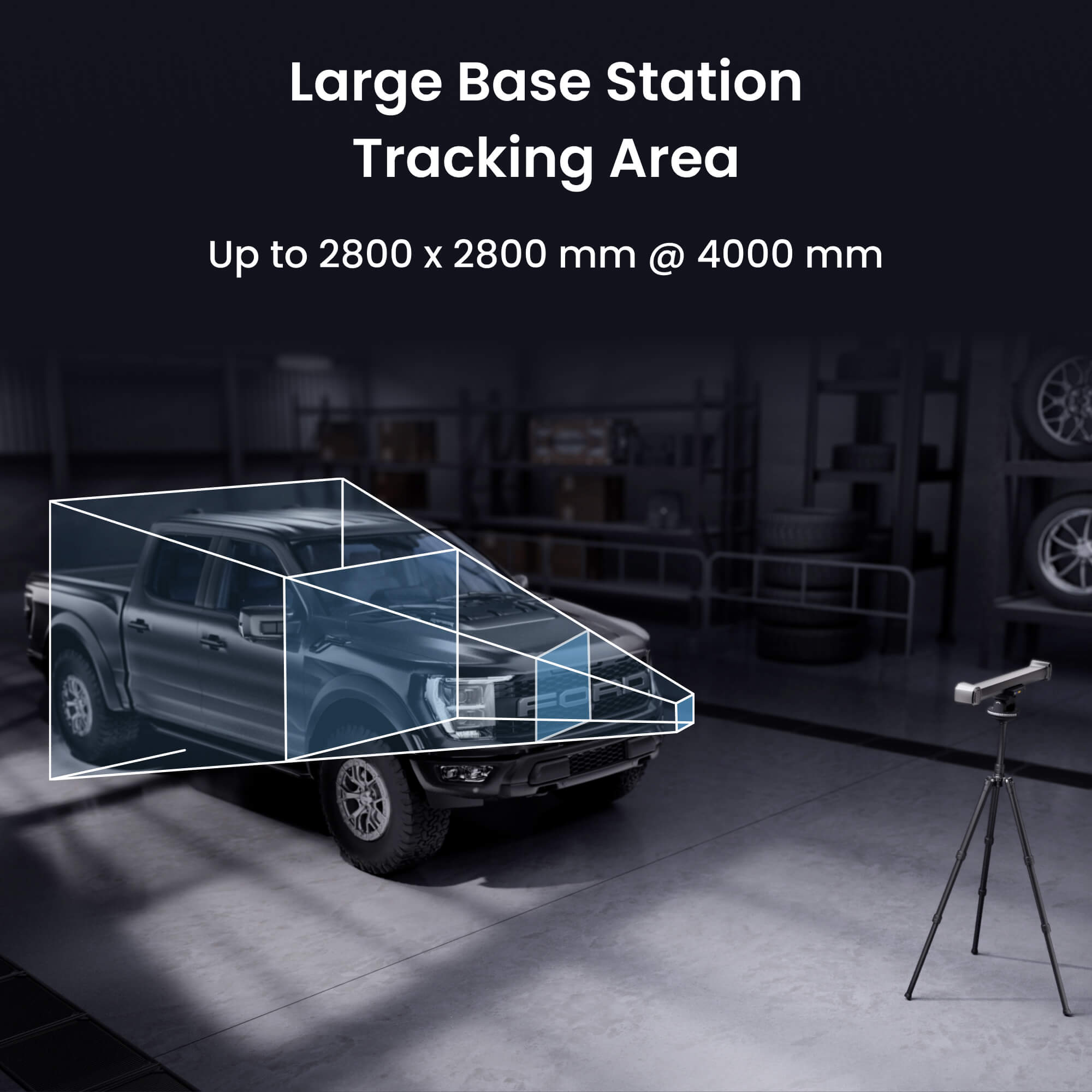

Maximum Tracking Frame Area:
3260 x 2845 mm @ 4000 mm
Easily Maneuver:
6-meter cable
Tracker Working Distance:
1.5 to 4 m
*Moving the base station around large objects
to fully capture them.
Auto Calibration Saves Time and Effort
Skip complex and lengthy calibration
processes and get perfect multi-pose
calibrations free from human errors.
Trackit’s smart auto-calibrating dual-axis
gimbal system does all the hard work with
total precision, so you'll always have a
reliable, accurate, and easy calibration
process.

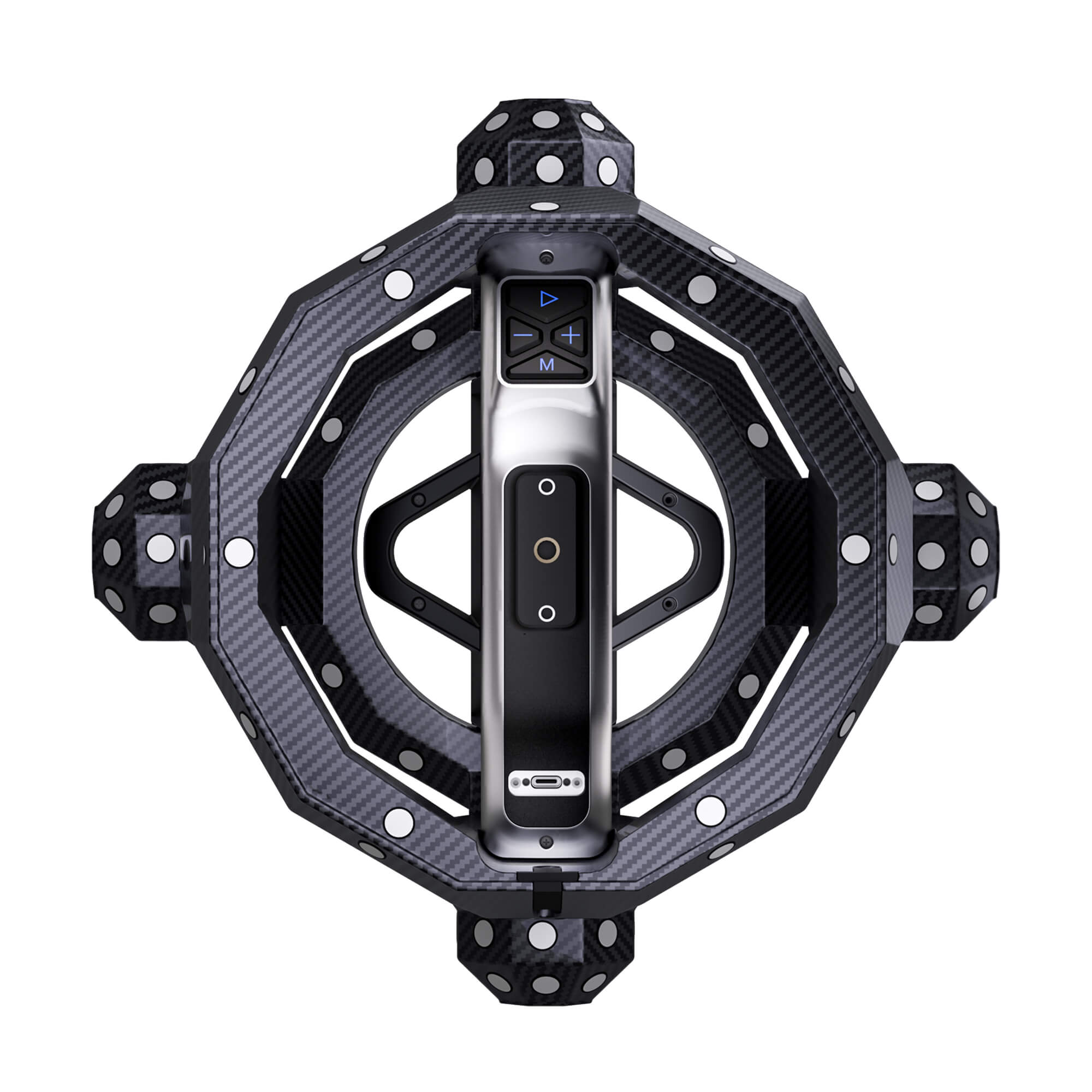

Robust Carbon Fiber Frame
Ensure consistent scan data every time with
Trackit's durable one-piece carbon fiber
frame, eliminating accuracy errors due to
frame deformation shifting markers.
Designed for demanding environments, its
sturdy yet lightweight construction is
comfortable for long scanning sessions.
Realistic Texture Mapping
Capture the object's surface texture to create vivid 3D models with Trackit's high-
resolution RGB camera, or use its texture data with Revo Measure for accurate
measurements and professional reports.

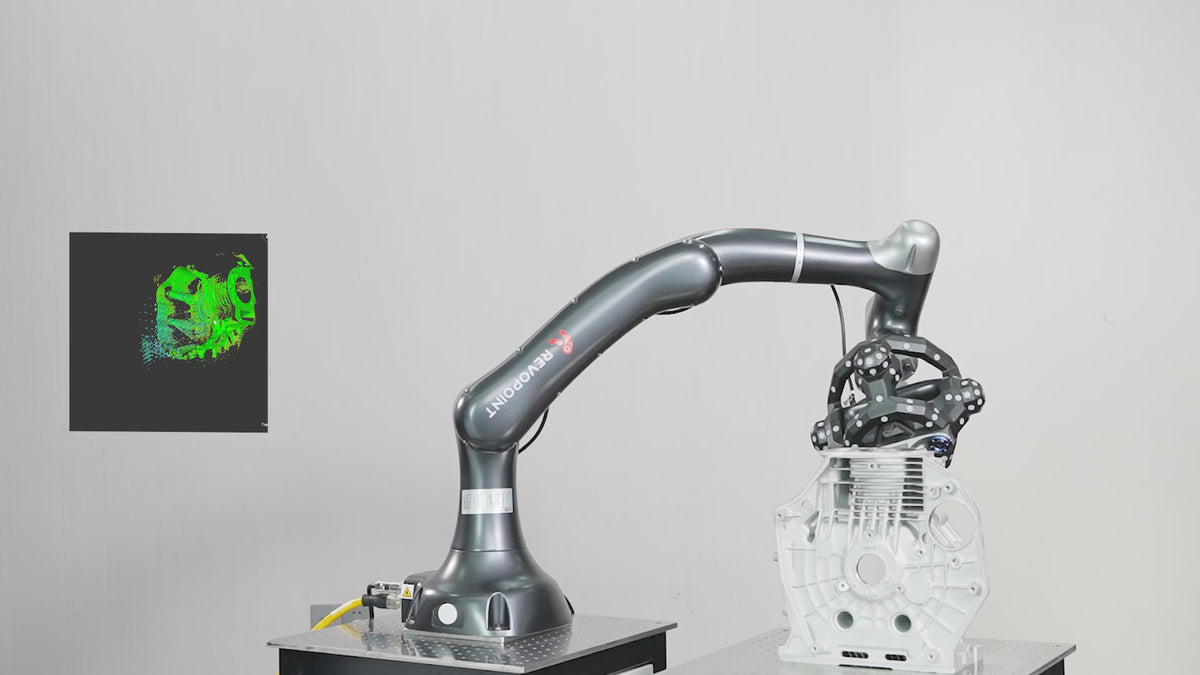

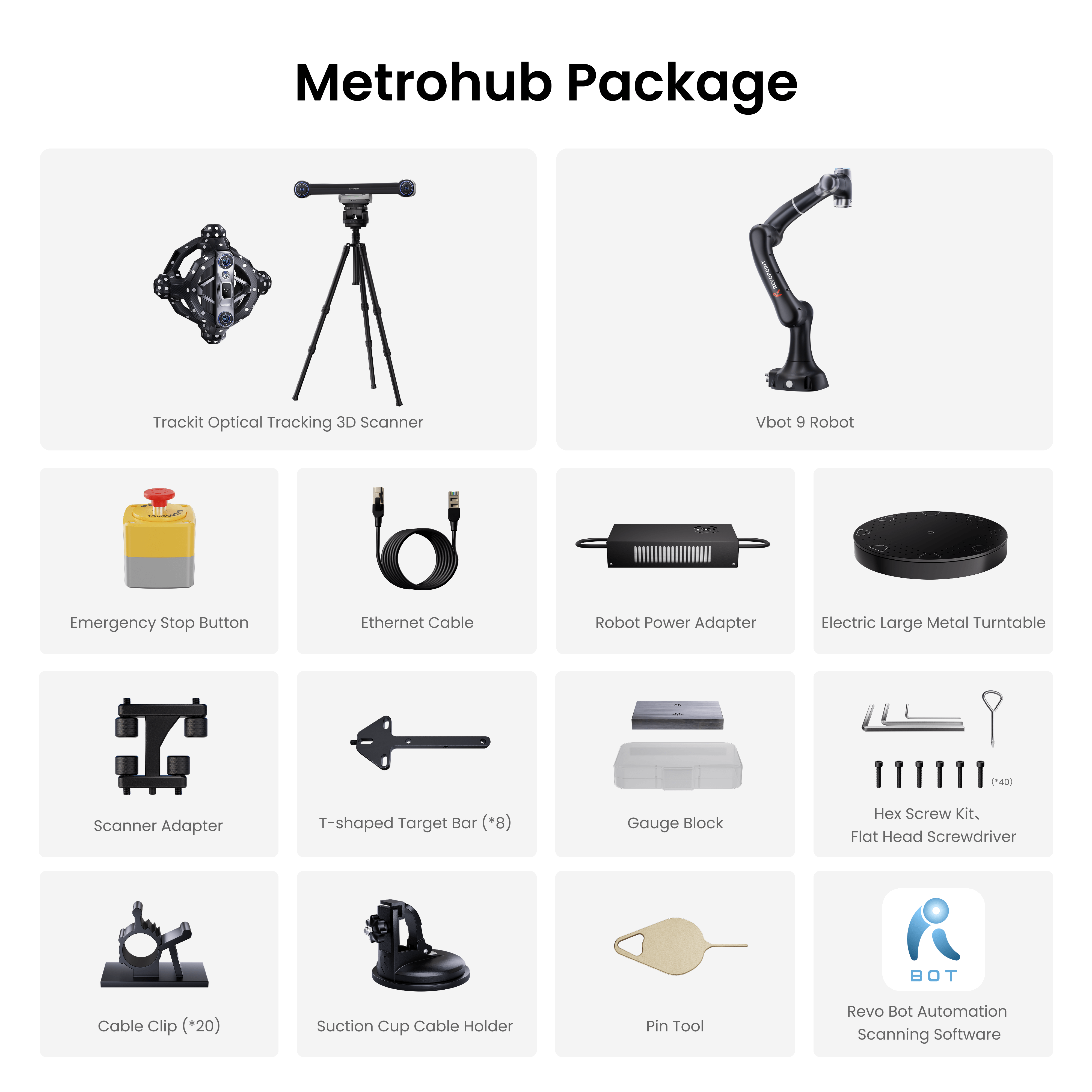

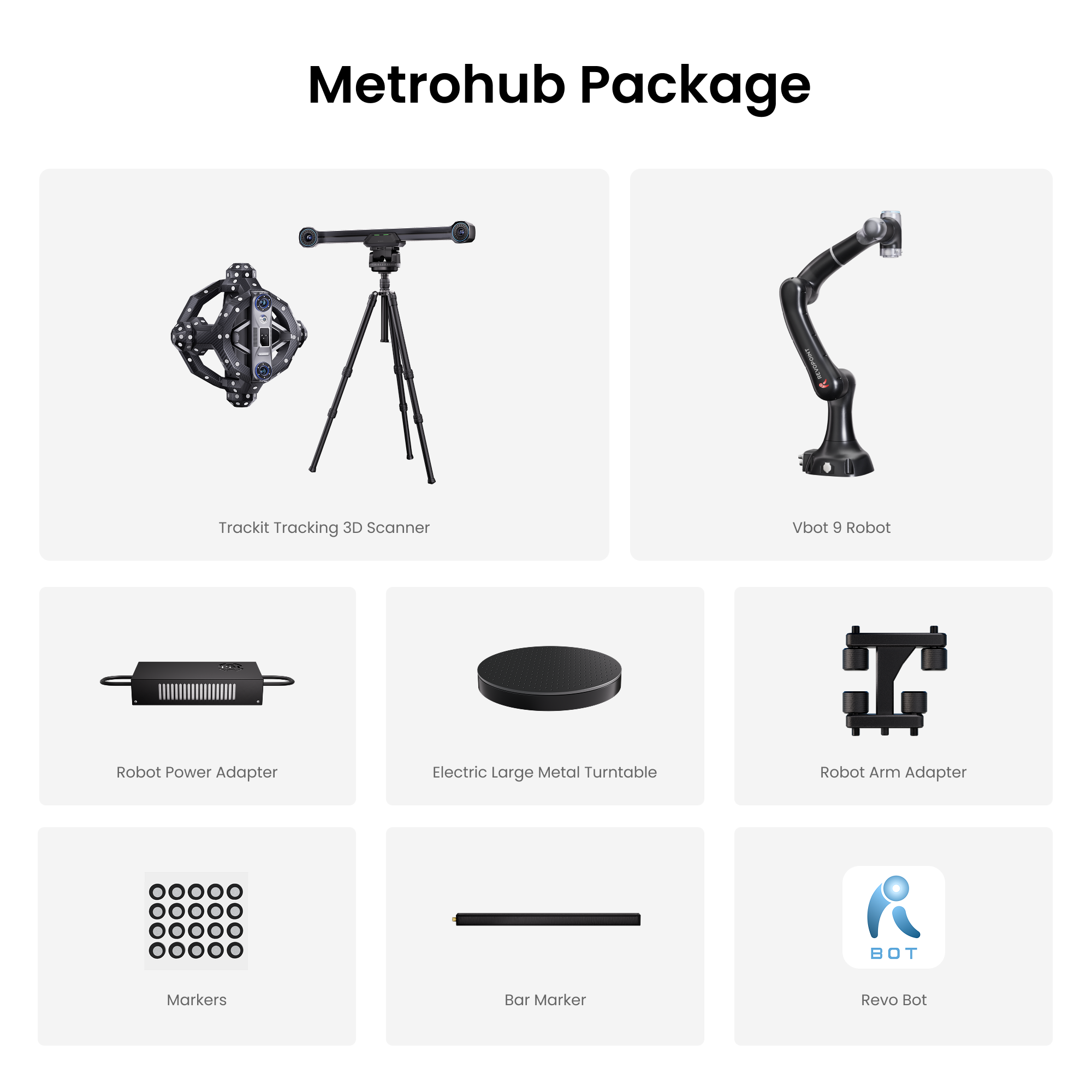

Trackit Robot 3D Scanning System
The six-axis collaborative robot equipped with the Trackit Optical Tracking 3D Scanner
enables fully automated point cloud capture of complex shapes up to 0.5 m in diameter,
with a volumetric accuracy up to 0.05 mm
Intelligent Temperature Monitoring
Trackit's high-sensitivity temperature sensors
monitor fluctuations, showing the Tracker and
Scanner's current temperature in real time. This
ensures optimal operation and prevents
temperature-related accuracy drift, maintaining
high 3D scanning accuracy.

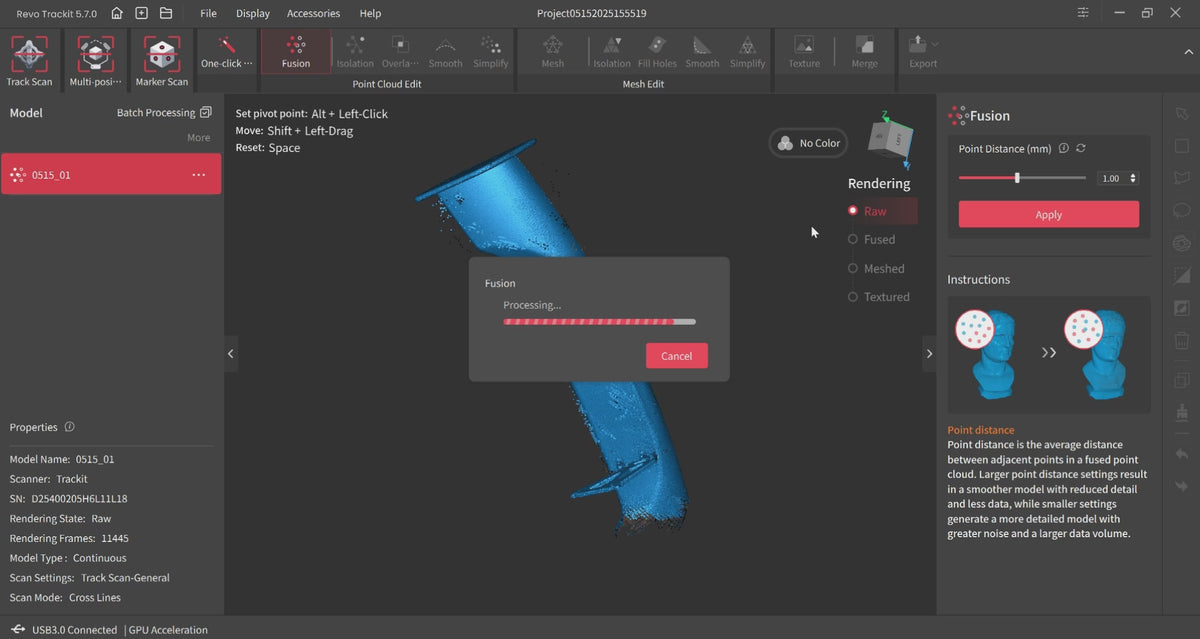

Revo Trackit: Top-tier Software
Revo Trackit easy-to-use and free software for scanning, editing, processing, and calibrating.
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

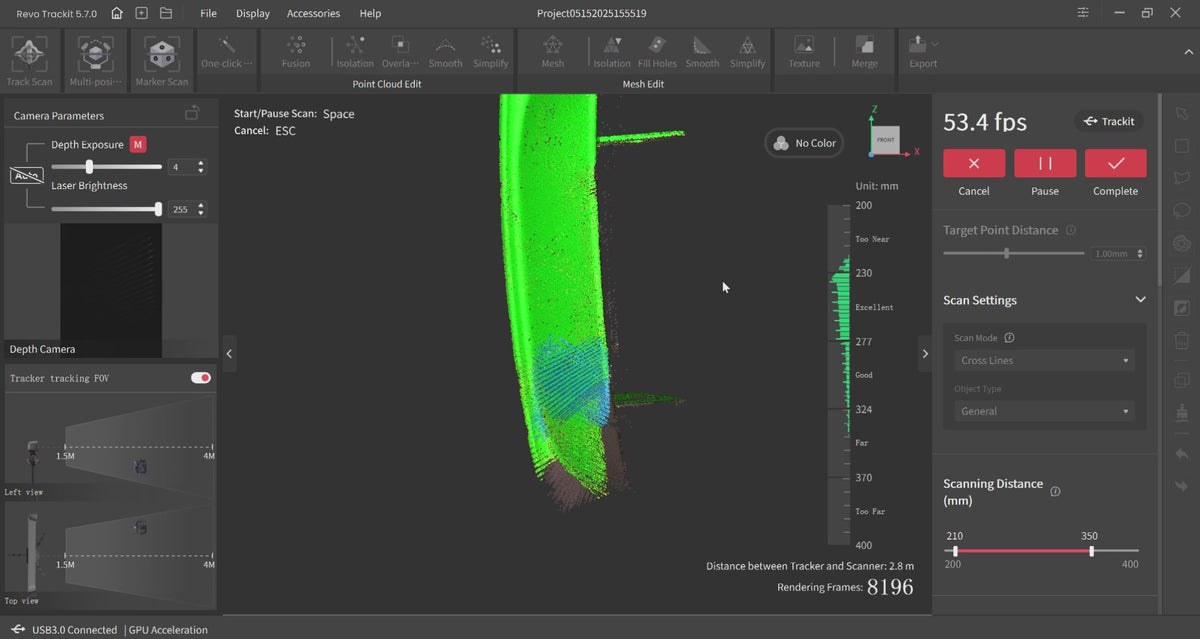

Scan
Granular scan settings let you control every aspect of the scanning
process, ensuring optimal point cloud capture. Ensure a perfect scan with
real-time point cloud monitoring to check if you've captured enough data.
3D Measurement Solutions
Revo Design Software
Revo Design (identical functions to QUICKSURFACE Lite) bridges the gap between 3D scanning
and engineering design, streamlining the conversion of 3D scan data into CADs. With robust
tools for mesh editing, freeform and parametric modeling, and scan-to-CAD workflows, Revo
Design is ideal for reverse engineering, product development, and industrial design.
Revo Measure Software
Efficiently compare your point clouds or meshes to CADs using our new software, Revo
Measure. Its powerful tools offer high-accuracy model measurement, parameter
extraction, volume measurement, and GD&T analysis tools.
Accurate Dimension
Measurement
GD&T analysis
Model
Deviation Analysis
Section Creation and
Measurement
Measurement
Report Export
Support for Multiple Data
Formats: PLY, OBJ, STL, and PTS
* Supports Chinese, Traditional Chinese, Japanese, Korean, English,
French, German, Italian, Spanish, Russian, Portuguese, and Turkish.
Trackit's Models Gallery

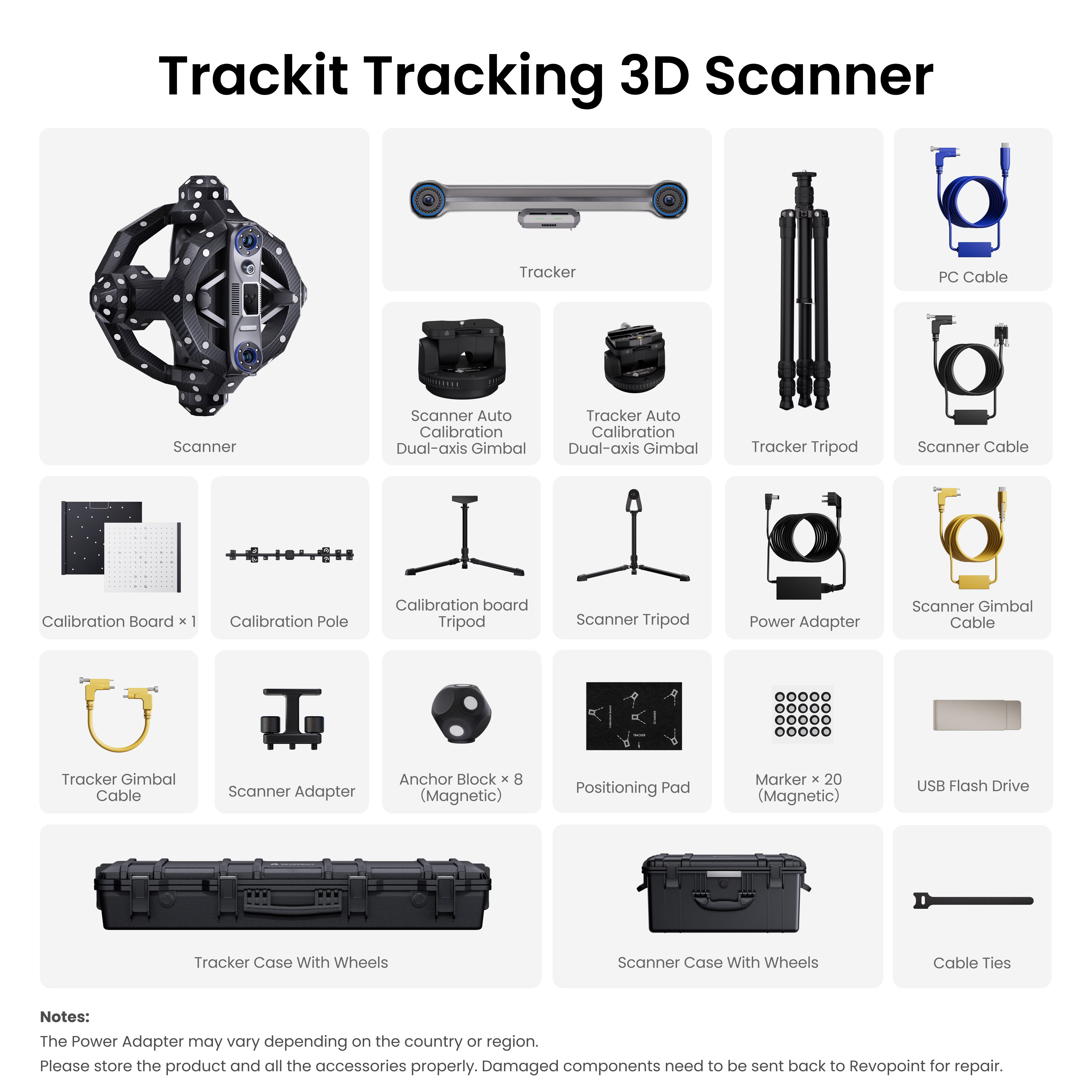

What’s in the Box

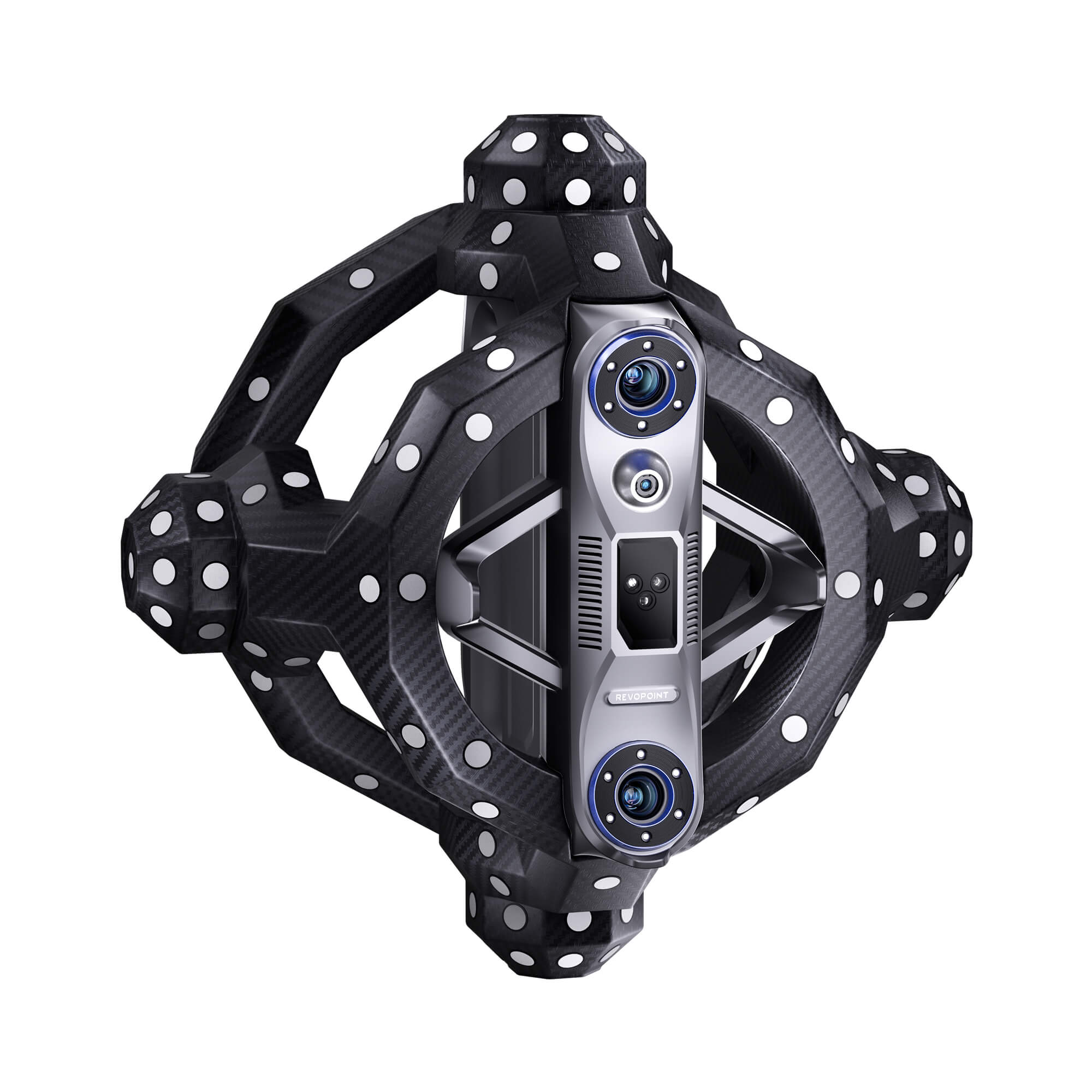

Trackit Tracking 3D Scanner
Scanner

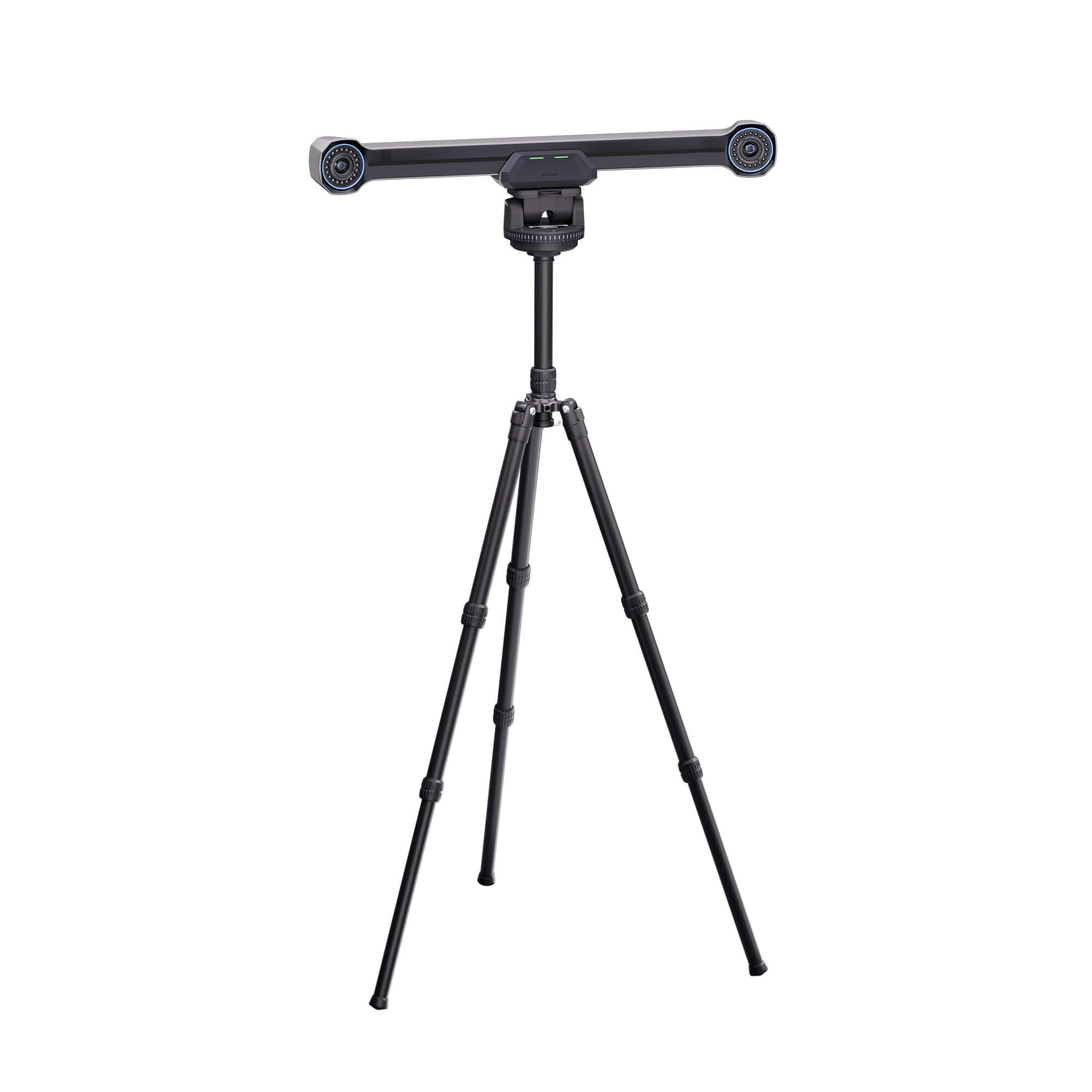

Tracker
Tracker Tripod
Scanner Auto Calibration
Dual-axis Gimbal
Tracker Auto Calibration
Dual-axis Gimbal
Calibration Board × 1
Calibration Pole
Calibration Board Tripod
Scanner Tripod
Power Adapter
PC Cable
Scanner Cable
Scanner Gimbal Cable
Tracker Gimbal Cable
Cable Ties
Marker × 20
（Magnetic）
Anchor Block × 8
（Magnetic）
Positioning Pad
Scanner Adapter
USB Flash Drive
Tracker Case With Wheels
Scanner Case With Wheels
Notes:
1. The Power Adapter may vary depending on the country or region.
2. Please store the product and all the accessories properly.
3. Damaged components need to be sent back to Revopoint for repair.
Specifications
3D Scanner
Tracker
Single-frame Accuracy
①0.02 mm
Part Size Range (Recommended)
0.01 - 6 m
Fused Point Distance, up to
0.05 mm
Volumetric Accuracy (Tracking system)
0.025 mm + 0.04 mm × L (m)
Working Distance
1500 - 4000 mm
Minimum Tracking Frame
1304 × 1067 mm @ 1500 mm
Scanning Speed, up to
1,500,000 Point/s
Maximum Tracking Frame
3260 × 2845 mm @ 4000 mm
Light Source
②30 Blue Cross Laser Lines
1 Blue Single Laser Line
Tracking Volume
11 m³
Working Distance
200 - 400 mm
Single Capture Area at
Nearest Distance
160 × 70 mm @ 200 mm
Weight
1.8 kg
Single Capture Area at
Furthest Distance
320 × 215 mm @ 400 mm
Dimensions (L × W × H)
686 × 115 × 111 mm
Weight
1.2 kg
Tracking Band
Infrared
Dimensions (L × W × H)
295 × 295 × 205 mm
User Recalibration
Auto Calibration
Tracker has an auto gimbal calibration system. The scanner requires manual calibration.
Operating Temperature Range
③0 - 40 ℃
Supported Accessories
Calibration Board, Calibration Pole, Auto Calibration Dual-axis Gimbal, Anchor Block, Large Turntable
Output Formats
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Reviews on YouTube
FAQ
What’s special about Trackit?
Trackit is Revopoint's latest Tracking 3D Scanner. It features a high-accuracy 3D scanner and an optical tracker unit tailored for fine-detail scanning and measurement in industrial applications. The Trackit system enables rapid acquisition of 3D point clouds for both small and large objects, all without the need for marker preparation.
What’s the difference between Trackit's two scanning modes?
(1) 30 Blue Cross Laser Lines: Provides high-precision and high-efficiency scanning of surface areas, including direct scanning of black, reflective, and metallic ones.
(2) 1 Blue Single Laser Line: Projects single high-quality blue laser line, making it suitable for fine scanning of narrow areas, such as deep holes and grooves, to ensure complete capture of complex structures.
Does Trackit have a built-in battery? Can Trackit's Scanner connect to a PC via Wi-Fi?
No, Trackit's 3D Scanner and Tracker optical tracking base station do not have built-in batteries and require a power adapter for power supply.
No, the Scanner can only connect to a PC via a USB 3.0 cable.
Does temperature affect use and scanning accuracy?
Trackit has built-in high-sensitivity temperature sensors that monitor fluctuations in real time. The software features a temperature visualization interface, displaying the current status of the Tracker and Scanner. It provides indicators to show if the devices are operating optimally, preventing temperature-induced accuracy drift and ensuring high 3D scanning precision.
Can the 3D models be imported into design software?
Yes, Revo Trackit offers various file formats compatible with most design software, such as QuickSurface, Geomagic, PolyWorks, Blender, Maya, Rhino, ZBrush, Fusion 360, etc.
Point Cloud model: PLY, OBJ, ASC
Mesh model: PLY, OBJ, STL, FBX, GLTF, 3MF
Texture model: PLY, OBJ, FBX, GLTF
What are Trackit’ s PC requirements?
Minimum PC Requirements:
System Version: Windows 10/11 (64-bit)
RAM: ≥ 32 GB
CPU: Intel i7 13th Gen or better/AMD Ryzen 7 above the 7000 series
GPU: NVIDIA GeForce RTX 3050 (8 GB)
Recommended PC Requirements
System Version: Windows 10/11 (64-bit)
RAM: ≥ 64 GB
CPU: Intel i9 12th Gen or better
GPU: NVIDIA RTX 4060 (8 GB) or better
Can Trackit's Scanner be used independently?
The Scanner can solely perform high-accuracy scans of small and medium-sized objects. This mode requires attaching markers. It should be noted that when using the scanner independently, it still requires power supply and data transmission through the Tracker.
Can Trackit safely scan people or animals?
Short exposure of class 1 lasers are generally safe for human eye ; however, it is still not recommended to scan human faces in any mode, as direct laser exposure to the eyes may cause discomfort and potential risks. Scanning other parts of the body (excluding the face) within the normal working distance is safe, and the software provides real-time distance guidance.
To perfectly scan a face or body, Revopoint MIRACO Pro, POP 3 Plus is the best option.
Class 1 lasers are generally safe for human eye observation. Trackit can be used to scan animals, but avoid direct exposure to the animal's face and eyes to prevent any adverse reactions.
Can Trackit scan the object with electronic components? Will the laser damage the component?
Sensitive electronic components will not be harmed if they are kept at least 200 mm away. It is important to ensure that the components are not positioned directly next to the scanner's laser outlet, as this area has a high energy density from laser emissions.
What is Trackit’s operating temperature range?
For optimal accuracy, we recommend operating the device in a temperature range of 20°C and 25°C (68°F to 77°F).
How do you calibrate Trackit?
Calibration is divided into two parts: the tracking system and the scanner. Users can perform fully automatic calibration of the tracking system using the software provided with the device and the dual-axis gimbal. The scanner requires manual calibration. Please refer to the Trackit Quick Start Guide or visit our official YouTube account, “Revopoint 3D,” to watch the calibration tutorial video.
