Revopoint Handheld 3D Scanner Comparison

Home

3D Scanner Comparison

Spezifikation Vergleich

3D Scanners

Optische Tracking-3D-Scanningsysteme

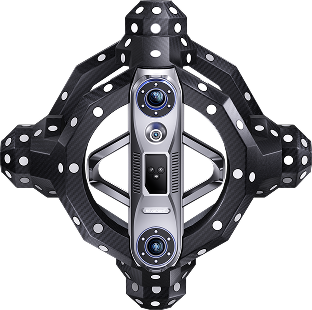

3D Scanner

Tracker

Single-frame Accuracy①

0.02 mm

Fused Point Distance, up to

0.05 mm

Scanning Speed, up to

1,500,000 Point/s

Light Source②

30 Blue Cross Laser Lines 1 Blue Single Laser Line

Working Distance

200 - 400 mm

Single Capture Area at Nearest Distance

160 × 70 mm @ 200 mm

Single Capture Area at Furthest Distance

320 × 215 mm @ 400 mm

Weight

1.2 kg

Dimensions (L × W × H)

295 × 295 × 205 mm

Operating Temperature Range③

0 - 40 ℃

Output Formats

PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Part Size Range (Recommended)

0.01 - 6 m

Volumetric Accuracy (Tracking system)

0.02 mm + 0.04 mm × L (m)

Working Distance

1500 - 4000 mm

Minimum Tracking Frame

1400 × 1050 mm @ 1500 mm

Maximum Tracking Frame

2800 × 2800 mm @ 4000 mm

Tracking Volume

11 m³

Weight

1.8 kg

Dimensions (L × W × H)

686 × 115 × 111 mm

Tracking Band

Infrared

User Recalibration

Auto Calibration Tracker has an auto gimbal calibration system. The scanner requires manual calibration.

Supported Accessories

Calibration Board, Calibration Pole, Auto Calibration Dual-axis Gimbal, Anchor Block, Large Turntable

Note:
① Accuracy was acquired in a controlled lab environment. Actual results might vary, subject to the operating environment.
② Class 1 Laser Safety Tips:
1) The product uses a Class 1 laser projector. Avoid looking directly at it at close range! Please refer to the Class 1 laser standard document for details.
2) To avoid retina damage, don't look directly into the laser beam through optical instruments capable of magnifying it (e.g., telescopes and camera lenses).
3) To prevent laser reflection, avoid placing reflective surfaces like mirrors or glass in the path of the laser beam.
③ To ensure accuracy, it's recommended to use the product within an environmental temperature range of 20℃ to 25℃ (68℉ to 77℉).
④ This product has flashing lights, which may not be suitable for people with photosensitive epilepsy.

Gleichen Gegenstand ausblenden

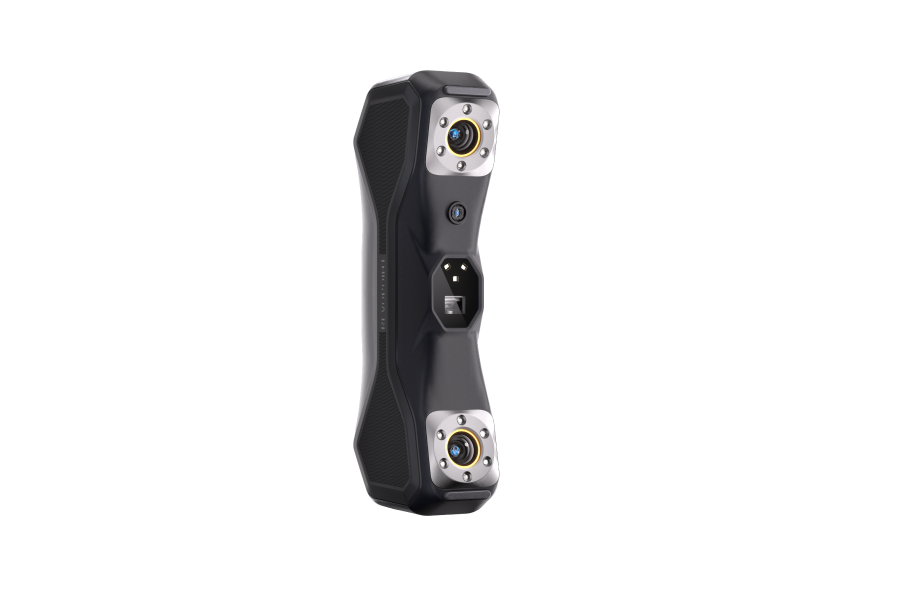

MetroY Pro

MetroX

INSPIRE 2

$1,759.00

BUY NOW >

$1,099.00

BUY NOW >

$459.00

BUY NOW >

Typ des Scannens

Handheld

Handheld and Desktop

Technologie

Multi-line Laser Scan and Full-field Structured Light Scan

Dual-camera Infrared Structured Light and Infrared Multi-line Laser

Größe des scanbaren Objekts

Small to Medium

Einzelbildpräzision, bis zu*

0.01 mm

0.03 mm

Einzelbildgenauigkeit, bis zu*

0.02 mm

0.05 mm

Photogrammetrische Längenmessgenauigkeit

0.02 mm + 0.04 mm × L (m), L is the length of the object.

Volumetric Accuracy: 0.025 mm + 0.05 mm × L (m)L is the length of the object.

0.05 mm + 0.1 mm × L (m) , L is the length of the object. (Note: Using marker tracking mode)

Abstand der verschmolzenen Punkte, bis zu

0.05 mm

Arbeitsabstand

200 ~ 400 mm

200 ~ 400 mm (Indoor), 150 ~ 250 mm (Outdoor)

Einzelerfassungsbereich bei nächster Entfernung

152 × 138 mm at 200 mm

160 × 70 mm at 200 mm

130 × 129 mm at 200 mm

Einzelner Erfassungsbereich im weitesten Abstand

332 × 276 mm at 400 mm

320 × 215 mm at 400 mm

293 × 257 mm at 400 mm

Winkelbetrachtungsfeld, HxW

49 × 38°

43 × 33°

43 × 35°

Minimales Scanvolumen

10 × 10 × 10 mm

20 × 20 × 20 mm

Maximales Scanvolumen

1 × 1 × 1 m

2 × 2 × 2 m

Scangeschwindigkeit, bis zu

Multi-line Laser Scan: 1,700,000 Points/s, Full-field Structured Light Scan: 7,000,000 Points/s

Multi-line Laser Scan: 800,000 Points/s Full-field Structured Light Scan: 7,000,000 Points/s

Full-field Structured Light Scan: 18 fps, Multi-line Laser Scan: 30 fps

Auflösung der Tiefenkamera, bis zu

N/A

2 Megapixels

1280 × 1024

RGB-Kamera-Auflösung

2 Megapixels

1280 × 800

Farb-Scannen

Yes

Only in Auto Turntable Mode

Yes

Verfolgungmethoden

Marker, Global Marker, Feature

Feature, Marker, Global Marker

Scannen im Freien*

Yes

3D-Lichtquelle*

34 Blue Cross Laser Lines, 15 Blue Parallel Laser Lines, 1 Blue Single Laser Line, 62 Line Blue Full-field Structured Light

14 Blue Cross Laser Lines 7 Blue Parallel Laser Lines 62 Line Blue Full-field Structured Light

Class 1 Infrared Light

Infrarot-Fülllichter*

N/A

12 Blue LEDs

4 Infrared LEDs

Weiße Blitzlichter*

N/A

1 White Flash LEDs

Positionssensoren

N/A

9-axis IMU

CPU

4 core ARM, 2.0 GHz

2 core ARM, 1.6 GHz

Eingebautes Chip-Computing

Depth Computing

Depth Map Computing

Interner Speicher

N/A

Speicher (RAM)

N/A

Touchscreen-Display

N/A

Tasten

Minimale PC-Anforderungen*

macOS: CPU: M1 Pro/Max/Ultra, RAM ≥ 16GB; Windows: CPU: Intel i7 12th Gen or AMD Ryzen 7 5800, RAM ≥ 32GB, GPU (Optional): NVIDIA GeForce RTX 3050 (8GB); Note: If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.

macOS CPU: M1 Pro/Max/Ultra RAM ≥ 16GB Windows CPU: Intel i7 12th Gen 10700 or AMD Ryzen 7 5800 RAM ≥ 32GB GPU (Optional): NVIDIA GeForce RTX 3050 (8GB)

macOS CPU: M1 Pro/Max/Ultra RAM ≥ 16GB Windows CPU: Intel i7 12th Gen or AMD Ryzen 7 5800 RAM ≥ 16GB GPU (Optional): NVIDIA GeForce RTX 3050 (8GB) Note: If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.

Empfohlene PC-Anforderungen*

macOS: CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra, RAM ≥ 24GB; Windows: CPU: Intel i9 12th Gen or better, RAM ≥ 64GB, GPU: NVIDIA RTX 4060 (8 GB) or better

macOS CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra RAM ≥ 24GB Windows CPU: Intel i9 12th Gen or better RAM ≥ 64GB GPU: NVIDIA RTX 4060 (8 GB) or better

Mobile Anforderungen

N/A

① Android System Version: 9.0 or better; RAM ≥ 8 GB; Storage ≥ 128 GB ② iPhone Models after iPhone X; System Version: iOS 14.0 or better; RAM > 4 GB; Storage ≥ 64 GB ③ iPad 10th Gen iPad or later Note: Multi-line scanning mode does not support standalone mobile phone operation. It requires the scanner to connect to a PC via WiFi to work, with the screen being cast to the mobile phone in real-time. Full-field scanning mode can be used independently with a mobile phone.

Natives System

Windows 10/11 (64-bit), macOS 11.0 or better

Windows 10/11, Android, iOS, macOS 11.0 or better

Kompatible Betriebssysteme

N/A

Dateiformate zur Ausgabe

PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Druckfertige 3D-Modelle

✔

Wi-Fi

N/A

Bluetooth

N/A

4.1

Anschluss-Typ

USB Type-C to Type-C

USB Type-C

Stromversorgungsanforderungen

DC 12V, 3A

DC 5V, 1A

Batterie

N/A

Scanner Gewicht

450 g

508 g

190 g

Abmessungen (L x B x H)

211 × 94 × 47 mm

209 × 88 × 44 mm

53 × 27 × 132 mm

Scannen von Spezialobjekten

Please use scanning spray when scanning transparent or specular surfaces.

Please use scanning spray when scanning transparent or specular surfaces in Multi-Line Laser modes. Using scanning spray is recommended when scanning transparent, black, specular, or highly reflective surfaces in Full-Field Structured Light modes.

Using scanning spray is recommended when scanning transparent, specular surfaces.

Benutzer Rekalibrierung

Yes

Unterstütztes Zubehör

Marker Block Kit, Mobile Kit (3rd Gen), Dual-axis Turntable

Dual-axis Turntable, Marker Block Kit

Large Turntable, Dual-axis Turntable, Handheld Stabilizer, Power Bank, Mobile Kit

Note:

1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.

2. Outdoor scans should avoid direct sunlight.

3. Laser Safety Tips:

The Structured Light scanner uses a Class I Laser projector. Please avoid looking directly at the projector at close range for a long time! For details, please refer to the Class I Laser standard document.
The MetroX scanner uses a Class 2M Laser projector. Avoid looking directly at it at close range! Please refer to the Class 2M laser standard document for details.

① To avoid retina damage, don't look directly into the laser beam through optical instruments capable of magnifying it (e.g., telescopes, and camera lenses).

② To prevent laser reflection, avoid placing reflective surfaces like mirrors or glass in the path of the laser beam.

4. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy.

5. The MIRACO series 3D scanners require no PC when scanning. But the PC requirements above should be followed if you connect the MIRACO to Revo Scan (PC) for more operations.

6. If you're unsure about the CPU configuration required for MetroX, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.
