Overview
-
Accurate Dimension
Measurement -
GD&T Analysis -
Model
Deviation Analysis -
Section Creation
and Measurement -
Support for Multiple
Data Formats: PLY, OBJ, STL, and PTS -
Measurement
Report Export -
User-friendly
Interface -
Texture Mapping
Visualization
Powerful Tools
for Accurate Measurement
Revopoint Measure is professional 3D metrology software that evaluates shape, dimensions, and quality by comparing point cloud or mesh data to CAD models or drawings. Seamless one-click integration with Revo Scan ensures a smooth and efficient quality control workflow.
*Supports Chinese, Traditional Chinese, Japanese, Korean, English, French, German, Italian, Spanish, Russian, Portuguese, and Turkish.

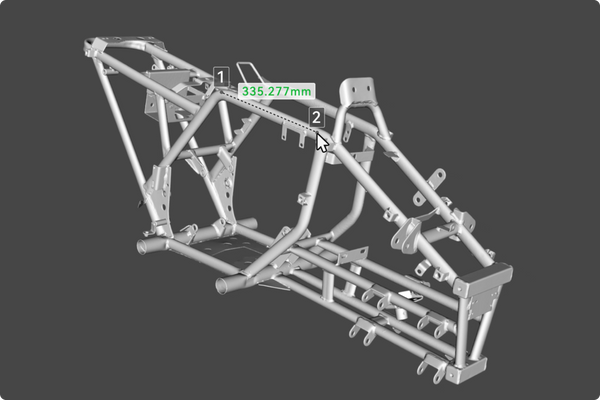

Accurate Dimension Measurement
Accurately extract key parameters, such as dimensions, angles, and volume, through high-precision measurement of point clouds and meshes.

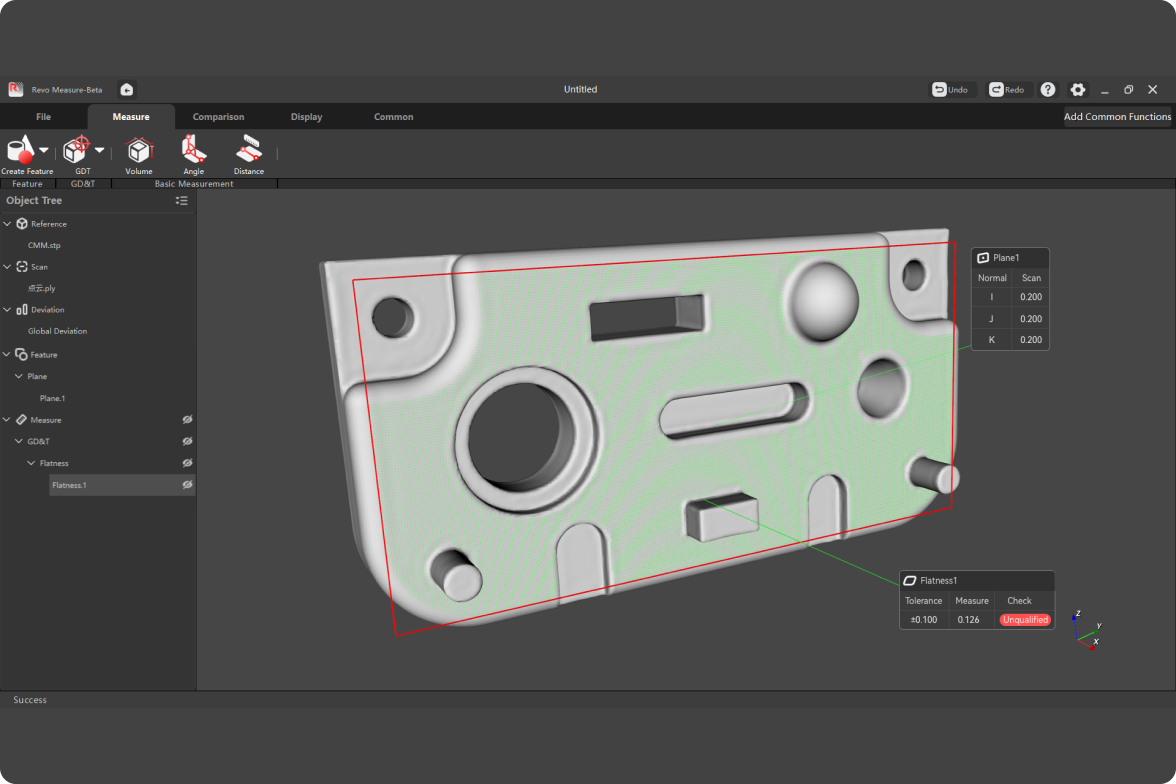

GD&T Analysis
Perform design verification and ensure assembly accuracy with comprehensive Geometric Dimensioning and Tolerancing (GD&T) tools for evaluating form and geometric tolerances.
Intelligent Deviation Analysis
Quickly identify machining deviations or assembly issues using detailed color maps that highlight overall or localized errors. Supports importing STP files for rapid comparison and deviation analysis between scanned and CAD models.

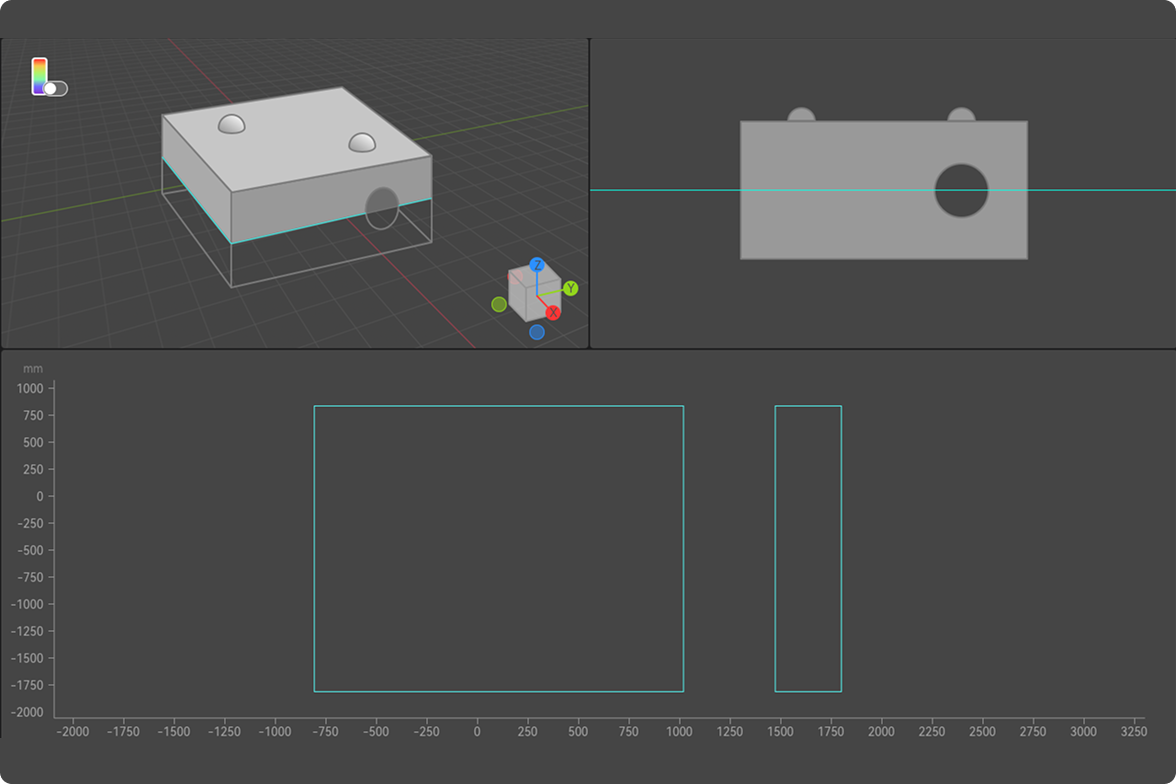

Section Creation and Measurement (Coming Soon)
Easily analyze complex internal structures by measuring dimensions, angles, and key data through quick, interactive cross-sections of models.
Support for Multiple Data Formats

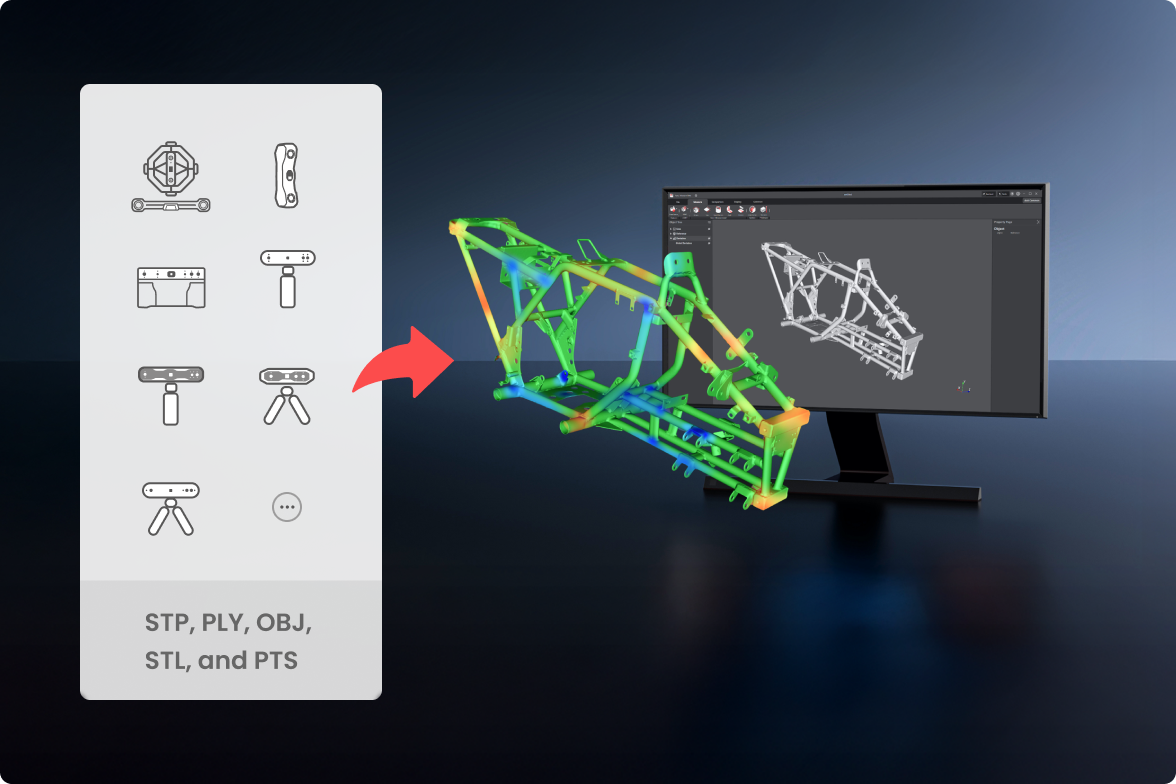

Works seamlessly with all Revopoint scanners and supports importing CAD models, point clouds, and mesh files in major formats like STP, PLY, OBJ, STL, and PTS, ensuring broad compatibility.
Measurement Export Reports

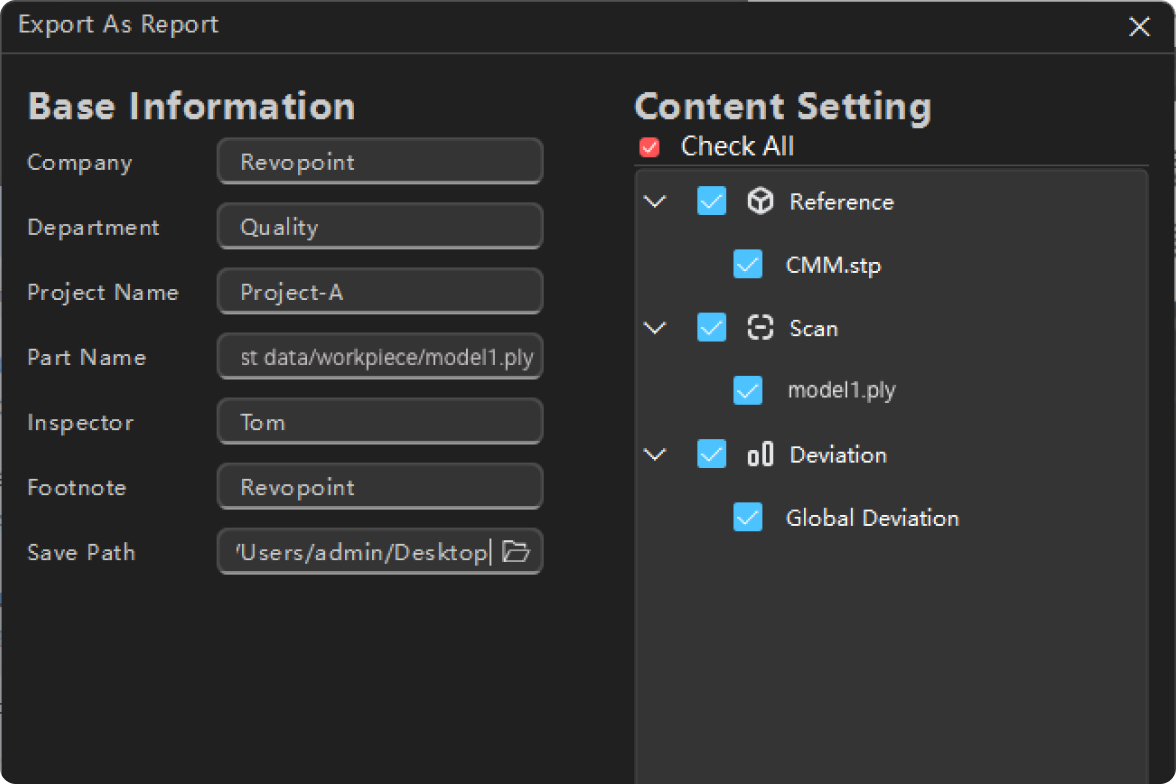

Easily present and keep records with standardized PDF reports that export measurement data, deviation analysis graphs, and color maps.

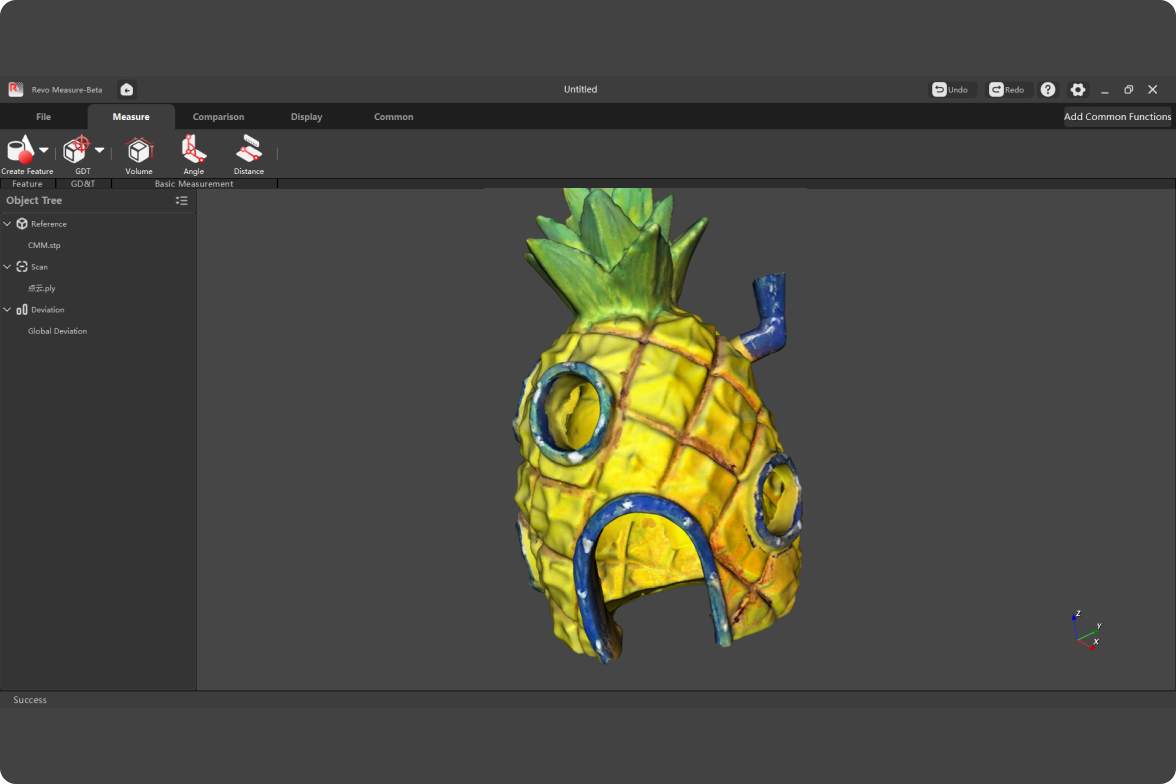

Texture Mapping Visualization
Enhance measurement accuracy and presentations with color-mapping data captured during the scan, making it easier to interpret and visualize details.

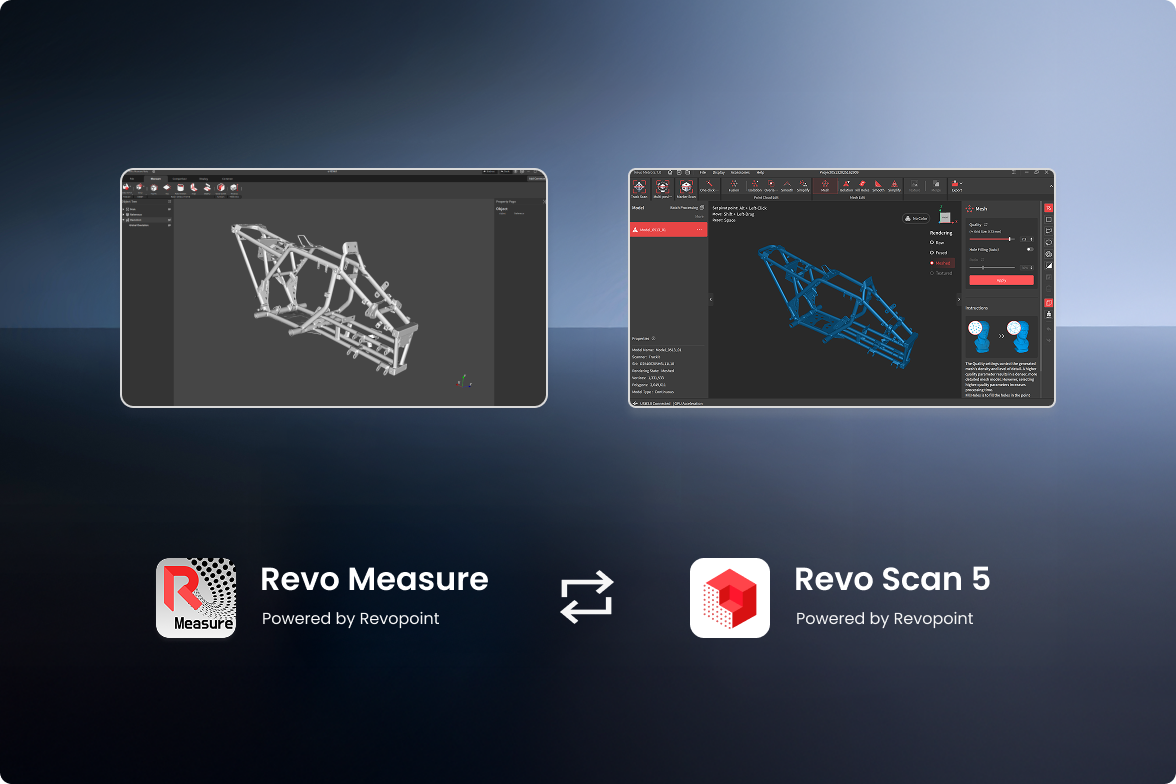

Compatible with Revo Scan Software

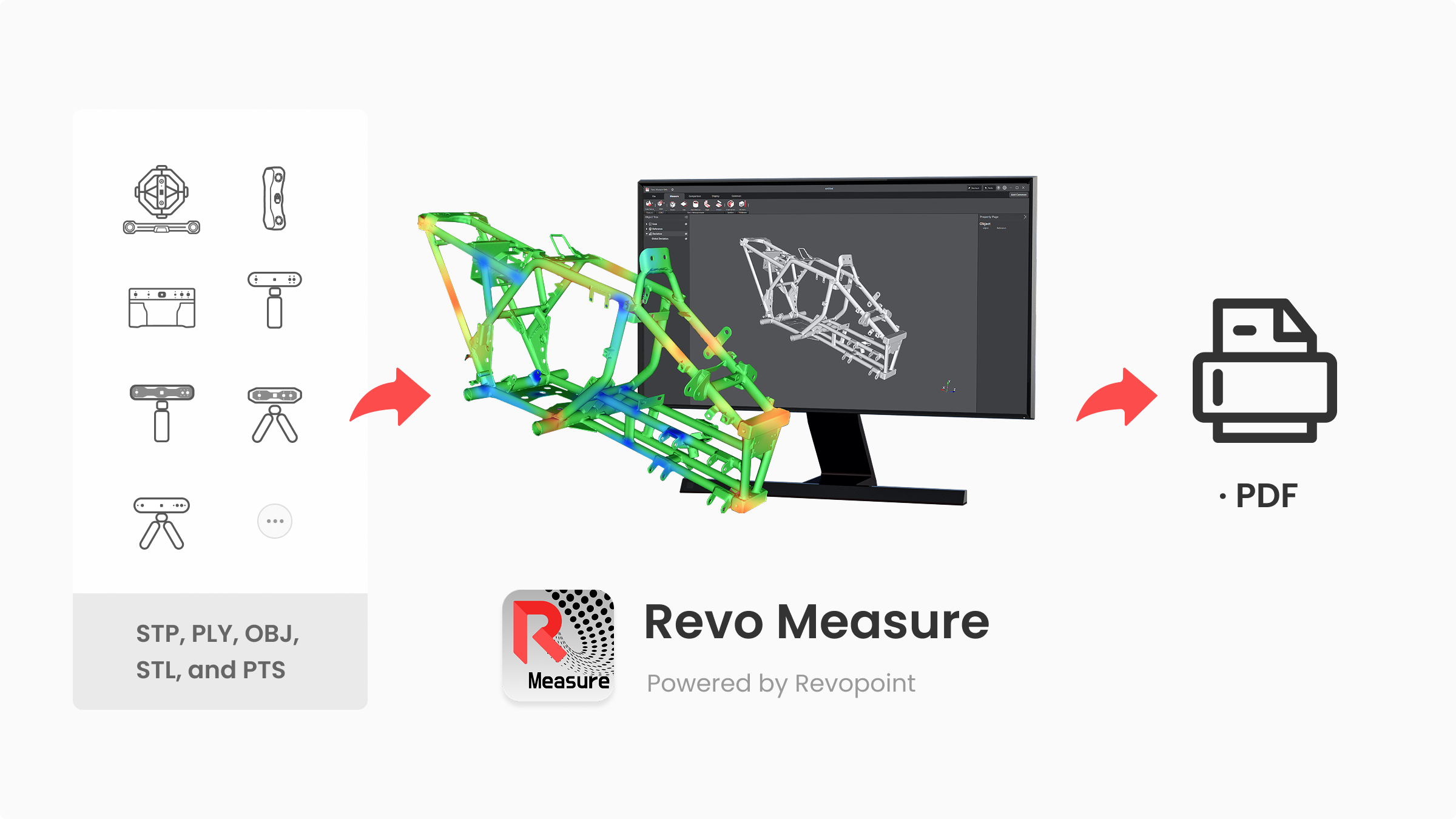

Seamlessly import point clouds and meshes created in all Revopoint scanning software into Revo Measure for an integrated workflow.
SDK Based Customization (Coming Soon)
Meet personalized measurement and analysis needs by creating custom software modules, algorithms, or functions within the SDK and integrating them into Revo Measure as plugins.
Key Features
|
Features
|
Functions
|
|---|---|
|
Import Scan Data
|
Point Clouds: PLY, PTS, XYZ
Meshes: STL, OBJ, PLY |
|
Import Reference Data
|
CAD: STP, STEP
Meshes: STL, OBJ, PLY |
|
Open Projects
|
√
|
|
Export Reports
|
PDF
|
|
Align CAD and Scan Data
|
Automatic Alignment
Multi-Point Alignment
|
|
6 Geometric Feature Tools
|
Plane
Circle
Sphere
Cylinder
Point
Line
|
|
Creation Tools
|
Smart Fit Creation
Create from CAD
Fit by Selected Points
Create from Input Coordinates
Create from Auxiliary Objects
|
|
Create Datums
|
A–Z (26 Letters)
|
|
11 GD&T Tools
|
Straightness
Flatness
Circularity
Cylindricity
Concentricity
True Position
Parallelism
Perpendicularity
Angularity
Circular Runout
Total Runout
|
|
5 Distance Measurement Tools
|
Point to Point
Point to Line
Line to Line
Line to Plane
Plane to Plane
|
|
3 Angle Measurement Tools
|
Line to Line
Line to Plane
Plane to Plane
|
|
Volume Measurement Tool
|
Total Model Volume
|
|
Overall Deviation Analysis
|
Deviation Maps
|
|
Point Deviation Analysis
|
√
|
|
Mesh Visualizations
|
Wireframe
Mesh
Vertex
|
|
CAD Visualizations
|
Solid
Wireframe
Solid Wireframe
|
|
Texture Rendering
|
√
|
|
Fit to View
|
√
|
|
Add to Favorites
|
√
|
|
Model Color Settings
|
√
|
From Scanning to 3D Measurement

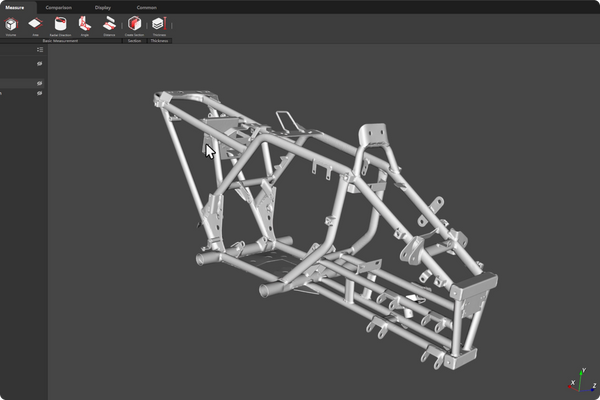

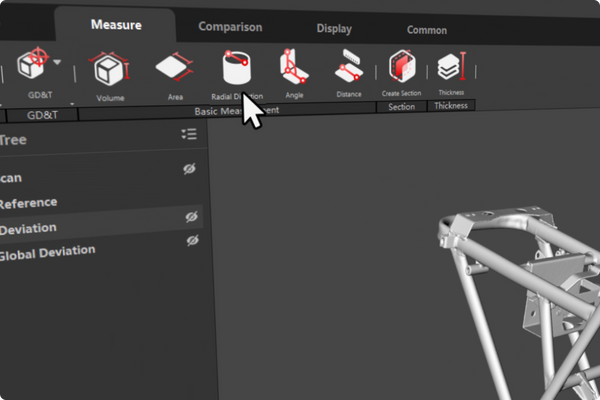

Step 1: Capture and Import to Revo Measure

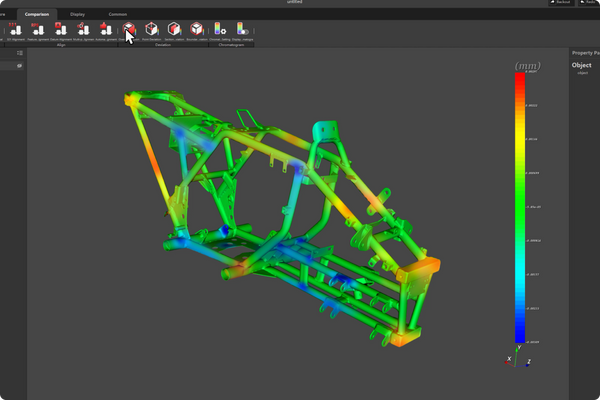

Step 2: Perform CAD Model Comparison and Error Analysis

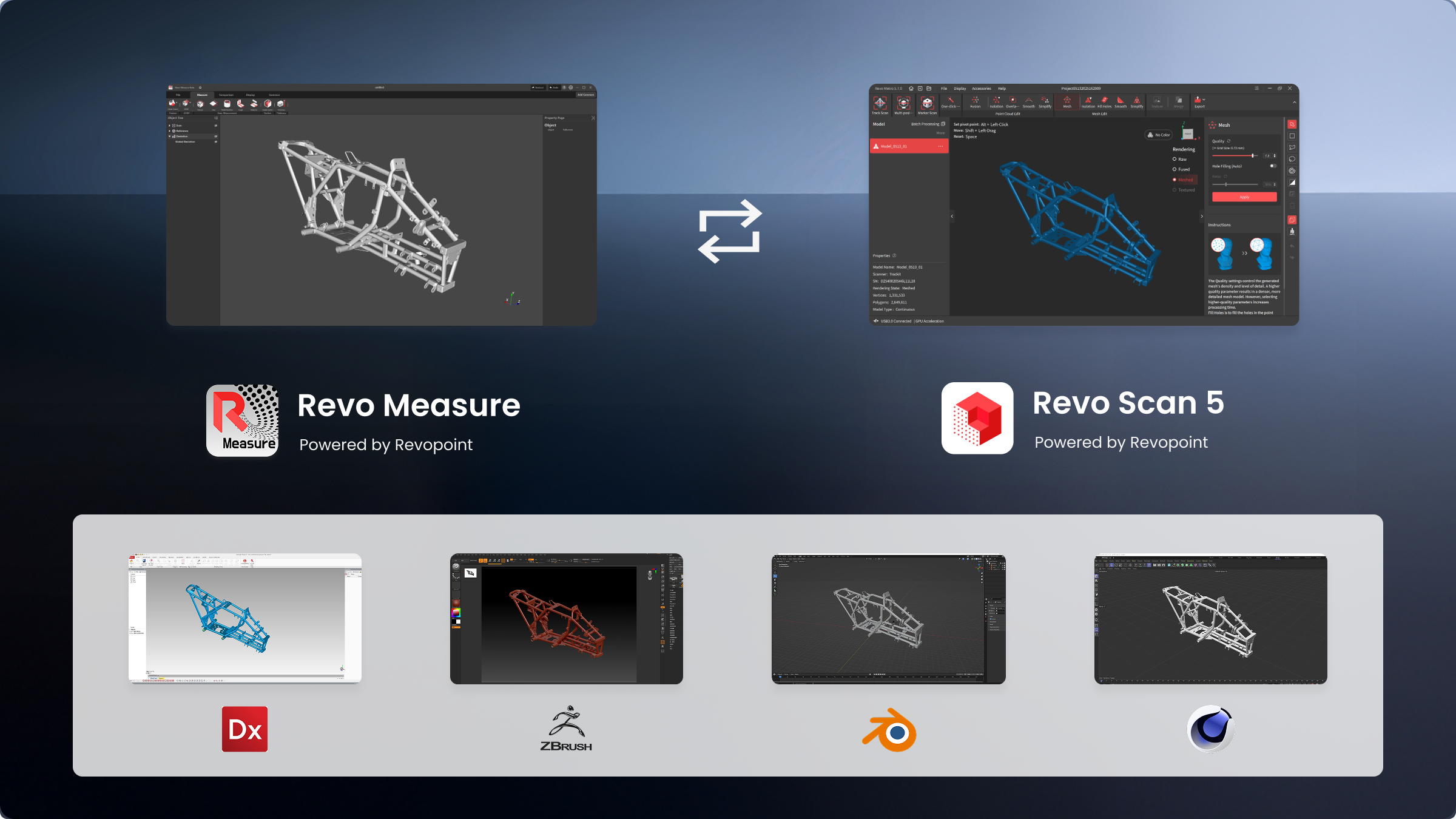

Step 3: Export the Report
24/7 Customer Services
Supports 12 Languages
Export Formats: STL, OBJ, PLY, FBL, 3MF, GLTF
FAQ
What languages does Revo Measure support?
It supports Chinese, Traditional Chinese, Japanese, Korean, English, French, German, Italian, Spanish, Russian, Portuguese, and Turkish.
How is the product delivered?
The software is delivered electronically, and no physical item is shipped. You will receive a license key to activate Revo Measure. Once activated, the software cannot be returned or refunded.
How long will it take to get the product after ordering?
We will email the license key to your address within three business days of placing your order.
What are Revo Measure's system requirements?
Minimum Requirements:
Laptop or PC with Windows 10/11 (64-bit version)
CPU:Cores ≥ 8,Threads ≥ 16,and a Base Frequency ≥ 2.4 GHz
RAM ≥ 32 GB
CPU: Intel i7 12th or AMD Ryzen 75800
GPU: NVIDIA GeForce RTX 3050 (8GB)
Recommended: Internet connection to get the latest updates and for activation (Optional)
What formats does Revo Measure support for import and export?
(1) Import Formats
Point Cloud Model:ply, pts, xyz, csv,asc, txt (Subsequent Support)
Mesh Model: stl, obj, ply
CAD Model: stp
(2) Export Formats
Measurement Report: *.pdf
Does Revo Measure need to be used with a Revopoint scanner? Can data from other devices be imported?
No, Revo Measure can also work with data from other 3D scanners. The software supports importing point cloud and mesh model measurements in .ply format. However, with a Revopoint scanner, you can quickly start measurements with just one click and keep the color mapping information.
How are Revo Measure's measurement results saved and shared?
Export measurement data, deviation analysis graphs, and color maps as standardized PDF reports for easy presentation and record-keeping.
